- Amine Breakthrough Volumes for Adsorbent Resins (This Page)

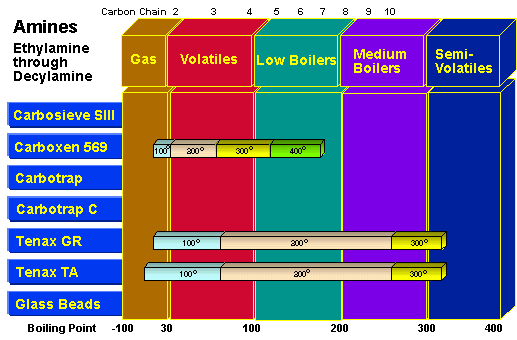

The above chart demonstrates the useful range of the adsorbent resins for a range of amines via purge and trap thermal desorption techniques. The numbers at the top of the chart indicate the number of carbons in straight chain amine (i.e. Ethylamine = 2, decylamine = 10). The numbers at the bottom of the chart indicate the boiling point range of the straight chain aldehydes. The bars in the chart indicate the useful range of amines that can be analyzed with the resin. The different colored bars indicate the desorption temperature required to desorb the amine off the particular resin. From this chart you can easily select the best resin for an application. For example Carboxen 569 is excellent for straight chain amines ethylamine through pentylamine. Tenax® TA can be used for a wide range of amines from Propylamine through decylamine
Amine Breakthrough Volumes for Adsorbent Resins
| Amines with ... |
Use of Breakthrough Volume Data
In the following chart, the Breakthrough Volume data is expressed in Liters per gram of resin. This is the volume of gas required to elute the organic compound off 1.0 gram of resin at the indicated temperature. The Blue highlighted areas indicate that the Breakthrough Volume is greater than 10 liters per gram of resin which is an acceptable value for the trapping of the organic compound at that temperature. The Red highlighted areas indicate that the Breakthrough Volume is less than 0.010 Liters per gram of resin or less than 10 ml/gram of resin. This is a good temperature to assure complete desorption of the organic compound off the adsorbent resin during the thermal desorption process.

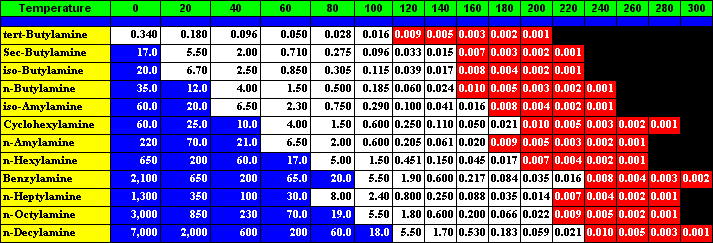

Tenax® TA with Amines
Tenax® GR with Amines

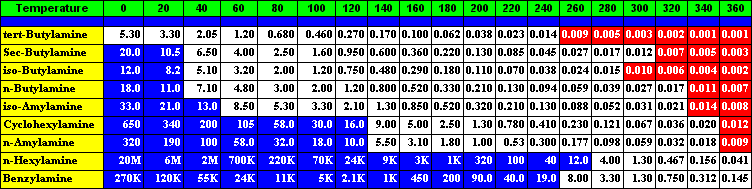

Carboxen 569 with Amines
Tenax® is a registered trademark of Buchem BV.
