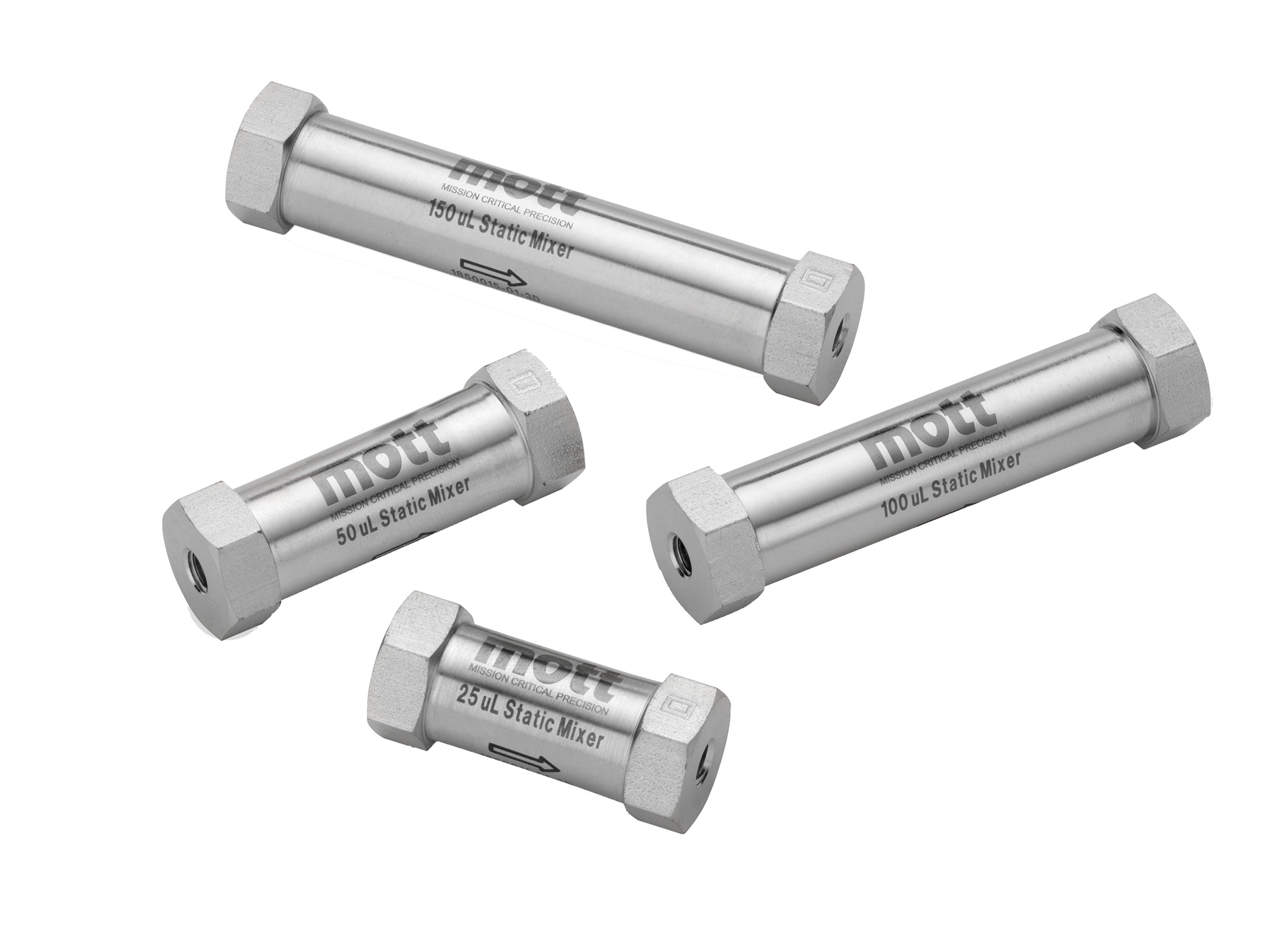

HPLC Static Mixers
Description
PerfectPeak® HPLC Static Mixers utilize cutting edge 3D printing technology to create unique mixing pathways and provide key benefits such as:
- Significant baseline noise reduction
- Compatibility with a wide range of flow rates
- Quick installation into any HPLC system
Product Specs
| Mixer25 | Mixer50 | Mixer100 | Mixer150 | |
|---|---|---|---|---|
| Internal Volume | 25μL | 50μL | 100μL | 150μL |
| Material of Construction | Passivated 316(L)SS | |||
| Pressure Rating | 20,000 PSIG/1379 bar | |||
| Connection Type | Female Compression | |||
| Connection Size | 1/16"/1.59mm Tube | |||
| Custom connections are available upon request | ||||
HPLC/UHPLC Static Mixers
Description
Available in 25, 50, 100, and 150 μL versions. PerfectPeak® HPLC Static Mixers utilize unique mixing pathways and provide key benefits such as:
- Significant baseline noise reduction
- Less dwell volume than comparable mixers
- Compatibility with a wide range of flow rates
- Quick installation into any HPLC system
Baseline Noise
Product Specs
| Mixer25 | Mixer50 | Mixer100 | Mixer150 | |
|---|---|---|---|---|
| Internal Volume | 25μL | 50μL | 100μL | 150μL |
| Material of Construction | Passivated 316(L)SS | |||
| Pressure Rating | 20,000 PSIG/1379 bar | |||
| Connection Type | Female Compression | |||
| Connection Size | 1/16"/1.59mm Tube | |||
| Custom connections are available upon request | ||||
| Part No. | Description | Quantity In Stock |
Price EA |
Order |
|---|---|---|---|---|
| 1850011013D | STATIC MIXER 25UL MOTT STATIC MIXER 25 UL 316 SS | DISCONTINUED | --- | --- |
| 1850012013D | STATIC MIXER 50 UL MOTT STATIC MIXER 50 UL MOTT 316 SS | DISCONTINUED | --- | --- |
| 1850014013D | STATIC MIXER 100UL MOTT STATIC MIXER 100 UL MOTT 316 SS | DISCONTINUED | --- | --- |
| 1850015013D | STATIC MIXER 150UL MOTT STATIC MIXER 150 UL MOTT 316 SS | DISCONTINUED | --- | --- |
| * Call for availability. | ||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||
