SGE offers a comprehensive range of septa materials and sizes to suit the largest range of GC types and models. All septa are pre-conditioned, bleed checked and packaged ready for immediate use.
Agilent Various GC septa by SGE for Agilent.
Perkin Elmer Various GC septa by SGE for PE.
Varian GC septa by SGE for Varian.
Thermo Various GC septa by SGE for Thermo.
| Name | Description | Material | Max Temp | Image |
|---|---|---|---|---|

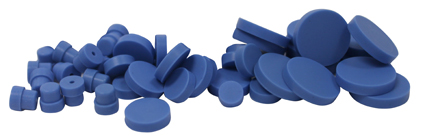

| GP | General purpose septa are designed for non-demanding, routine applications | Silicone | 200 °C |  |

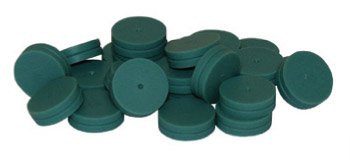

| EC | Combines significantly longer injection life, low bleed and low injection port adhesion | High temperature silicone | 400 °C, 330 °C for 17mm size |  |
| MN | Premium septum for autosamplers with up to 400 injections per septum | High temperature silicone | 320 °C |  |

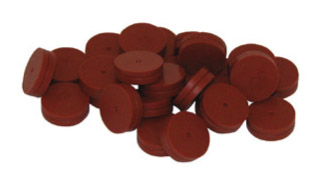

| HT | Bleed and temperature optimized, combined with outstanding mechanical properties for the highest temperature applications. Retains softness and pierceability at high temperatures and low injection port adhesion. | BTO silicone | 350 °C |  |
| Enduro™ Blue Septa | For Shimadzu GC's | High temperature silicone | 350 °C |  |
