Description

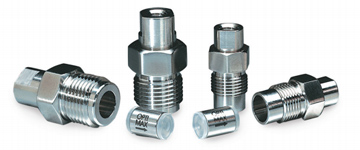

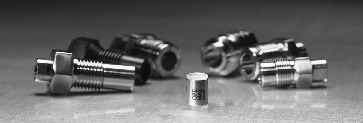

The check valve is a critical pump head component, and is instrumental in the delivery of stable, pulse-free flow rates. The OPTIMAX® Cartridge Check Valve System was designed to offer superior performance and versatility, and is manufactured to the tightest specifications in the industry. One OPTI-MAX replacement cartridge will fit multiple brands of pumps, and can be used in both inlet and outlet OPTI-MAX housings. Housings are available for all major HPLC pump brands.OPTI-MAX Cartridges
A single OPTI-MAX cartridge is interchangeable across multiple pump brands, and will function in either the inlet or outlet position. The same cartridge will fit into pumps made by Shimadzu, Waters, Hitachi, and most other OEM solvent delivery systems, allowing you to minimize the number of spare check valve cartridges in your inventory. OPTI-MAX Cartridges are available in PEEK or stainless steel, loaded with precision-matched ball and seat sets in ceramic or ruby/sapphire.Three ball/seat sizes are available, providing optimal performance for microbore, standard and extended flow applications.The performance of a check valve can only be as good as the integrity of the seal made between the ball and seat inside it. All ball and seat sets used in OPTI-MAX cartridges are precision-matched to the most exacting standards in the industry, and must pass Nitrogen leak tests four times more stringent than those specified by most other manufacturers.
OPTlMAX® cartridges are now available with both ruby/sapphire and ceramic ball and seat. Ceramic is 50% greater in density than the ruby ball commonly used. The heavier ball should seat faster, improving performance in some applications.
PEEK and Stainless Steel cartridges are available in standard, low flow
rate and higher flow rate versions.
| Part No. | Description | Quantity In Stock |
UOM | Price | Order |
|---|---|---|---|---|---|
| 104602004 | OPTI-MAX MICROBORE 1/16IN DIAMETER CERAMIC BALL & SEAT, SS REPLACEMENT CARTRIDGE, 2/PK; FITS XX-46-XXXXX & XX-56-XXXXX | DISCONTINUED | PK | --- | --- |
| 104802004 | OPTI-MAX MICROBORE 1/16IN DIAMETER CERAMIC BALL & SEAT, PEEK REPLACEMENT CARTRIDGE, 2/PK; FITS XX-48-XXXXX & XX-58-XXXXX | DISCONTINUED | PK | --- | --- |
| 105602004 | OPTI-MAX STANDARD 1/8IN DIAMETER CERAMIC BALL & SEAT, SS REPLACEMENT CARTRIDGE, 2/PK; FITS XX-46-XXXXX & XX-56-XXXXX | DISCONTINUED | PK | --- | --- |
| 105802004 | OPTI-MAX STANDARD 1/8IN DIAMETER CERAMIC BALL & SEAT, PEEK REPLACEMENT CARTRIDGE, 2/PK; FITS XX-48-XXXXX XX-58-XXXXX | DISCONTINUED | PK | --- | --- |
| 106602005 | OPTI-MAX EXTENDED FLOW 3/16IN DIAMETER CERAMIC BALL & SEAT, SS REPLACEMENT CARTRIDGE,; 2/PK FITS XX-66-XXXXX OPTI-MAX | DISCONTINUED | PK | --- | --- |
| 107702004 | OPTI-MAX EXP SINGLE BALL UPGRADE FOR UHPLC PRESSURES (20,000 PSI+) 1/16IN SINGLE RUBY; BALL & SAPPHIRE SEAT, SS REPLACEMENT CARTRIDGE, FITS ALL; OPTI-MAX HOUSINGS (EXCEPT | DISCONTINUED | PK | --- | --- |
| 215600451 | OPTI-MAX Inlet check valve for ABI/Kratos Spectraflow 400 | DISCONTINUED | EA | --- | --- |
| 215600460 | OPTI-MAX Outlet check valve for ABI/Kratos Spectraflow 400 | DISCONTINUED | EA | --- | --- |
| 226600516 | OPTI-MAX Inlet check valve for Beckman/Altex models 100,110,112,114,116,126,128 | DISCONTINUED | EA | --- | --- |
| 226600520 | OPTI-MAX Outlet check valve for Beckman/Altex models 100,110,112,114,116,126,128 | DISCONTINUED | EA | --- | --- |
| 244600585 | OPTI-MAX INLET CARTRIDGE CHECK VALVE, 1/16IN CERAMIC BALL & SEAT, SS CARTRIDGE,; (MICROBORE TYPE) BISCHOFF 2200, ANSPEC SM909 | DISCONTINUED | EA | --- | --- |
| 244600589 | OPTI-MAX OUTLET CARTRIDGE CHECK VALVE, 1/16 CERAMIC BALL & SEAT, SS CARTRIDGE, (MICROBORE; TYPE) BISCHOFF 2200, ANSPEC SM909 | DISCONTINUED | EA | --- | --- |
| 245600576 | OPTI-MAX Inlet check valve for Bischoff/Anspec, Alcott models Micromeritics 760, (Analytical), 2200,SM909 | DISCONTINUED | EA | --- | --- |
| 245600581 | OPTI-MAX Outlet check valve for Bischoff/Anspec, Alcott models Micromeritics 760, (Analytical), 2200,SM909 | DISCONTINUED | EA | --- | --- |
| 255800612 | OPTI-MAX Outlet check valve for Dionex DX 500 (GP40/IP20) Analytical | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | EA | $252.26 | |
| 255800613 | OPTI-MAX Inlet check valve for Dionex DX 500 (GP40/IP20) Analytical | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | EA | $252.26 | |
| 265600638 | OPTI-MAX Inlet check valve for Rainin models HP, HPX, HPXL, SD200/300 | DISCONTINUED | EA | --- | --- |
| 265600647 | OPTI-MAX Outlet check valve for Rainin models HP, HPX, HPXL, SD200/300 | DISCONTINUED | EA | --- | --- |
| 274601330 | OPTI-MAX OUTLET CARTRIDGE CHECK VALVE, 1/16IN CERAMIC BALL & SEAT, SS CARTRIDGE,; HP/AGILENT 1050, 1100, 1200 LOW FLOW RATE | DISCONTINUED | EA | --- | --- |
| 275601330 | OPTI-MAX Outlet check valve for Agilent Technologies 1100 / 1050 | DISCONTINUED | EA | --- | --- |
| 284600703 | OPTI-MAX Inlet check valve for Hitachi 655 and L-6X00 | DISCONTINUED | EA | --- | --- |
| 284600712 | OPTI-MAX Outlet check valve for Hitachi 655 and L-6X00 | DISCONTINUED | EA | --- | --- |
| 284602092 | OPTI-MAX Inlet check valve for Hitachi L-7100 | DISCONTINUED | EA | --- | --- |
| 284602094 | OPTI-MAX Outlet check valve for Hitachi L-7100 | DISCONTINUED | EA | --- | --- |
| 315600759 | OPTI-MAX Inlet check valve for ThermoSep LDC MiniMetric,Constametric, MiniPump | DISCONTINUED | EA | --- | --- |
| 315600764 | OPTI-MAX Outlet check valve for ThermoSep LDC MiniMetric,Constametric, MiniPump | DISCONTINUED | EA | --- | --- |
| 324600782 | OPTI-MAX INLET CARTRIDGE CHECK VALVE, 1/16IN CERAMIC BALL & SEAT, SS CARTRIDGE, LKB 2150,; 2248 OEM#80-1035-19 | DISCONTINUED | EA | --- | --- |
| 324600787 | OPTI-MAX OUTLET CARTRIDGE CHECK VALVE, 1/16IN CERAMIC BALL & SEAT, SS CARTRIDGE, LKB 2150,; 2248 OEM#80-1035-20, 2510-300 | DISCONTINUED | EA | --- | --- |
| 335600830 | OPTI-MAX INLET CARTRIDGE CHECK VALVE, 1/8IN CERAMIC BALL & SEAT, SS CARTRIDGE,; PERKIN-ELMER MODEL 250, SERIES 4, 200, 400 | DISCONTINUED | EA | --- | --- |
| 335600835 | OPTI-MAX OUTLET CARTRIDGE CHECK VALVE, 1/8IN CERAMIC BALL & SEAT, SS CARTRIDGE,; PERKIN-ELMER MODEL 250, SERIES 4, 200, 400 | DISCONTINUED | EA | --- | --- |
| 344600885 | OPTI-MAX Inlet check valve for Shimadzu LC-10AD, LC-600/LC-9A | DISCONTINUED | EA | --- | --- |
| 344600893 | OPTI-MAX Outlet check valve for Shimadzu LC-10AD, LC-600/LC-9A, LC-10AT | DISCONTINUED | EA | --- | --- |
| 344601983 | OPTI-MAX Inlet check valve for Shimadzu LC-10AT | DISCONTINUED | EA | --- | --- |
| 344602644 | OPTI-MAX INLET CARTRIDGE CHECK VALVE, 1/16IN CERAMIC BALL & SEAT, SS CARTRIDGE, SHIMADZU; LC-10ADVP, ESA 582 & 584 | DISCONTINUED | EA | --- | --- |
| 345600902 | OPTI-MAX Inlet check valve for Shimadzu LC-10AS, LC-6A | DISCONTINUED | EA | --- | --- |
| 345600907 | OPTI-MAX Outlet check valve for Shimadzu LC-10AS, LC-6A, LC-8A | DISCONTINUED | EA | --- | --- |
| 346602112 | OPTI-MAX Inlet check valve for Shimadzu LC-8A | DISCONTINUED | EA | --- | --- |
| 355600956 | OPTI-MAX INLET CARTRIDGE CHECK VALVE, 1/8IN CERAMIC BALL & SEAT,SS CARTRIDGE, SPECTRA; PHYSICS 8700, 8800, 8810, ISOCHROM | DISCONTINUED | EA | --- | --- |
| 355600961 | OPTI-MAX Outlet check valve for ThermoSep SpectraPhysics 8700, 8800, 8810, IsoChrom | DISCONTINUED | EA | --- | --- |
| 385601038 | OPTI-MAX INLET CARTRIDGE CHECK VALVE, 1/8IN CERAMIC BALL & SEAT,SS CARTRIDGE, VARIAN 2010; OEM#00-997261-09 | DISCONTINUED | EA | --- | --- |
| 385601043 | OPTI-MAX OUTLET CARTRIDGE CHECK VALVE, 1/8IN CERAMIC BALL & SEAT, SS CARTRIDGE, VARIAN 2010; OEM#00-997261-10 | DISCONTINUED | EA | --- | --- |
| 385601067 | OPTI-MAX Outlet check valve for Varian9000 Star, 9010 | DISCONTINUED | EA | --- | --- |
| 385601544 | OPTI-MAX INLET CARTRIDGE CHECK VALVE, 1/8IN CERAMIC BALL & SEAT, SS CARTRIDGE, VARIAN; 2510 OEM#00-997554-19 | DISCONTINUED | EA | --- | --- |
| 385601546 | OPTI-MAX OUTLET CARTRIDGE CHECK VALVE, 1/8IN CERAMIC BALL & SEAT, SS CARTRIDGE, VARIAN 2510; OEM#00-997554-18 | DISCONTINUED | EA | --- | --- |
| 394601949 | OPTI-MAX Inlet check valve for Waters 616 | DISCONTINUED | EA | --- | --- |
| 394601950 | OPTI-MAX Outlet check valve for Waters 616 | DISCONTINUED | EA | --- | --- |
| 394801907 | OPTI-MAX Inlet check valve for Waters 625 / 626 | DISCONTINUED | EA | --- | --- |
| 394801909 | OPTI-MAX Outlet check valve for Waters 625 / 626 | DISCONTINUED | EA | --- | --- |
| 395601251 | OPTI-MAX Inlet check valve for Waters M45/45G, M501, 510, 515, 600/600E, 610, and 6K/6KA | DISCONTINUED | EA | --- | --- |
| 395601256 | OPTI-MAX Outlet check valve for Waters M45/45G, M501, 510, 515, 600/600E, 610, and 6K/6KA | DISCONTINUED | EA | --- | --- |
| 396601267 | OPTI-MAX EF OUTLET CARTRIDGE CHECK VALVE 3/16IN CERAMIC BALL & SEAT, SS CARTRIDGE,; WATERS 400 UL (#4) & 900 UL (#6) | DISCONTINUED | EA | --- | --- |
| 396601262 | OPTI-MAX Inlet check valve for Waters 510, 590, 600/600E, 610, 650, and 6K/6KA | DISCONTINUED | EA | --- | --- |
| 396602167 | OPTI-MAX Outlet check valve for Waters Delta PrepT, 3000, 600/600E, and 650 | DISCONTINUED | EA | --- | --- |
| 425601043 | OPTI-MAX OUTLET CARTRIDGE CHECK VALVE, 1/8IN CERAMIC BALL & SEAT, SS CARTRIDGE, JASCO; BIP-1 OEM#6260-H102A | DISCONTINUED | EA | --- | --- |
| 425601546 | OPTI-MAX OUTLET CARTRIDGE CHECK VALVE, 1/8IN CERAMIC BALL & SEAT, SS CARTRIDGE, JASCO; 880/980 SERIES, 1580 , 2080 , 2086 | DISCONTINUED | EA | --- | --- |
| 425701038 | OPTI-MAX INLET CARTRIDGE CHECK VALVE, 1/8IN RUBY BALL/ SAPPHIRE SEAT, SS CARTRIDGE, JASCO; BIP-1 OEM#6260-H101A | DISCONTINUED | EA | --- | --- |
| 444600451 | OPTI-MAX INLET CARTRIDGE CHECK VALVE, 1/16IN CERAMIC BALL & SEAT, SS CARTRIDGE, GYNKOTEK; 300 AND M480 SERIES OEM#5005-3200 | DISCONTINUED | EA | --- | --- |
| 444600460 | OPTI-MAX OUTLET CARTRIDGE CHECK VALVE, 1/16IN CERAMIC BALL & SEAT, SS CARTRIDGE, GYNKOTEK; 300 AND M480 SERIES OEM#5005-3100 | DISCONTINUED | EA | --- | --- |
| 363803241 | CHECK VALVE, DOUBLE BALL & SEAT, MICHROM/BRUKER AND SSI | DISCONTINUED | EA | --- | --- |
|
* Call for availability. † Standard lead-time for non-stock items is approximately two weeks depending on the item. | |||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
|||||
