Gauge Tubes and Controllers
DigiVac Bench Top Vacuum Gauges Rugged bench top vacuum gauge that provides years of valuable service.
Bullseye Precision Gauge-DigiVac A rugged, portable vacuum measurement instrument designed specifically for the demands of field use. Also available with Bluetooth technology.

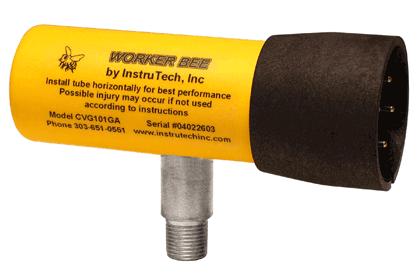

Instrutech CVG Worker Bee Vacuum Gauge and Controller
Instrutech VGC-301 Controller Vacuum Gauge Controller

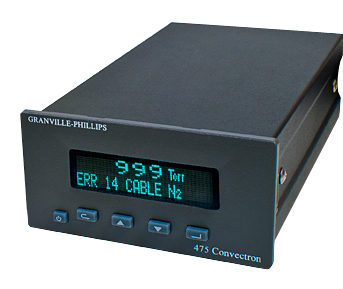

Granville-Phillips Model 475 Convectron Controller Granville - Phillips Model 475 for accurate low vacuum measurement
Granville Phillips - Controller Granville-Phillips 340 Vacuum Gauge Controller (VGC) measures pressure from less than 1 x 10-9 Torr to atmosphere, utilizing an ionization gauge and two Convectron gauges.
Bayard Alpert - Controller The Granville-Phillips Model 330 Ionization Gauge Controller is reliable, easy to operate, easy to service and moderately priced.
STABIL-ION® Vacuum Measurement System - Granville Phillips Highest Long-Term Accuracy Vacuum Gauge from Granville Phillips and Improved Long-Term Accuracy
Agilent/HP 5971 Bayard Alpert Vacuum Measurement System The vacuum measurement system to monitor the source pressure is optional for the 5971.
Varian 300 - Digital Thermocouple gauge These controls are fully temperature compensated by use of a thermistor placed in the gauge cable socket.
Foreline Gauge Assembly Replaces Agilent/HP Part #G1099-60545.
Convectron Series 275 Vacuum Gauge The Granville Philips Convectron Gauge tube used on the 5971 and 5972 mass spectrometers is available from S.I.S. This is a direct replacement for the HP original and screws into the fitting shown above.
Ion Gauge Tubes
Tube - Bayard Alpert Bayard-Alpert Design and Dual Tungsten or Burn-out Resistant Iridium
Tube - 5 Pin In-Line Both models in this series will fit the 5 pin, .060" diameter in-line socket, 1/4" on center.
Triode & Mini Ion Gauge Tube with 90° Elbow Same as AB Sciex p/n 017355
Triode & Mini Bayard-Alpert Ion Gauge Tubes Triode and Mini Bayard Alpert style ionization gauge tubes are ideal for use in analytical instrumentation- Ion Gauge Tubes - Agilent Our standard G75K Bayard-Alpert ion gauge tube will fit all models of HP mass specs except the HP5989 MS Engine.
Micro ion gauge for the Agilent 5975/5977 Micro ion vacuum gauge (G3170-80001)
Thermocouple Gauge Tubes
Tube - Thermocouple Tube Thermocouple gauges measure pressure in terms of the amount of heat that gas will conduct away from a hot wire.
Controller - Thermocouple The 800 Series Thermocouple Vacuum Gauge Controls are used for repeatable, stable pressure measurement in the 10 -3 Torr to 2 Torr range.
Accessories
Adapter Flange Use this to adapt ion gauge tubes to a 2 3/4" Conflat flange.
PTFE Ferrules for Ion Gauge They are available in two compositions, PTFE and Glass filled PTFE.
