Hover over image to zoom
Description

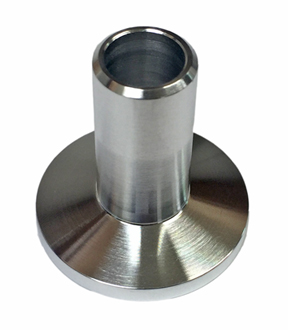

| Long Nipples-Aluminum | |||||||||
| Part No. | For NW Flange | For Hose ID (in) | A (mm) | B (mm) | C (mm) | HP # | Quantity In Stock |
Price EA |
Order |
|---|---|---|---|---|---|---|---|---|---|
| NS16075 | 16 | 3/4 | 30 | 19.05 | 30 | --- | 0*Lead time for this non-stock item is approximately 7 days. | $45.50 | |
| NS16050 | 16 | 1/2 | 30 | 12.7 | 30 | --- | 15 | $66.20 | |
| NS16025 | 16 | 1/4 | 30 | 6.35 | 30 | --- | 8 | $49.60 | |
| NS20100 | 20 | 1 | 35 | 25.4 | 40 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $35.80 | |
| NS20075 | 20 | 3/4 | 35 | 19.05 | 40 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $38.10 | |
| NS20050 | 20 | 1/2 | 35 | 12.7 | 40 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $45.05 | |
| NS25150 | 25 | 1 1/2 | 35 | 38.1 | 40 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $61.00 | |
| NS25125 | 25 | 1 1/4 | 35 | 31.7 | 40 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $67.50 | |
| NS25100 | 25 | 1 | 35 | 25.4 | 40 | --- | 8 | $34.10 | |
| NS25075 | 25 | 3/4 | 35 | 19.05 | 40 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $36.40 | |
| NS25050 | 25 | 1/2 | 35 | 12.7 | 40 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $45.00 | |
| NS25025 | 25 | 1/4 | 35 | 6.35 | 40 | 05989-20724 | 13 | $51.50 | |
| NS32150 | 32 | 1 1/2 | 40 | 38.1 | 55 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $43.90 | |
| NS32125 | 32 | 1 1/4 | 40 | 31.7 | 55 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $44.10 | |
| NS32100 | 32 | 1 | 40 | 25.4 | 55 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $50.80 | |
| NS32075 | 32 | 3/4 | 40 | 19.05 | 55 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $53.10 | |
| NS32050 | 32 | 1/2 | 40 | 12.7 | 55 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $55.40 | |
| NS40150 | 40 | 1 1/2 | 40 | 38.1 | 55 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $46.70 | |
| NS40125 | 40 | 1 1/4 | 40 | 31.7 | 55 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $44.10 | |
| NS40100 | 40 | 1 | 40 | 25.4 | 55 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $64.10 | |
| NS40075 | 40 | 3/4 | 40 | 19.05 | 55 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $66.25 | |
| NS40050 | 40 | 1/2 | 40 | 12.7 | 55 | --- | 0*Lead time for this non-stock item is approximately 7 days. | $66.25 | |
| NS50200 | 50 | 2 | 50 | 50.8 | 75 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $74.55 | |
| NS50150 | 50 | 1 1/2 | 50 | 38.1 | 75 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $77.70 | |
| NS50100 | 50 | 1 | 50 | 25.4 | 75 | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $80.85 | |
|
* Lead time for this non-stock item is approximately 7 days. † Standard lead-time for non-stock items is approximately two weeks depending on the item. | |||||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
|||||||||
