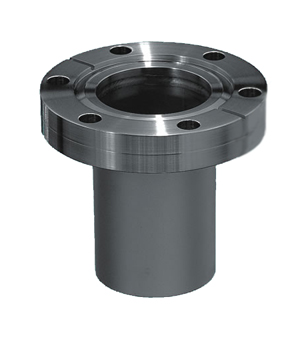

- CF Half Nipple (This Page)
Hover over image to zoom
Description
Features:
- Butt weld
- Can be used with orbital welders
- Thru holes
| CF Half Nipple | ||||||
| Part No. | Flange Size (OD) | For Tubing Size (OD) | A | B | Price EA |
Order |
|---|---|---|---|---|---|---|
| 133X075LF | 1.33 | 0.750 | 0.620 | 1.50 | $40.00 | |
| 275X150LF | 2.75 | 1.50 | 1.37 | 2.46 | $42.00 | |
| 600X400LF | 6.00 | 4.00 | 3.87 | 5.31 | $160.00 | |
| * Standard lead-time for non-stock items is approximately two weeks depending on the item. | ||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||||
