- Adaptive Centering Ring Assembly, 304 Stainless or Aluminum (This Page)
Hover over image to zoom
Description

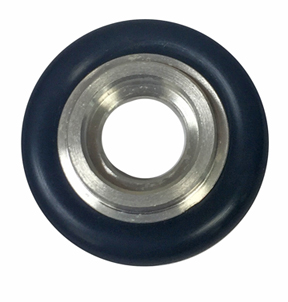

Available with Viton® or Buna O-ring,
this reducing centering ring is for joining two different size NW
flanges with a quick flange clamp.
| Adaptive Centering Ring Assembly | |||||||||
| Part No. | Material | Brand | A | B | C | NW Flange Size | Quantity In Stock |
Price EA |
Order |
|---|---|---|---|---|---|---|---|---|---|
| QF1016ASRB | 304 Stainless | Buna-N | 0.67 | 0.47 | 0.39 | 10 to 16 | 3 | $7.50 | |
| QF1016ASRV | 304 Stainless | Viton(R) | 0.67 | 0.47 | 0.39 | 10 to 16 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $9.00 | |
| QF2025ASRB | 304 Stainless | Buna-N | 1.02 | 0.87 | 0.81 | 20 to 25 | DISCONTINUED | --- | --- |
| QF2025ASRV | 304 Stainless | Viton(R) | 1.02 | 0.87 | 0.81 | 20 to 25 | DISCONTINUED | --- | --- |
| QF3240ASRB | 304 Stainless | Buna-N | 1.61 | 1.34 | 1.26 | 32 to 40 | DISCONTINUED | --- | --- |
| QF3240ASRV | 304 Stainless | Viton(R) | 1.61 | 1.34 | 1.26 | 32 to 40 | 1 | $20.00 | |
| QF1016AARB | Aluminum | Buna-N | 0.67 | 0.47 | 0.39 | 10 to 16 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $5.00 | |
| QF1016AARV | Aluminum | Viton(R) | 0.67 | 0.47 | 0.39 | 10 to 16 | DISCONTINUED | --- | --- |
| QF2025AARB | Aluminum | Buna-N | 1.02 | 0.87 | 0.81 | 20 to 25 | DISCONTINUED | --- | --- |
| QF2025AARV | Aluminum | Viton(R) | 1.02 | 0.87 | 0.81 | 20 to 25 | DISCONTINUED | --- | --- |
| QF3240AARB | Aluminum | Buna-N | 1.61 | 1.34 | 1.26 | 32 to 40 | DISCONTINUED | --- | --- |
| QF3240AARV | Aluminum | Viton(R) | 1.61 | 1.34 | 1.26 | 32 to 40 | DISCONTINUED | --- | --- |
|
* Standard lead-time for non-stock items is approximately two weeks depending on the item. † Call for availability. | |||||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
|||||||||
Viton® is a registered trademark of DuPont Dow Elastomers.
