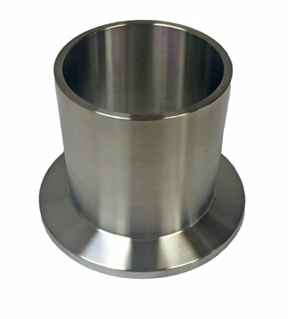

- Long Butt Flange, 304 Stainless or Aluminum (This Page)
Hover over image to zoom
Description
For use as a vacuum hose connection or for welding custom fittings.
| Long Butt Flange, C=1.58 | ||||||||
| Part No. | Material | Tube Size | A | B | NW Flange Size | Quantity In Stock |
Price EA |
Order |
|---|---|---|---|---|---|---|---|---|
| QF10050LF | 304 Stainless | 1/2 | 0.50 | 0.07 | 10 | DISCONTINUED | --- | --- |
| QF16050LF | 304 Stainless | 1/2 | 0.50 | 0.07 | 16 | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $14.50 | |
| QF16075LF | 304 Stainless | 3/4 | 0.75 | 0.07 | 16 | DISCONTINUED | --- | --- |
| QF25100LF | 304 Stainless | 1 | 1.00 | 0.07 | 25 | 4 | $17.50 | |
| QF40150LF | 304 Stainless | 1 1/2 | 1.50 | 0.08 | 40 | 9 | $19.00 | |
| QF50200LF | 304 Stainless | 2 | 2.00 | 0.08 | 50 | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $31.00 | |
| QF10050ALF | Aluminum | 1/2 | 0.50 | 0.07 | 10 | DISCONTINUED | --- | --- |
| QF16050ALF | Aluminum | 1/2 | 0.50 | 0.07 | 16 | DISCONTINUED | --- | --- |
| QF16075ALF | Aluminum | 3/4 | 0.75 | 0.07 | 16 | 3 | $11.50 | |
| QF25100ALF | Aluminum | 1 | 1.00 | 0.07 | 25 | 3 | $14.00 | |
| QF40150ALF | Aluminum | 1 1/2 | 1.50 | 0.08 | 40 | DISCONTINUED | --- | --- |
| QF50200ALF | Aluminum | 2 | 2.00 | 0.08 | 50 | DISCONTINUED | --- | --- |
|
* Call for availability. † Standard lead-time for non-stock items is approximately two weeks depending on the item. | ||||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||||||
