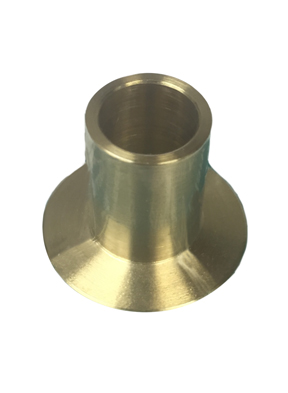

- Long Braze Weld Flange - Brass (This Page)
Hover over image to zoom
Description
Longer pump nipple for vacuum hose attachment or for custom welding applications.
| Long Braze Weld Flange - Brass | |||||||
| Part No. | Tube Size | A | B | NW Flange Size | Quantity In Stock |
Price EA |
Order |
|---|---|---|---|---|---|---|---|
| QF16050LB | 1/2 | 0.50 | 1.00 | 16 | DISCONTINUED | --- | --- |
| QF16062LB | 5/8 | 0.62 | 1.00 | 16 | DISCONTINUED | --- | --- |
| QF16075LB | 3/4 | 0.75 | 1.00 | 16 | DISCONTINUED | --- | --- |
| QF16087LB | 7/8 | 0.87 | 1.00 | 16 | DISCONTINUED | --- | --- |
| QF25100LB | 1 | 1.00 | 1.38 | 25 | 7 | $14.00 | |
| QF25112LB | 1 1/8 | 1.13 | 1.38 | 25 | DISCONTINUED | --- | --- |
| QF40150LB | 1 1/2 | 1.50 | 1.58 | 40 | DISCONTINUED | --- | --- |
| QF40162LB | 1 5/8 | 1.62 | 1.58 | 40 | DISCONTINUED | --- | --- |
| QF50200LB | 2 | 2.00 | 1.58 | 50 | DISCONTINUED | --- | --- |
| QF50212LB | 2 1/8 | 2.12 | 1.58 | 50 | DISCONTINUED | --- | --- |
| * Call for availability. | |||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
|||||||
