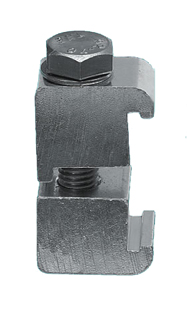

- Large Flange Double Claw Clamp (This Page)
Hover over image to zoom
Description
| Large Flange Double Claw Clamp | ||||||
| Part No. | Flange Size | A | B | C | Price EA |
Order |
|---|---|---|---|---|---|---|
| LF63100DC | 63; 80; 100 | 0.95 | 1.98 | 0.63 | $6.50 | |
| LF160250DC | 160; 200; 250 | 1.10 | 2.05 | 0.80 | $7.00 | |
| LF320500DC | 320; 400; 500 | 1.34 | 2.56 | 1.04 | $13.50 | |
| * Standard lead-time for non-stock items is approximately two weeks depending on the item. | ||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||||
