Hover over image to zoom
Description

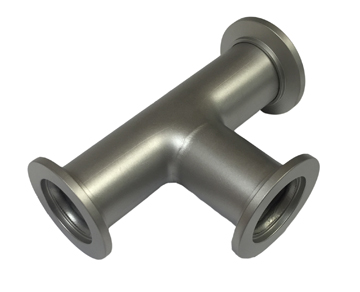

Three NW flanges permit the union of several pump lines.
Manufactured by A&N
| QF Stainless Steel Tees | |||||
| Part No. | A | NW Flange Size | Quantity In Stock |
Price EA |
Order |
|---|---|---|---|---|---|
| QF16075T | 1.57 | 16 | DISCONTINUED | --- | --- |
| QF25100T | 1.97 | 25 | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $83.00 | |
| QF40150T | 2.56 | 40 | DISCONTINUED | --- | --- |
| QF50200T | 2.76 | 50 | DISCONTINUED | --- | --- |
|
* Call for availability. † Standard lead-time for non-stock items is approximately two weeks depending on the item. | |||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
|||||
