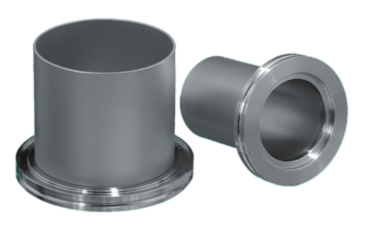

- Long Butt Flange - 304 Stainless Steel (This Page)
Hover over image to zoom
Description
| Long Butt Flange - 304 Stainless Steel, C (in)=3.94 | |||||
| Part No. | Tube OD (in) | A (in) | B (in) | Price EA |
Order |
|---|---|---|---|---|---|
| LF63250LF | 2.50 | 2.37 | 2.50 | $89.00 | |
| LF80300LF | 3.00 | 2.87 | 3.01 | $100.00 | |
| LF100400LF | 4.00 | 3.87 | 4.00 | $120.00 | |
| LF160600LF | 6.00 | 5.83 | 6.00 | $155.00 | |
| LF200800LF | 8.00 | 7.76 | 8.00 | $250.00 | |
| LF2501000LF | 10.00 | 9.75 | 10.00 | $273.00 | |
| * Standard lead-time for non-stock items is approximately two weeks depending on the item. | |||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
|||||
