- Tubing Adaptor Flange (This Page)
Hover over image to zoom
Description

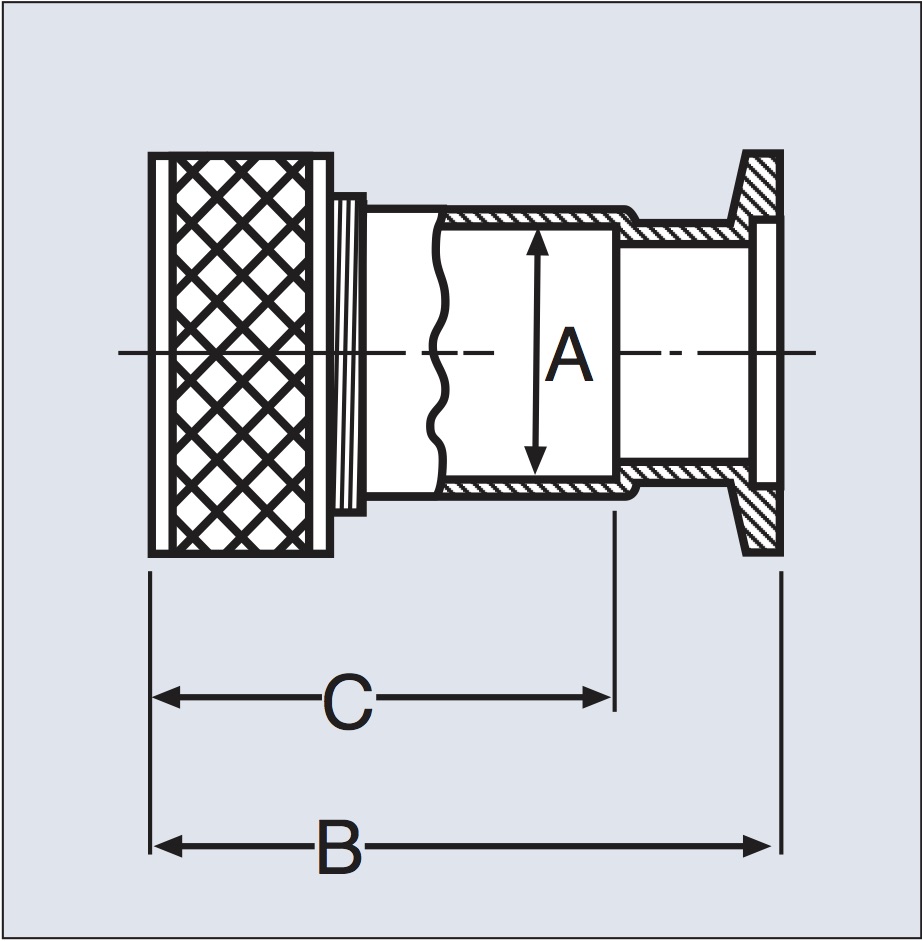

| TUBING ADAPTER W/ VITON O-RING SEAL | |||||||
| Part No. | For NW Flange | For Tube OD (in) | A | B | C | Price EA |
Order |
|---|---|---|---|---|---|---|---|
| KSA3516 | 16 | 1/4 | 0.265 | 1.3 | THRU | $97.50 | |
| KSA35161 | 16 | 1/2 | 0.515 | 2.0 | 1.3 | $97.50 | |
| KSA35162 | 16 | 3/4 | 0.765 | 2.2 | 1.6 | $150.00 | |
| KSA3525 | 25 | 1/2 | 0.515 | 2.0 | 1.3 | $150.00 | |
| KSA35251 | 25 | 3/4 | 0.765 | 2.3 | 1.6 | $150.00 | |
| KSA35252 | 25 | 1 | 1.015 | 2.4 | 1.8 | $157.50 | |
| * Lead time for this non-stock item is approximately 7 days. | |||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
|||||||
