- Hose Adaptor, Stainless Steel (This Page)
Hover over image to zoom
Description

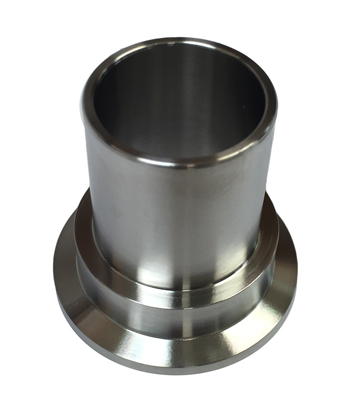

Stainless steel nipples for clamping vacuum hose to NW flanges.
| Hose Adapter, Stainless Steel | ||||||||
| Part No. | Hose Size | A | B | C | NW Flange Size | Quantity In Stock |
Price EA |
Order |
|---|---|---|---|---|---|---|---|---|
| QF10050SH | 1/2 in | 0.500 | 1.260 | 0.790 | 10 | 2 | $16.00 | |
| QF16050SH | 1/2 in | 0.500 | 1.260 | 0.790 | 16 | 3 | $16.00 | |
| QF16075SH | 3/4 in | 0.750 | 1.260 | 0.790 | 16 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $16.00 | |
| QF25100SH | 1 in | 1.000 | 1.500 | 1.020 | 25 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $32.78 | |
| QF40150SH | 1 1/2 in | 1.500 | 1.970 | 1.500 | 40 | DISCONTINUED | --- | --- |
| QF50200SH | 2 in | 2.000 | 2.170 | 1.610 | 50 | DISCONTINUED | --- | --- |
|
* Standard lead-time for non-stock items is approximately two weeks depending on the item. † Call for availability. | ||||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||||||
