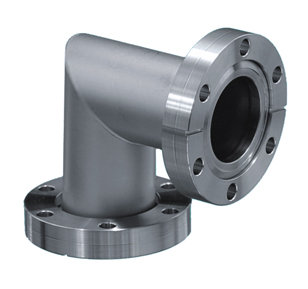

- 90 Degree Stainless Steel Mitred Elbow (This Page)
Hover over image to zoom
Description
| 90 Degree Stainless Steel Mitred Elbow | ||||
| Part No. | A | NW Flange Size | Price EA |
Order |
|---|---|---|---|---|
| QF40150E90M | 2.56 | 40 | $72.00 | |
| QF50200E90M | 2.76 | 50 | $93.00 | |
| * Standard lead-time for non-stock items is approximately two weeks depending on the item. | ||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||
