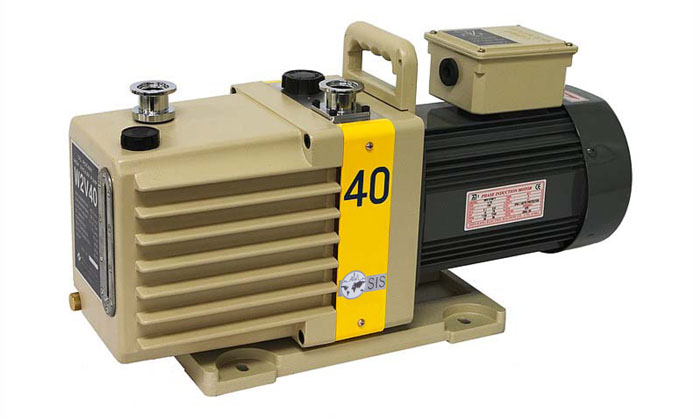

- W2V40 - 14 CFM (This Page)
Hover over image to zoom
Price: 2300
Product ID : W2V40110
W2V40220 Voltage=220V W2V40 PUMP 50/60HZ W2V40110 Voltage=110V W2V40 PUMP 50/60HZ
Features
- Low Cost - Save 35 - 50%
- Quiet and Light Weight
- Precise machining eliminates noise and vibration levels
- Air Cooled
- Fast Pumping
- Direct Drive
- Gas Ballast Valve
- Voltage Choices: 110V or 220V
- Comparable to Edwards RV12 & Adixen 215 Series
- Reliable - 20 years of history
Applications
Ideal for- Mass Spectrometers
- GC/ICP Mass
- Vacuum Degassing
- Freeze Drying
- Cryogenics
- Vacuum Distillations
- Surface Coating
- Laser Construction
- Vacuum Ovens
- Electron Microscopes
Drawings
Specs
| Technical Data | |
|---|---|
| Pumping Speed | 400 L/min (14 CFM) |
| Ultimate Pressure - Gas Ballast Closed | 5 x 10-4 torr (6.7 x 10-2 Pa) |
| Ultimate Pressure - Gas Ballast Open | 5 x 10-2 torr (6.7 Pa) |
| Power Input | 220 VAC/ 110 VAC 50/60 Hz; Customer's Request (Voltage, Frequency and Phase) |
| Full Load Power | 0.75 kW (1 HP) |
| Motor Speed | 1700 rpm |
| Inlet and Outlet connections | NW25 |
| Oil Capacity | 1500 cc (1.5L) |
| Weight | 29 kg |
| Ambient Operation Temp. Range | 7-40 °C |
| Overall Dimension (mm) | 170 (W) x 490 (L) x 293 (H) |
**THIS PUMP SHOULD NOT BE PLUGGED DIRECTLY INTO THE AGILENT MSD. USE ALTERNATE POWER SOURCE/WALL OUTLET.**
