Hover over image to zoom
Price: 0
Product ID : PKD58111

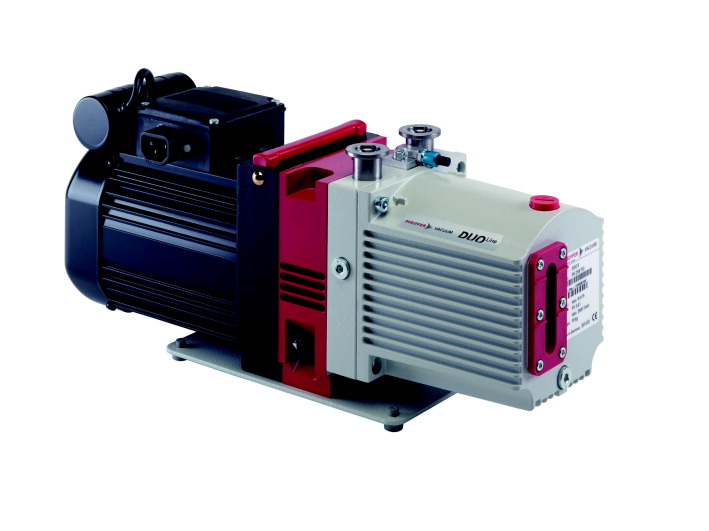

PKD58111 PFEIFFER DUO 6M PUMP DUO 6M 115/230V 50/60 HZ SWITCHABLE
Features
- Dual-stage, high-performance rotary vane pump with a pumping speed of 5 m3/h at 50 Hz / 6 m3/h at 60 Hz
- With single-phase motor with C14 connector plug inside the terminal box
- Integrated gas ballast and HV safety valve
- For all low and medium vacuum applications
- With magnetic coupling
Specs
| Technical Data | |
|---|---|
| Ambient temperature | 12-40 °C | 53.6-104 °F | 285-313 K |
| Cooling method, standard | Air |
| Emission sound pressure level without gas ballast at 50 Hz | ≤ 53 dB (A) |
| Exhaust pressure, max. | 1,500 hPa | 1,125 Torr | 1,500 mbar |
| Exhaust pressure, min. | 250 hPa | 187.5 Torr | 250 mbar |
| Flange (in) | DN 16 ISO-KF |
| Flange (out) | DN 16 ISO-KF |
| Leak rate safety valve | ≤ 1 · 10-5 Pa m3/s | ≤ 7.5 · 10-5 Torr l/s | ≤ 1 · 10-4 mbar l/s |
| Magnetic coupling | yes |
| Mains cable | No |
| Mains requirement: voltage (selectable) | 230 V |
| Mains requirement: voltage 50 Hz | 115 V |
| Mains requirement: voltage 60 Hz | 115 V |
| Operating fluid | P3 |
| Operating fluid filling | 0.5 l |
| Protection category | IP 40 |
| Pumping speed at 50 Hz | 5 m3/h |
| Pumping speed at 60 Hz | 6 m3/h |
| Rated power 50 Hz | 0.2 kW |
| Rated power 60 Hz | 0.24 kW |
| Rotation speed at 50 Hz | 3000 min-1 |
| Rotation speed at 60 Hz | 3600 min-1 |
| Switch | yes |
| Ultimate pressure with gas ballast | 3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar |
| Ultimate pressure without gas ballast | 3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar |

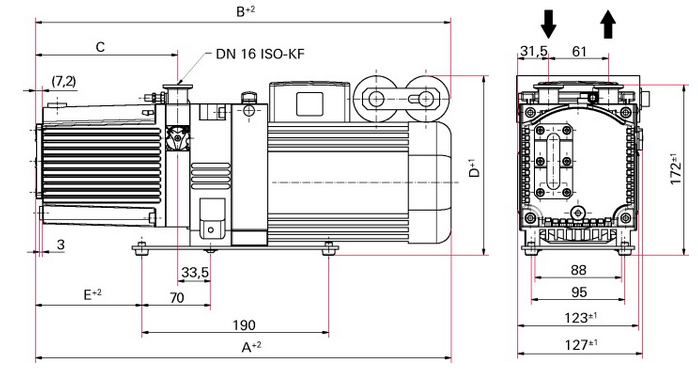

Dimensions
A - 423 mm
B - 420 mm
C - 145 mm
D - 176 mm
E - 108.5 mm
