Price: 3553
Product ID : PKD57111

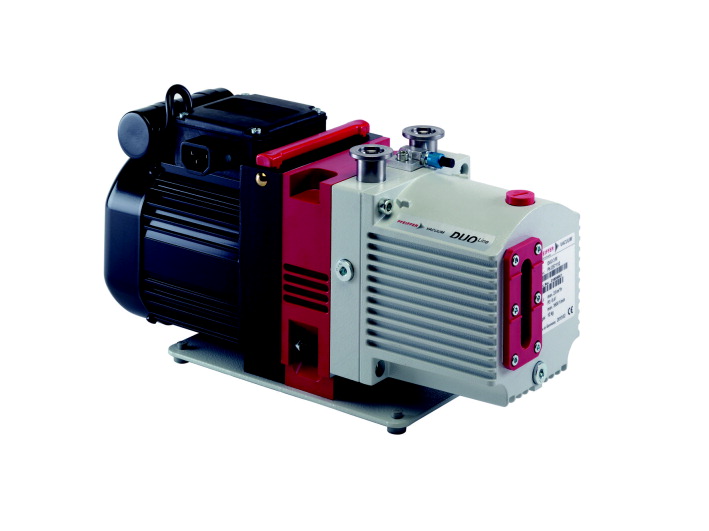

PKD57111 PFEIFFER DUO 3M PUMP DUO 3M 115V/230V 50/60 HZ SWITCHABLE
Features
- Dual-stage, high-performance rotary vane pump with a pumping speed of 2.5 m3/h at 50 Hz / 2.9 m3/h at 60 Hz
- With magnetic coupling
- With single-phase motor with C14 connector plug inside the terminal box
- Integrated gas ballast and safety valve
- Oil return device is included with the pump
- For all low and medium vacuum applications
- Special feature: various motor voltages for wide range of application fields
Specs
Technical Data | |
---|---|
Ambient temperature | 12-40 °C | 53.6-104 °F | 285-313 K |
Cooling method, standard | Air |
Emission sound pressure level without gas ballast at 50 Hz | ≤ 53 dB (A) |
Exhaust pressure, max. | 1,500 hPa | 1,125 Torr | 1,500 mbar |
Exhaust pressure, min. | 250 hPa | 187.5 Torr | 250 mbar |
Flange (in) | DN 16 ISO-KF |
Flange (out) | DN 16 ISO-KF |
Leak rate safety valve | ≤ 1 · 10-5 Pa m3/s | ≤ 7.5 · 10-5 Torr l/s | ≤ 1 · 10-4 mbar l/s |
Magnetic coupling | yes |
Mains cable | No |
Mains requirement: voltage (selectable) | 230 V |
Mains requirement: voltage 50 Hz | 115 V |
Mains requirement: voltage 60 Hz | 115 V |
Operating fluid | P3 |
Operating fluid filling | 0.4 l |
Protection category | IP 40 |
Pumping speed at 50 Hz | 2.5 m3/h |
Pumping speed at 60 Hz | 2.9 m3/h |
Rated power 50 Hz | 0.15 kW |
Rated power 60 Hz | 0.18 kW |
Rotation speed at 50 Hz | 3000 min-1 |
Rotation speed at 60 Hz | 3600 min-1 |
Switch | yes |
Ultimate pressure with gas ballast | 3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar |
Ultimate pressure without gas ballast | 3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar |
Weight | 12.2 kg | 26.9 lb |

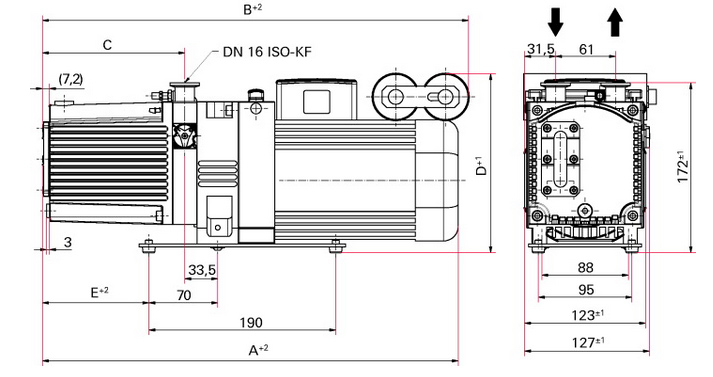

Dimensions
A - 351 mm
B - 361 mm
C - 123 mm
D - 176 mm
E - 85.5 mm
