SGE PEEKsil™ Tubing (Fused Silica Lined PEEK Tubing)

Catalog E49, D28
Home
SGE PEEKsil™ Tubing
Hover over image to zoom

Description

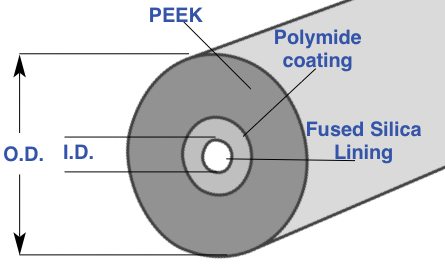

PEEKsil is polymer-sheathed fused silica tubing with an effective outside diameter of 1/32" or 1/16", and now in 0.36 mm. The sheathing polymer is polyether ether ketone (PEEK™) that is mechanically strong and has ideal characteristics for sealing with conventional metal or polymer ferrule systems. PEEKsil may be used as a direct replacement for PEEK tubing used in liquid chromatography systems. The new 0.36 mm OD material allows it to be used directly in place or 0.36 mm OD fused silica tubing.

Features

Advantage of PEEKsil

  • Robust Tubing - Ideal for capillary LC and LC/MS applications. All PEEKsil tubing rated to 10000 psi.
  • Smooth Wall Surface - Smoother than stainless steel for excellent flow characteristics.
  • Solvent Compatibility - PEEKsil is compatible with most organic solvents. PEEKsil is resistant to strong acids and has an effective pH range of 0 - 10. PEEKsil is not compatible with hydrofluoric acid.
  • Inertness - Fused silica has extremely low absorption characteristics and deactivated for critical chromatography applications.
  • Precision of I.D. - The I.D. of fused silica tubing can be produced more precisely and with a greater range of sizes than stainless steel.
  • Zero Metal Contact in LC - The sample and mobile phase do not come into contact with metal in PEEKsil tubing.
  • Ease of Connection - PEEKsil is straight but flexible, making connections between columns, detectors and injectors easier than with stainless steel tubing.
  • Applications of PEEKsil - Typical uses are in LC connecting lines, sample loops and sample lines

Specs

Color Coded PEEKsil Tubing

Color I.D. Tolerance
Orange 25 µm ± 1 micron
Natural 50 µm ± 3 micron
Black 75 µm ± 3 micron
Red 100 µm ± 3 micron
Purple 150 µm ± 5 micron
Yellow 175 µm ± 5 micron
Blue 200 µm ± 5 micron
Grey 300 µm ± 5 micron
Bone White 530 µm ± 10 micron
PEEKSIL
Part No. Tubing TypeLength(mm)ID(mm)PK Quantity
In Stock
Price
/PK
Order
0624371 0.36 mm500.0252 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $87.30
Qty
0624372 0.36 mm1000.0252 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $93.10
Qty
0624373 0.36 mm500.0252 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $98.90
Qty
0624374 0.36 mm2500.0252 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $109.40
Qty
0624375 0.36 mm5000.0252 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $138.80
Qty
0624376 0.36 mm500.0502 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $49.50
Qty
0624377 0.36 mm1000.0502 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $54.70
Qty
0624378 0.36 mm1500.0502 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $61.00
Qty
0624379 0.36 mm2500.0502 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $71.60
Qty
0624380 0.36 mm5000.0502 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $100.40
Qty
0624241 1/32"500.0252 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $44.20
Qty
0624242 1/32"1000.0252 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $46.90
Qty
0624243 1/32"1500.0252 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $50.50
Qty
0624245 1/32"2500.0252 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $56.40
Qty
0624249 1/32"5000.0252 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $69.90
Qty
0624261 1/32"500.0502 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $27.40
Qty
0624262 1/32"1000.0502 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $29.50
Qty
0624263 1/32"1500.0502 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $32.70
Qty
0624265 1/32"2500.0502 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $41.00
Qty
0624269 1/32"5000.0502 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $52.60
Qty
0624273 1/32"1500.0752 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $32.70
Qty
0624275 1/32"2500.0752 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $39.00
Qty
0624279 1/32"5000.0752 1$52.60
Qty
0624311 1/32"500.12 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $27.40
Qty
0624312 1/32"1000.12 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $29.50
Qty
0624313 1/32"1500.12 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $32.70
Qty
0624315 1/32"2500.12 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $39.00
Qty
0624319 1/32"5000.12 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $52.60
Qty
0624342 1/32"1000.152 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $29.50
Qty
0624345 1/32"2500.152 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $39.00
Qty
0624349 1/32"5000.152 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $52.60
Qty
0624225 1/16"500.0255 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $97.80
Qty
0624226 1/16"1000.0255 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $103.60
Qty
0624227 1/16"1500.0255 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $108.30
Qty
0624228 1/16"2000.0255 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $114.60
Qty
0624229 1/16"5000.0252 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $66.20
Qty
0624251 1/16"500.055 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $64.20
Qty
0624252 1/16"1000.055 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $71.60
Qty
0624254 1/16"1500.055 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $76.80
Qty
0624253 1/16"2000.055 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $83.10
Qty
0624250 1/16"5000.052 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $48.40
Qty
0624290 1/16"500.0755 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $64.20
Qty
0624291 1/16"1000.0755 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $71.60
Qty
0624292 1/16"1500.0755 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $76.80
Qty
0624293 1/16"2000.0755 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $83.10
Qty
0624294 1/16"5000.0752 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $48.40
Qty
0624301 1/16"500.15 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $64.20
Qty
0624302 1/16"1000.15 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $71.60
Qty
0624304 1/16"1500.15 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $76.80
Qty
0624303 1/16"2000.15 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $83.10
Qty
0624300 1/16"5000.12 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $48.40
Qty
0624230 1/16"500.155 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $64.20
Qty
0624231 1/16"1000.155 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $71.60
Qty
0624232 1/16"1500.155 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $76.80
Qty
0624233 1/16"2000.155 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $83.10
Qty
0624234 1/16"5000.152 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $48.40
Qty
0624351 1/16"500.1755 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $64.20
Qty
0624352 1/16"1000.1755 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $71.60
Qty
0624354 1/16"1500.1755 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $76.80
Qty
0624353 1/16"2000.1755 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $83.10
Qty
0624350 1/16"5000.1752 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $48.40
Qty
0624202 1/16"200.25 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $64.20
Qty
0624203 1/16"1000.25 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $71.60
Qty
0624205 1/16"1500.25 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $76.80
Qty
0624204 1/16"20000.25 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $87.40
Qty
0624201 1/16"5000.22 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $48.40
Qty
0624214 1/16"500.35 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $64.20
Qty
0624215 1/16"1000.35 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $71.60
Qty
0624216 1/16"1500.35 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $76.80
Qty
0624217 1/16"2000.35 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $83.10
Qty
0624218 1/16"5000.32 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $48.40
Qty
0624365 1/16"500.535 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $64.20
Qty
0624366 1/16"1000.535 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $71.60
Qty
0624367 1/16"1500.535 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $76.80
Qty
0624370 1/16"5000.532 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $48.40
Qty
