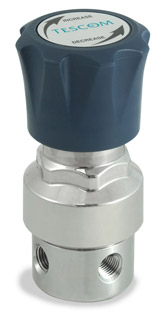

- Model 3510 Series - Single Stage High Purity Stainless Steel Regulators (This Page)
Hover over image to zoom
Description
The Model 3510 Series has been improved to supply the needs of scientific instruments including the gas chromatograph. The Model 3510 Series has been upgraded to a higher purity, longer lived product design. These regulators provide high purity control for applications where the delivery pressure is monitored.The Model 3510 Series regulators are recommended for use in applications where a slight pressure rise is acceptable due to declining cylinder pressure as gas is withdrawn. The Model 3510 Series is compatible with gases that are non-corrosive or semi-corrosive in nature and gases that are compatible with the materials in the process stream.
Features
- 316 Stainless Steel construction
- Equipped with an outlet diaphragm valve with integral compression tube fitting
- Metal to metal seals throughout
- Bonnet threaded for panel mounting as standard
- Body pre-drilled for back mounting
Specs
| Maximum Inlet Pressure: | 3000 psig (20,700 kPa) |
|---|---|
| Maximum flow Rate (At 2500 psig, N2): | Model 3510: 550 CFH (240 LPM) Model 3511: 135 CFH (60 LPM) Model 3512: 210 CFH (95 LPM) Model 3513: 210 CFH (95 LPM) Model 3515: 550 CFH (240 LPM) Model 3516: 1350 CFH (600 LPM) |
| Flow Coefficient (Cv): | 0.06 |
| Operating Temperature: | -40 to 165 °F (-40 to 74 °C) |
| Porting: | 1/4" NPT female |
| Porting Configuration: | 2 high, 2 low |
| Materials of Construction | |
|---|---|
| Body: | 316 Stainless Steel |
| Bonnets: | Nickel Plated Brass |
| Diaphragms: | 316 Stainless Steel |
| Seats: | PFA PTFE |
| Seals: | Metal to Metal |
| 3510 Series - Single Stage High Purity Stainless Steel Regulators | |||||
| Part No. | Flow Rate | Stock/ Lead Time |
UOM | Price | Order |
|---|---|---|---|---|---|
| 3510 | 550 CFH | DISCONTINUED | EA | --- | --- |
| 3511 | 135 CFH | MISSING PART NUMBER | CALL | ||
| 3512 | 210 CFH | MISSING PART NUMBER | CALL | ||
| 3513 | 210 CFH | MISSING PART NUMBER | CALL | ||
| 3515 | 550 CFH | DISCONTINUED | EA | --- | --- |
| 3516 | 1350 CFH | DISCONTINUED | EA | --- | --- |
| * Call for availability. | |||||
Ordering information.
