Hover over image to zoom
Price: 1064
Product ID : YE1881

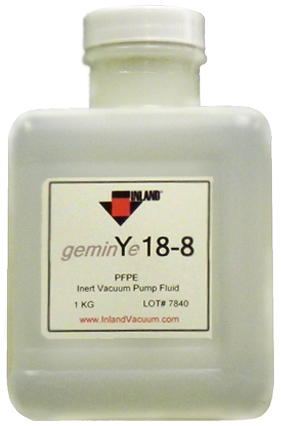

YE1881 INLAND GEMINYE 18-8 1KG
Features
Inland geminYe® perfluoropolyether (PFPE) family of lubricants are non-flammable, chemically inert, and thermally stable. geminYe® fluids have excellent lubricity properties and are available in viscosity grades suitable for use in all vacuum pumps. When used with proper filtration, geminYe® fluids provide exceptionally long service life.
- Low vapor pressure
- Oxygen Compatible
- Non-Flammable
- Solvent Resistant
- Low relative weight loss
- Chemically Inert
- CFC free - Ozone friendly
- High thermal stability
- High dielectric properties
- Good radiation stability
- No flash or fire point
- Excellent compatibility with metals, plastics, and elastomers
- Reclaimable
- Made in USA
Specs
| Vapor Pressure @ 20 °C | 2 x 10-8 torr |
|---|---|
| Vapor Pressure @ 100 °C | 2 x 10-4 torr |
| Viscosity @ 20 °C | 180 cSt |
| Pour Point | -42 °C |
| Flash Point | none |
| Fire Point | none |
| Density @ 20 °C | 1.89g/cc |
SDS
Inland® geminYe® 25-9 Inland geminYe® PFPE pump fluids provide exceptionally long service life.
Santovac 5/5p Diffusion Pump Fluid Santovac 5P Ultra has the same properties of Santovac 5 but guarantees minimal amounts of the 3 and 4 ring polyphenyl ethers; less than .02% and .1% respectively and for ultra-clean applications such as mass spectrometry.
Invoil 702 Diffusion Pump Fluid Invoil 702 is designed for the rapid pumping of large volumes of gas.
Invoil 704 Diffusion Pump Fluid Invoil 704 is a single component silicone diffusion pump fluid for high vacuums 10-6 to 10-8 torr range.
Invoil 705 Diffusion Pump Fluid Invoil 705 silicone diffusion pump fluid is a single component fluid designed for ultra high vacuum systems in the 10-7 to 10-9 torr range.
