Hover over image to zoom
Price: 0
Product ID : IN702
IN702 Size=500 mL Invoil 702 IN7021 Size=1 gallon Invoil 702
Description

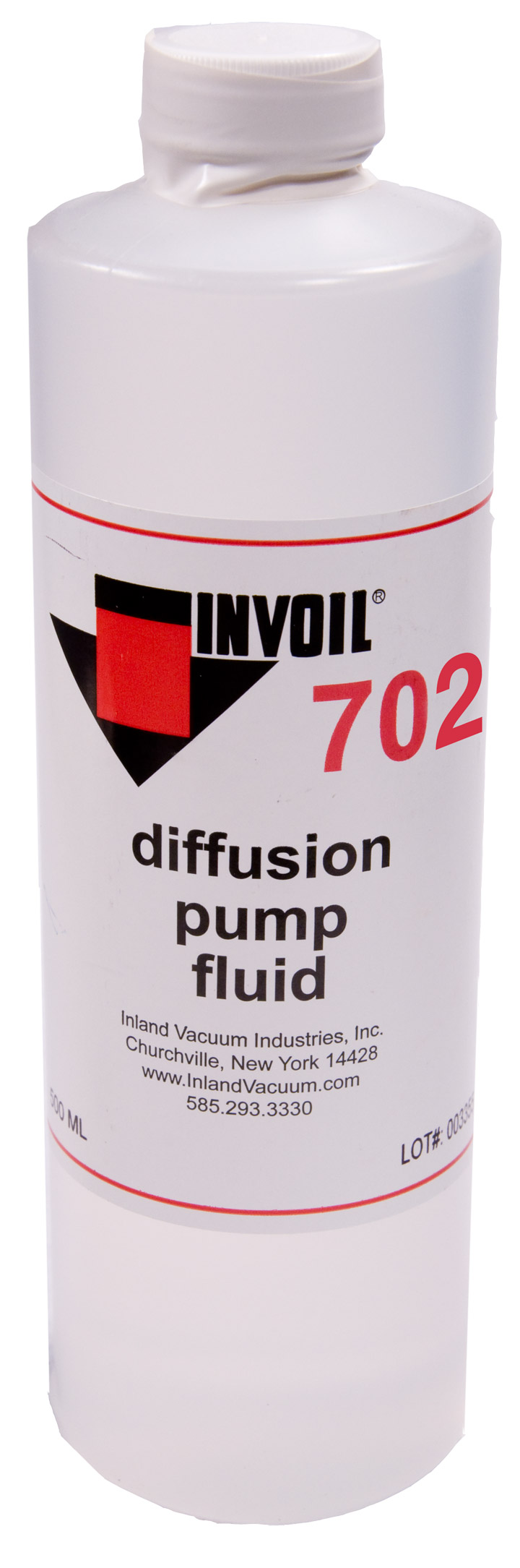

Invoil 702 is designed for the rapid pumping of large volumes of gas. It has the important advantage of thermal stability. The silicone based fluid is resistant to air at operating temperatures, so the pumps require no cooling between cycles.Features
- Superior Vapor Pressure Capabilities
- Resistant to Oxidation
- Thermal Stability
- Quick Pumpdown Cycles
Specs
| Vapor Pressure @ 25 °C | 3.3 x 10 -6 torr |
|---|---|
| Boiling Point @.50 torr: | 190 °C (374 °F) |
| Viscosity @ 40 °C : | 26.8 cst (127.3 SUS) |
| Viscosity @ 100 °C: | 6.2 cst (46.5 SUS) |
| Pour Point: | <0 °C (<32 °F) |
| Flash Point: | 193 °C (380 °F) |
| Fire Point: | None |
| Density: | 1.07 gm/cc |
SDS
