Description
The VGC-301 vacuum gauge controller is a convenient and inexpensive power supply and readout instrument for a CVG “Worker Bee” convection vacuum gauge. The VGC-301 is powered by 12-30 VDC, or by its self-contained universal 100-240 VAC supply.Compatibility: Signals and relay functions are the same as found on similar convection gauge controllers from other manufacturers. The VGC-301, CVG gauge, and gauge cable can be directly interchanged with Granville-Phillips 375 Controller, 275 Convectron® gauge, and gauge cable. (Remote interface, relay and power connectors are different.)
Features
- Includes two setpoint, user-selectable analog output, and RS232/485 interfaces.
- Analog output is configurable as a non-linear S-curve, log-linear, or user-scalable linear.
- Wide measuring range lets you monitor your vacuum system from 10-4to 1000 Torr with a single gauge.
Controls

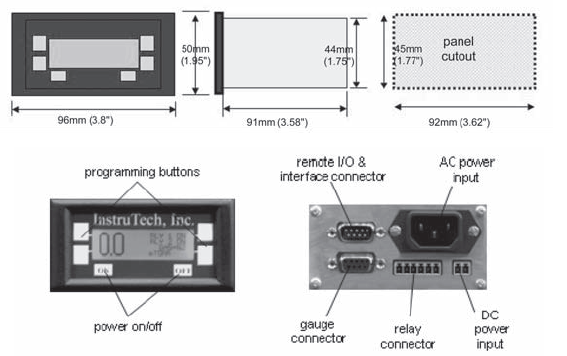

Controls and Connections
