Product ID : BPGSTD
BPGSTD Options=Bullseye Precision Gauge, Without Bluetooth BPG Options=Bullseye Precision Gauge, With Bluetooth
Description

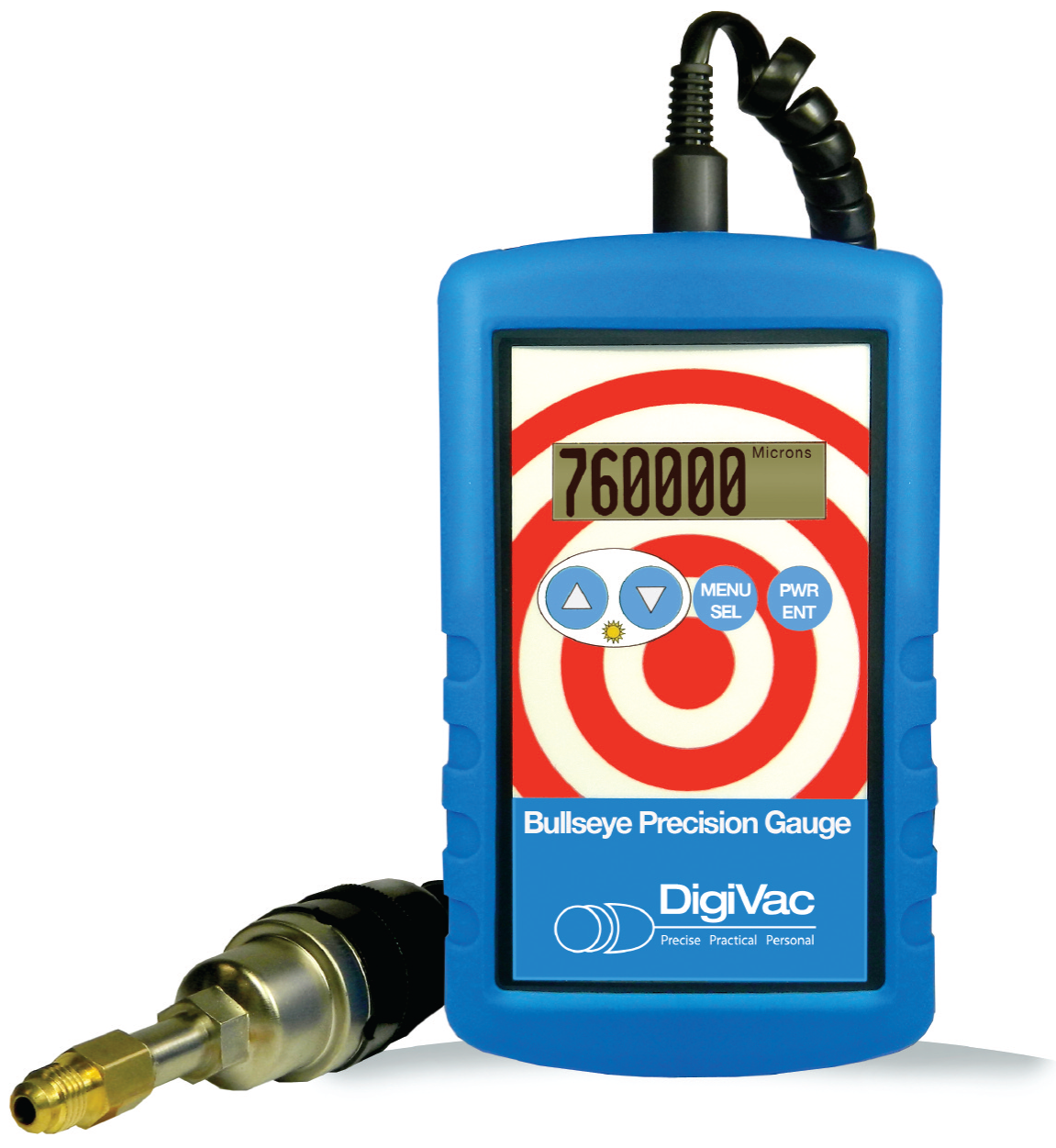

Your Eye in the Field. A rugged, portable vacuum measurement instrument designed specifically for the demands of field use.Portable
- Rugged design that offers a superstrong magnet for hands-free Vacuum Measurement
- Field proven thermocouple vacuum sensing technology
Precise
- Bullseye accuracy available in 11 measurement units
- Field Calibratable
Reliable
- 70 hour battery life
- Protective rubber boot
- Simple easy to use design
Features
- Auto Off
- On/Off soft switch
- Backlight for night viewing
- Low Battery indication
- Good/Bad tube indication
- 70 hour battery life
- Self test mode
- Field calibratable
- Graphical display of vacuum pressure
- Bluetooth (optional)
Specs
| Range: | 1-800,000 microns |
|---|---|
| Units: | 11 different units of vacuum (microns, millitorr, Torr, mm of Hg, mbar, bar, kPa, Pa, PSIA, inches of Hg and inches of water) |
| Vac Interface: | 1/8" NPT or 1/4" male flare |
| Sensor: | DigiVac Thermocouple Plus |
| Cable Length: | 7 feet |
| Dimensions: | 6.2" x 3.7" x 1.3" |
| Power: | 4 AA Alkaline |
| Output: | bluetooth (optional) |
Accuracy:
- +/- 17% 1-2000 microns
- +/- 30% 2001-800,000 microns
Applications
- Trouble Shoot Vacuum leaks for Scientific Instrumentation
- Refrigeration Maintenance for chillers, freeze dryers and freezers, HVAC systems
