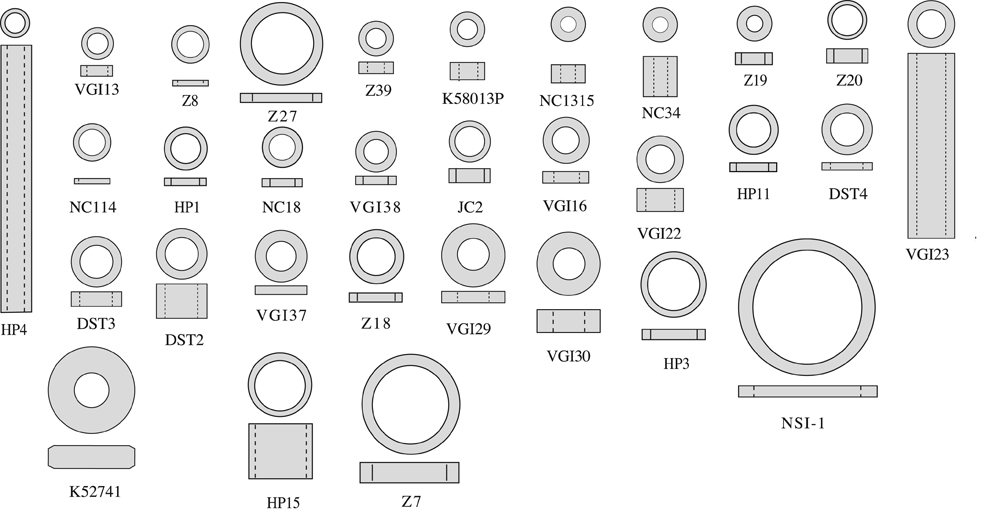

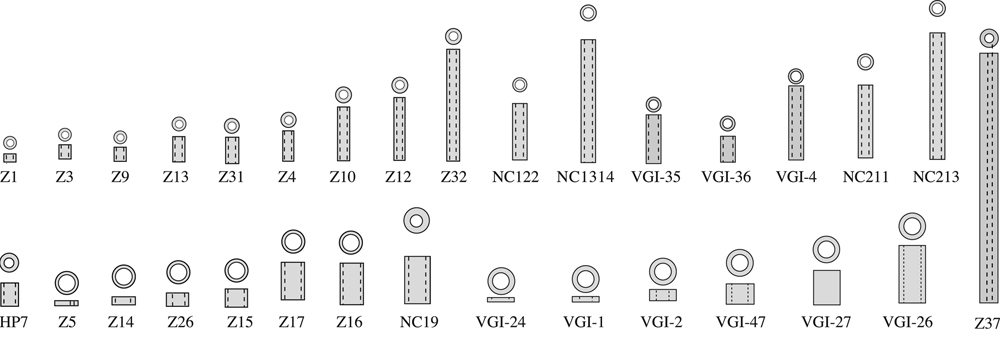

Drawings
Description
The following straight alumina insulators and washers are currently available. All listed insulators are constructed from a high purity aluminum oxide ceramic. These insulators are all straight washers and tubes with no steps. All dimensions are in inches and ± 0.002 inches.
| Part No. | O.D.(in.) | I.D.(in.) | Thickness (in.) | Quantity In Stock |
Price EA |
Order | |
|---|---|---|---|---|---|---|---|
| Z1 | Ceramic Insulator | ||||||
| .087 | .063 | .065 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | CALL§10 or more: 5% off; 50 or more: 10% off. | |||
| Z3 | Ceramic Insulator | ||||||
| .087 | .063 | .100 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $9.50§10 or more: 5% off; 50 or more: 10% off. | |||
| Z9 | Ceramic Insulator | ||||||
| .087 | .063 | .0125 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $9.50§10 or more: 5% off; 50 or more: 10% off. | |||
| Z13 | Ceramic Insulator | ||||||
| .087 | .063 | .160 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $9.50§10 or more: 5% off; 50 or more: 10% off. | |||
| Z31 | Ceramic Bushing | ||||||
| .087 | .063 | .175 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $10.00§10 or more: 5% off; 50 or more: 10% off. | |||
| Z4 | Ceramic Insulator | ||||||
| .087 | .063 | .200 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $10.00§10 or more: 5% off; 50 or more: 10% off. | |||
| Z10 | Ceramic Insulator | ||||||
| .087 | .063 | .360 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $10.00§10 or more: 5% off; 50 or more: 10% off. | |||
| Z12 | Ceramic Insulator | ||||||
| .087 | .063 | .425 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $10.00§10 or more: 5% off; 50 or more: 10% off. | |||
| Z32 | Ceramic Bushing | ||||||
| .087 | .063 | .760 | DISCONTINUED | ---§10 or more: 5% off; 50 or more: 10% off. | --- | ||
| NC122 | Ceramic Lens Barrell 3113 | ||||||
| .101 | .073 | .400 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $29.00§10 or more: 5% off; 50 or more: 10% off. | |||
| NC1314 | Ceramic Barrell 40943 | ||||||
| .101 | .073 | .866 | INACTIVE | ---§10 or more: 5% off; 50 or more: 10% off. | --- | ||
| VGI35 | Trio Trap Insulator Tube | ||||||
| .102 | .065 | .334 | INACTIVE | ---§10 or more: 5% off; 50 or more: 10% off. | --- | ||
| VGI36 | Trio Repeller Insulator Tube | ||||||
| .102 | .065 | .178 | INACTIVE | ---§10 or more: 5% off; 50 or more: 10% off. | --- | ||
| VGI4 | Ceramic Tube | ||||||
| .103 | .071 | .508 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $30.00§10 or more: 5% off; 50 or more: 10% off. | |||
| NC211 | Ceramic Spacer 8614 | ||||||
| .104 | .073 | .512 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $30.00§10 or more: 5% off; 50 or more: 10% off. | |||
| NC213 | Ceramic Spacer 8613 | ||||||
| .104 | .073 | .886 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $27.00§10 or more: 5% off; 50 or more: 10% off. | |||
| HP7 | Contact Insulator | ||||||
| .122 | .063 | .152 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $16.00§10 or more: 5% off; 50 or more: 10% off. | |||
| Z37 | Ceramic Insulator | ||||||
| .124 | .062 | 1.78 | INACTIVE | ---§10 or more: 5% off; 50 or more: 10% off. | --- | ||
| Z5 | Sapphire Spacer | ||||||
| .156 | .094 | .030 | 0‡Lead time for this non-stock item is approximately 63 days. | $9.25§10 or more: 5% off; 50 or more: 10% off. | |||
| Z14 | Ceramic Insulator | ||||||
| .156 | .095 | .050 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $19.00§10 or more: 5% off; 50 or more: 10% off. | |||
| Z26 | Ceramic Insulator | ||||||
| .156 | .093 | .100 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $12.75§10 or more: 5% off; 50 or more: 10% off. | |||
| Z15 | Ceramic Insulator | ||||||
| .156 | .095 | .117 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $12.75§10 or more: 5% off; 50 or more: 10% off. | |||
| Z17 | Ceramic Insulator | ||||||
| .156 | .095 | .250 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $13.75§10 or more: 5% off; 50 or more: 10% off. | |||
| Z16 | Ceramic Insulator | ||||||
| .156 | .095 | .280 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $13.75§10 or more: 5% off; 50 or more: 10% off. | |||
| NC19 | Ceramic Barrell 4834 | ||||||
| .175 | .079 | .335 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $15.00§10 or more: 5% off; 50 or more: 10% off. | |||
| VGI24 | Ceramic Spacer | ||||||
| .184 | .115 | .030 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $15.00§10 or more: 5% off; 50 or more: 10% off. | |||
| VGI1 | 1 mm Ceramic Spacer | ||||||
| .184 | .115 | .038 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $12.25§10 or more: 5% off; 50 or more: 10% off. | |||
| VGI2 | 2mm Ceramic Spacer Washer | ||||||
| .184 | .115 | .077 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $11.75§10 or more: 5% off; 50 or more: 10% off. | |||
| VGI47 | Ceramic Spacer 5mm | ||||||
| .184 | .115 | .197 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $18.00§10 or more: 5% off; 50 or more: 10% off. | |||
| VGI27 | 6mm Ceramic Spacer | ||||||
| .184 | .116 | .236 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $18.00§10 or more: 5% off; 50 or more: 10% off. | |||
| VGI26 | 10mm Ceramic Spacer | ||||||
| .184 | .116 | .394 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $29.50§10 or more: 5% off; 50 or more: 10% off. | |||
| HP4 | Insulator Tube | ||||||
| .195 | .152 | 1.91 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $24.00§10 or more: 5% off; 50 or more: 10% off. | |||
| VGI13 | Trap Ceramic Washer | ||||||
| .217 | .143 | .072 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $14.00§10 or more: 5% off; 50 or more: 10% off. | |||
| Z8 | Ceramic Insulator | ||||||
| .230 | .140 | .035 | INACTIVE | ---§10 or more: 5% off; 50 or more: 10% off. | --- | ||
| Z39 | Alumina Ceramic Insulator | ||||||
| .236 | .138 | .079 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $12.50§10 or more: 5% off; 50 or more: 10% off. | |||
| K58013P | Alumina Ceramic Insulator | ||||||
| .236 | .138 | .118 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | CALL§10 or more: 5% off; 50 or more: 10% off. | |||
| NC1315 | Ceramic 15427 | ||||||
| .236 | .098 | .122 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $24.50§10 or more: 5% off; 50 or more: 10% off. | |||
| NC34 | Ceramic Barrell 16910 | ||||||
| .236 | .108 | .280 | INACTIVE | ---§10 or more: 5% off; 50 or more: 10% off. | --- | ||
| Z19 | Ceramic Insulator | ||||||
| .250 | .125 | .064 | INACTIVE | ---§10 or more: 5% off; 50 or more: 10% off. | --- | ||
| Z20 | Ceramic Spacer | ||||||
| .255 | .205 | .100 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | CALL§10 or more: 5% off; 50 or more: 10% off. | |||
| NC114 | Ceramic Spacer 4833-3 | ||||||
| .256 | .177 | .030 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $15.00§10 or more: 5% off; 50 or more: 10% off. | |||
| HP1 | Ceramic Washer | ||||||
| .258 | .204 | .072 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $14.00§10 or more: 5% off; 50 or more: 10% off. | |||
| NC18 | Ceramic Spacer 4833-2 | ||||||
| .276 | .177 | .059 | INACTIVE | ---§10 or more: 5% off; 50 or more: 10% off. | --- | ||
| VGI38 | Filtered Rod Ceramic | ||||||
| .278 | .167 | .061 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $20.00§10 or more: 5% off; 50 or more: 10% off. | |||
| JC2 | Ceramic Insulator | ||||||
| .281 .203 | .097 | --- | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $20.00§10 or more: 5% off; 50 or more: 10% off. | |||
| VGI16 | Ceramic Spacer | ||||||
| .314 | .183 | .079 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $35.00§10 or more: 5% off; 50 or more: 10% off. | |||
| VGI22 | Ceramic Spacer | ||||||
| .318 | .196 | .157 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $35.00§10 or more: 5% off; 50 or more: 10% off. | |||
| VGI23 | Ceramic Spacer | ||||||
| .318 | .196 | 1.260 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $49.00§10 or more: 5% off; 50 or more: 10% off. | |||
| HP11 | Ceramic Spacer, Large | ||||||
| .333 | .240 | .062 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $13.00§10 or more: 5% off; 50 or more: 10% off. | |||
| DST4 | Ceramic Insulator | ||||||
| .344 | .225 | .050 | INACTIVE | ---§10 or more: 5% off; 50 or more: 10% off. | --- | ||
| DST3 | Ceramic Insulator | ||||||
| .344 | .225 | .100 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $36.50§10 or more: 5% off; 50 or more: 10% off. | |||
| DST2 | Ceramic Insulator | ||||||
| .344 | .225 | .235 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $41.00§10 or more: 5% off; 50 or more: 10% off. | |||
| VGI37 | Trio Source Lens Insulator | ||||||
| .352 | .202 | .058 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $42.00§10 or more: 5% off; 50 or more: 10% off. | |||
| Z18 | Ceramic Insulator | ||||||
| .365 | .250 | .064 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $18.00§10 or more: 5% off; 50 or more: 10% off. | |||
| VGI29 | Autospec Ceramic | ||||||
| .431 | .217 | .078 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $39.00§10 or more: 5% off; 50 or more: 10% off. | |||
| VGI30 | Autospec Ceramic | ||||||
| .431 | .217 | .156 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $20.00§10 or more: 5% off; 50 or more: 10% off. | |||
| HP15 | Draw Out Sleeve Ceramic | ||||||
| .433 | .344 | .375 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $60.00§10 or more: 5% off; 50 or more: 10% off. | |||
| HP3 | Insulator Support | ||||||
| .435 | .360 | .060 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $30.00§10 or more: 5% off; 50 or more: 10% off. | |||
| Z7 | L1 Ceramic Spacer | ||||||
| .560 | .406 | .030 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $36.00§10 or more: 5% off; 50 or more: 10% off. | |||
| K52741 | Alumina Ceramic Insulator | ||||||
| .591 | .236 | .157 | INACTIVE | ---§10 or more: 5% off; 50 or more: 10% off. | --- | ||
| Z27 | Ceramic Gate Insulator (Ion Trap) | ||||||
| .683 | .530 | .120 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $41.00§10 or more: 5% off; 50 or more: 10% off. | |||
| NSI1 | Thermo 4000 Sapphire | ||||||
| .935 | .750 | .031 | DISCONTINUED | ---|6 or more: 5% off. | --- | ||
|
§ Quantity discount 10 or more: 5% off; 50 or more: 10% off. | Quantity discount 6 or more: 5% off. | |||||||
|
* Standard lead-time for non-stock items is approximately two weeks depending on the item. † Call for availability. ‡ Lead time for this non-stock item is approximately 63 days. | |||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
|||||||
