Description
We are constantly adding insulators for Agilent and other manufacturer's instrument systems. The following alumina insulators are currently available for the Agilent Mass Spectrometers. If other sizes and/or types are required, please contact us, or send an old or damaged unit and we will see if we can supply it. All listed insulators are constructed from a high quality aluminum oxide ceramic unless otherwise noted.
All dimensions in inches, tolerances +/- 0.002 inches.

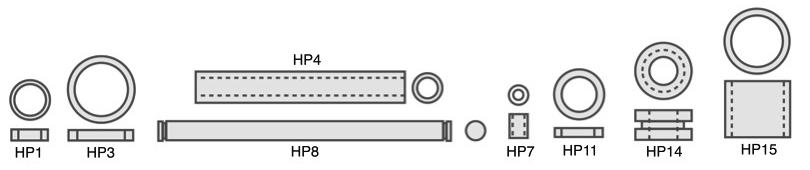

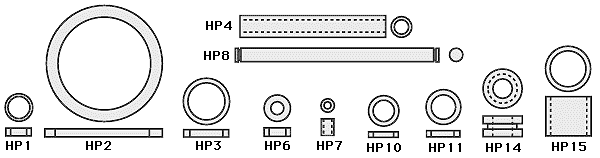

| HP Insulator | ||||||||
| Part No. | HP # | OD (in) | ID (in) | Thickness (in) | Quantity In Stock |
Price EA |
Order | |
|---|---|---|---|---|---|---|---|---|
| HP1 | Ceramic Washer | |||||||
| 05985-20140 | 0.258 | 0.204 | 0.072 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $28.00 | |||
| HP3 | Insulator Support | |||||||
| 05985-20458 | 0.435 | 0.360 | 0.060 | 28 | $30.00 | |||
| HP4 | Insulator Tube | |||||||
| 05985-20139 | 0.195 | 0.152 | 1.91 | DISCONTINUED | --- | --- | ||
| HP6 | Ceramic Washer | |||||||
| 05985-20412 | 0.250 | 0.126 | 0.074 | INACTIVE | --- | --- | ||
| HP7 | Contact Insulator | |||||||
| 05985-20452 | 0.122 | 0.063 | 0.152 | 1 | $16.00 | |||
| HP8 | Rod w/ Slotted Ends | |||||||
| 05930-20414 | 0.120 | --- | 1.96 | INACTIVE | --- | --- | ||
| HP11 | Ceramic Spacer, Lg | |||||||
| 05990-20218 | 0.333 | 0.240 | 0.062 | 3 | $13.00 | |||
| HP14 | Plate Insulator | |||||||
| 05989-20109 | 0.375 | 0.187 | 0.196 | DISCONTINUED | --- | --- | ||
| HP15 | Draw Out Sleeve | |||||||
| 05990-20216 | 0.433 | 0.344 | 0.375 | DISCONTINUED | --- | --- | ||
|
* Standard lead-time for non-stock items is approximately two weeks depending on the item. † Call for availability. | ||||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||||||
