Hover over image to zoom
Price: 0
Product ID : SCC8

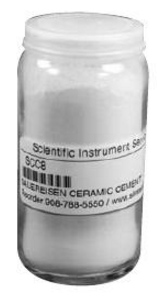

SCC850 Size=1 gal. SAUEREISEN CERAMIC CEMENT SCC8 Size=4 oz. jar SAUEREISEN CERAMIC CEMENT
Description
Sauereisen Electrotemp Ceramic is an excellent ceramic in applications where high electrical insulation is required and high thermal conductance is desired, as in heater elements. Coating a heater element with Sauereisen Ceramic allows you to electrically insulate the heater coils from shorting out while allowing excellent heat conductance. Other applications include mass spec probes, filaments, repair of ceramic pieces and some ceramic to metal joining.Sauereisen No. 8 is supplied in powder form and need only be mixed with water to apply. Sauereisen hardens at room temperature or by baking. The initial set begins in approximately one to two hours and the cement continues to increase in hardness until thoroughly dried.
Features
- Provides maximum electrical resistance
- Heat conductive and thermal shock resistant
- Excellent bonding properties
- Chemical set
- Easy to mix and apply
- Ideal for potting applications
- Odorless
Specs
| Physical Properties of Sauereisen | |
|---|---|
| Coefficient of thermal expansion | 2.6 x 10-6 in/in/°F (4.68 x 10-6 cm/cm/°C) |
| Color | Off white |
| Compressive strength | 4500-5500 psi (316 kg/cm2) |
| Density | 160 pcf (2.56 gm/cm3) |
| Dielectric constant | 3.0-4.0 |
| Dielectric strength
at 70 °F (21 °C) at 750 °F (398 °C) at 1475 °F (801 °C) |
76.0 to 101.5 Volts/mil (2900 to 3900 Volts/mm) 25.0 to 38.0 Volts/mil (980 to 1490 Volts/mm) 12.5 to 25.0 Volts/mil (490 to 980 Volts/mm) |
| Maximum service temperature | 2600 °F (1426 °C) |
| Modulus of rupture | 450 psi (31 kg/cm2) |
| Tensile strength | 250 psi (17 kg/cm2) |
| Thermal conductivity | 10-12 Btu•in/ft2•hr•°F (3.4-4.1 x 10-3 Cal•cm/cm2•sec•°C) |
| Volume resistivity
at 70 °F (21 °C) at 750 °F (398 °C) at 1475 °F (801 °C) |
1010-1011 ohm-cm 109-1010 ohm-cm 108-109 ohm-cm |
