Description

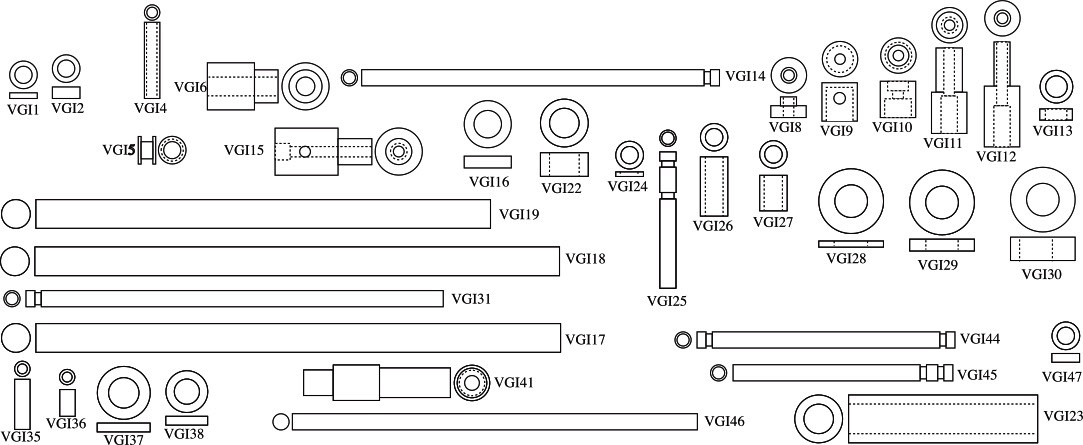

We are constantly adding insulators for VG and other manufacturer's instrument systems. The following alumina insulators are currently available for the Fisons/VG instruments. If other sizes and/or types are required, please contact us, or send an old or damaged unit and we will see if we can supply it. All listed insulators are constructed from a high quality aluminum oxide ceramic unless otherwise noted.
All dimensions in inches, tolerances +/- 0.002 inches.
| Part No. | VG # | Name | OD (in) | Thickness (in) | Quantity In Stock |
Price EA |
Order |
|---|---|---|---|---|---|---|---|
| VGI1 | 7020301 | 1 mm ceramic spacer | 0.184 | 0.038 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $12.25‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI2 | 7020302 | 2mm ceramic spacer | 0.184 | 0.077 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $11.75‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI4 | 7024363 | ceramic tube | 0.103 | 0.508 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $30.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI5 | 7020113 | grooved spacer | 0.184 | 0.078 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $13.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI6 | 6490104 | stepped insulator | 0.314 | 0.343 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $35.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI8 | 7029404 | stepped ceramic | 0.236 | 0.139 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $30.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI9 | 7029415 | ceramic cap | 0.236 | 0.256 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- |
| VGI10 | 7020319 | ceramic tube | 0.236 | 0.242 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $24.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI11 | 7029402 | stepped ceramic | 0.236 | 0.570 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- |
| VGI12 | 7029411 | stepped ceramic | 0.236 | 0.600 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- |
| VGI13 | Trap ceramic washer | 0.217 | 0.072 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $14.00‡10 or more: 5% off; 50 or more: 10% off. | ||
| VGI14 | --- | ceramic rod | 0.108 | 2.283 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- |
| VGI15 | M448123ADI | FAB Ceramic | 0.314 | 0.645 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- |
| VGI16 | M448158ADI | Ceramic Spacer | 0.314 | 0.079 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $35.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI17 | 3001573 | Ceramic Rod | 0.191 | 1.378 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- |
| VGI18 | 3001574 | Ceramic Rod | 0.191 | 1.772 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- |
| VGI19 | 3001542 | Ceramic Rod | 0.191 | 2.637 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- |
| VGI22 | 3001541 | Ceramic Spacer | 0.318 | 0.157 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $35.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI23 | 3001572 | Ceramic Spacer | 0.318 | 1.260 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $49.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI24 | --- | Ceramic Spacer | 0.184 | 0.030 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $15.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI25 | 7022709 | Ceramic Post | 0.108 | 0.906 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- |
| VGI26 | S10009AD7 | 10mm ceramic spacer | 0.184 | 0.394 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $29.50‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI27 | --- | 6mm ceramic spacer | 0.184 | 0.236 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $18.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI29 | --- | Autospec Ceramic | 0.431 | 0.078 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $39.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI30 | --- | Autospec Ceramic | 0.431 | 0.156 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $20.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI31 | S100105AD3 | Ceramic Rod | 0.108 | 2.680 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $43.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI35 | TTIT050 | Trio Trap Insulator Tube | 0.102 | 0.334 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- |
| VGI36 | TRIT051 | Trio Repeller Insulator | 0.102 | 0.178 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $23.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI37 | TSLI053 | Trio Lens Insulator | 0.352 | 0.058 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $42.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI38 | TCSF050 | Filtered Rod Ceramic | 0.278 | 0.061 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $20.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI40 | 7024364 | Ceramic Spacer | 0.108 | 0.140 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- |
| VGI41 | M702717AD1 | Ceramic Post Insulator | 0.236 | 0.997 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $54.15‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI44 | 7022721 | Ceramic Rod 38.5mm | 0.108 | 1.517 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- |
| VGI45 | ML80115AD1 | Ceramic Rod 31.5mm | 0.108 | 1.247 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- |
| VGI46 | M702864AD1 | Ceramic Spacer 68.5mm | 0.108 | 2.700 | INACTIVE | ---‡10 or more: 5% off; 50 or more: 10% off. | --- |
| VGI47 | M700267AD5 | Ceramic Spacer 5mm | 0.184 | 0.197 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $18.00‡10 or more: 5% off; 50 or more: 10% off. | |
| VGI49 | Ceramic Spacer | 0.104 | 0.700 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $15.00‡10 or more: 5% off; 50 or more: 10% off. | ||
| VGI50 | stepped insulator | 0.276 | 0.983 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $30.00‡10 or more: 5% off; 50 or more: 10% off. | ||
| VGI51 | Ceramic Spacer | 0.277 | 0.551 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $27.00‡10 or more: 5% off; 50 or more: 10% off. | ||
| VGI52 | Ceramic Spacer | 0.276 | 0.198 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $26.00‡10 or more: 5% off; 50 or more: 10% off. | ||
| ‡ Quantity discount 10 or more: 5% off; 50 or more: 10% off. | |||||||
|
* Standard lead-time for non-stock items is approximately two weeks depending on the item. † Call for availability. | |||||||
