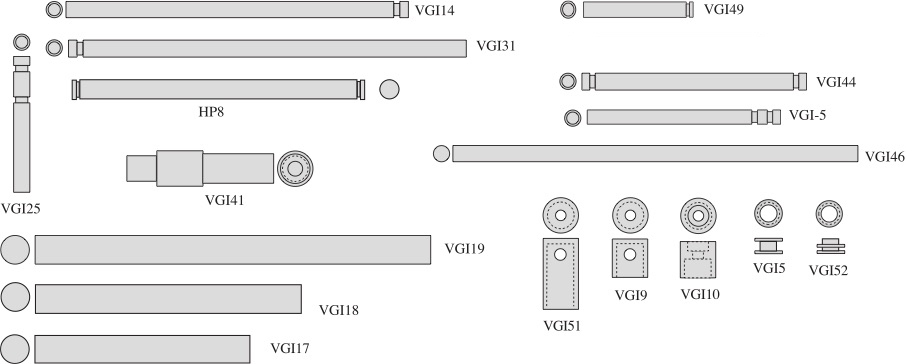

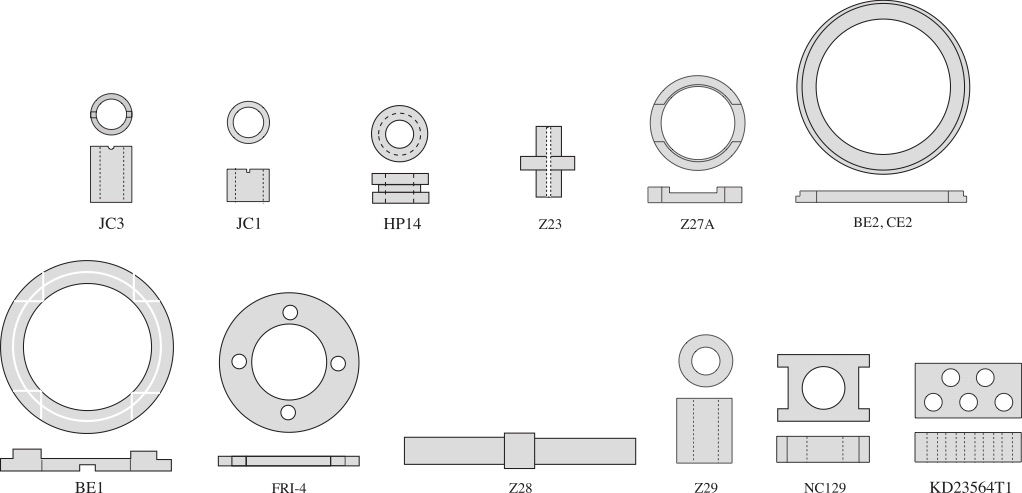

Drawings
All listed insulators are constructed from a high purity aluminum oxide ceramic. All dimensions are in inches and ± 0.002 inches.The following alumina ceramics are an assortment of shapes and sizes. Please refer to the drawings for additional details.
| Part No. | O.D.(in.) | I.D.(in.) | Thickness(in.) | Quantity In Stock |
Price EA |
Order | |
|---|---|---|---|---|---|---|---|
| Z23 | Rod with slot | ||||||
| .325 | - | .500 | DISCONTINUED | --- | --- | ||
| VGI49 | Ceramic Rod | ||||||
| .104 | .081 | .700 | DISCONTINUED | --- | --- | ||
| VGI25 | Ceramic Post | ||||||
| .108 | .081 | .906 | INACTIVE | --- | --- | ||
| VGI14 | Ceramic Rod | ||||||
| .108 | .081 | 2.283 | INACTIVE | --- | --- | ||
| VGI31 | Ceramic Rod | ||||||
| .108 | - | 2.680 | DISCONTINUED | --- | --- | ||
| VGI44 | Ceramic Rod 38.5mm | ||||||
| .108 | .081 | 1.517 | INACTIVE | --- | --- | ||
| VGI45 | Ceramic Rod 31.5mm | ||||||
| .108 | .081 | 1.247 | INACTIVE | --- | --- | ||
| VGI46 | Ceramic Spacer 68.5mm | ||||||
| .108 | - | 2.700 | INACTIVE | --- | --- | ||
| HP8 | Rod with Slotted Ends | ||||||
| .120 | - | 1.96 | INACTIVE | --- | --- | ||
| VGI5 | Grooved spacer | ||||||
| .184 | .114 | .078 | DISCONTINUED | --- | --- | ||
| VGI17 | Ceramic Rod | ||||||
| .191 | - | 1.378 | INACTIVE | --- | --- | ||
| VGI18 | Ceramic Rod | ||||||
| .191 | - | 1.772 | INACTIVE | --- | --- | ||
| VGI19 | Ceramic Rod | ||||||
| .191 | - | 2.637 | INACTIVE | --- | --- | ||
| VGI9 | Ceramic Cap | ||||||
| .236 | .070 | .256 | INACTIVE | --- | --- | ||
| VGI10 | Ceramic Tube | ||||||
| .236 | .072 | .242 | DISCONTINUED | --- | --- | ||
| VGI41 | Ceramic Post Insulator | ||||||
| .236 | .098 | .997 | DISCONTINUED | --- | --- | ||
| VGI52 | Ceramic Insulator | ||||||
| .236 | .110 | .198 | DISCONTINUED | --- | --- | ||
| JC3 | Ceramic Insulator | ||||||
| .276 | .203 | .375 | INACTIVE | --- | --- | ||
| VGI51 | Ceramic Insulator | ||||||
| .277 | .069 | .551 | DISCONTINUED | --- | --- | ||
| JC1 | Ceramic Insulator | ||||||
| .281 | .203 | .216 | INACTIVE | --- | --- | ||
| HP14 | Plate Insulator | ||||||
| .375 | .187 | .196 | DISCONTINUED | --- | --- | ||
| Z27A | Gate Insulator | ||||||
| .683 | .526 | .120 | DISCONTINUED | --- | --- | ||
| BE2 | Beryllium Oxide Ceramic | ||||||
| 1.15 | .895 | .078 | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | CALL | |||
| CE2 | Aluminum Oxide | ||||||
| 1.15 | .895 | .078 | DISCONTINUED | --- | --- | ||
| BE1 | Beryllium Oxide Lens Castle for Finn 4500 Source | ||||||
| --- | --- | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | CALL | |||
| FRI4 | Source End Insulator Ring for Finn 4000 Source | ||||||
| --- | --- | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | CALL | |||
| Z28 | Position Pin Insulator | ||||||
| --- | --- | --- | 4 | $39.00 | |||
| Z29 | ITD Electrode Spacer | ||||||
| --- | --- | --- | INACTIVE | --- | --- | ||
| NC129 | Repeller Support | ||||||
| --- | --- | --- | INACTIVE | --- | --- | ||
| KD23564T1 | Contractor Bloc | ||||||
| --- | --- | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | CALL | |||
|
