- HiPace® 300 Turbo Pump by Pfeiffer (This Page)
Hover over image to zoom
Price: 0
Product ID : PMP03992

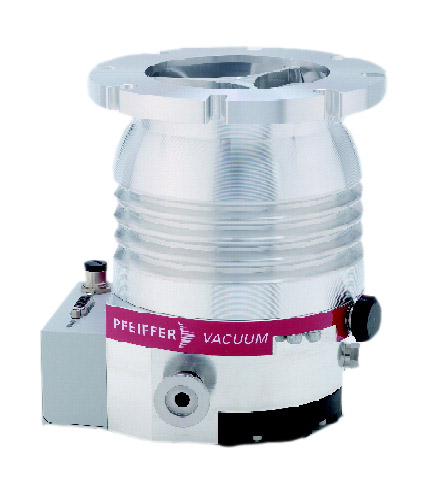

PMP03992 HIPACE 300 TURBO PUMP ISO 100 FLANGE INCLUDES CONTROLLER
Features
- Rugged, powerful turbopump with a pumping speed of up to 260 l/s for N2
- Integrated TC 110 drive electronics
- Ideal for analytical and industrial applications
- For installation in any orientation
- Extensive accessories expand the range of applications
Specs
| Technical Specs | |
|---|---|
| Bearing | Hybrid |
| Compression ratio for Ar | > 1 · 1011 |
| Compression ratio for H2 | 9 · 105 |
| Compression ratio for He | 1 · 108 |
| Compression ratio for N2 | > 1 · 1011 |
| Cooling method, optional | Air/water |
| Cooling method, standard | Convection |
| Cooling water consumption | 50 l/h |
| Cooling water temperature | 15-35 °C | 59-95 °F | 288-308 K |
| Electronic drive unit | with TC 110 |
| Flange (in) | DN 100 ISO-K |
| Flange (out) | DN 16 ISO-KF / G 1/4" |
| Fore-vacuum max. for N2 | 15 hPa | 11.25 Torr | 15 mbar |
| Gas throughput at full rotational speed for Ar | 2 hPa l/s | 1.5 Torr l/s | 2 mbar l/s |
| Gas throughput at full rotational speed for H2 | >14 hPa l/s | >10.5 Torr l/s | >14 mbar l/s |
| Gas throughput at full rotational speed for He | 8 hPa l/s | 6 Torr l/s | 8 mbar l/s |
| Gas throughput at full rotational speed for N2 | 5 hPa l/s | 3.75 Torr l/s | 5 mbar l/s |
| Interfaces | RS-485, Remote |
| Mounting orientation | in any orientation |
| Operating voltage | 24 (± 5 %) V DC |
| Permissible magnetic field max. | 5.5 mT |
| Protection category | IP 54 |
| Pumping speed for Ar | 255 l/s |
| Pumping speed for H2 | 220 l/s |
| Pumping speed for He | 255 l/s |
| Pumping speed for N2 | 260 l/s |
| Rotation speed ± 2 % | 60,000 min-1 |
| Rotation speed variable | 35-100 % |
| Run-up time | 3.5 min |
| Sound pressure level | ≤ 50 dB (A) |
| Ultimate pressure according to PNEUROP | < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar |
| Venting connection | G 1/8" |
| Weight | 6.5 kg | 14.33 lb |

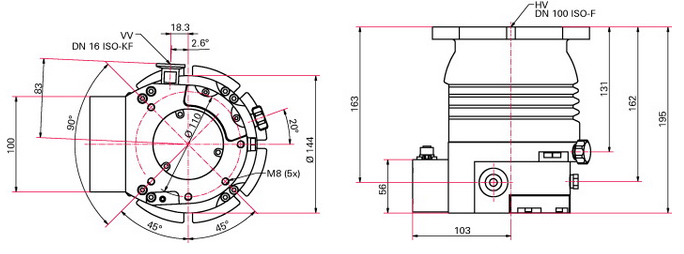

Dimensions
