Hover over image to zoom
Price: 0
Product ID : PMP03940A

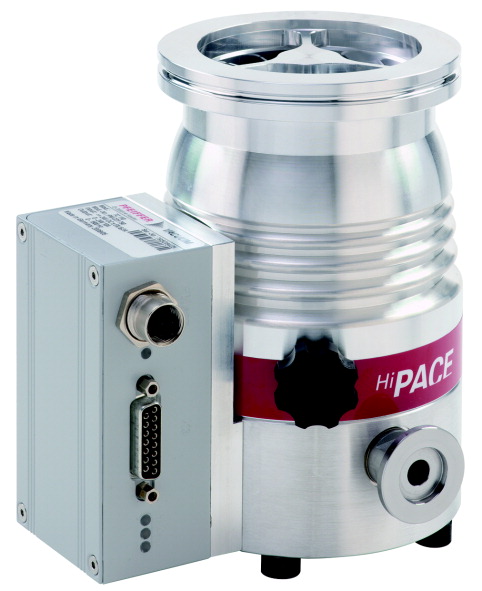

PMP03940A HIPACE80 TURBO DRAG PUMP DN63 ISO-K, 24V DC WITH TC 110
Features
- Small yet powerful turbo pump with a pumping speed of up to 67 l/s for N2
- Integrated TC 110 drive electronics
- For installation in any orientation
- Ideal for dependable systems integration
- Extensive accessories expand the range of applications
Specs
| Technical Specs | |
|---|---|
| Bearing | Hybrid |
| Compression ratio for Ar | > 1 · 1011 |
| Compression ratio for H2 | 1.4 · 105 |
| Compression ratio for He | 1.3 · 107 |
| Compression ratio for N2 | > 1 · 1011 |
| Cooling method, optional | Air/water |
| Cooling method, standard | Convection |
| Cooling water consumption | 75 l/h |
| Cooling water temperature | 5-25 °C | 41-77 °F | 278-298 K |
| Electronic drive unit | with TC 110 |
| Flange (in) | DN 63 ISO-K |
| Flange (out) | DN 16 ISO-KF / G 1/4" |
| Fore-vacuum max. for N2 | 22 hPa | 16.5 Torr | 22 mbar |
| Gas throughput at full rotational speed for Ar | 0.54 hPa l/s | 0.41 Torr l/s | 0.54 mbar l/s |
| Gas throughput at full rotational speed for H2 | 15.3 hPa l/s | 11.47 Torr l/s | 15.3 mbar l/s |
| Gas throughput at full rotational speed for He | 2.7 hPa l/s | 2.02 Torr l/s | 2.7 mbar l/s |
| Gas throughput at full rotational speed for N2 | 1.3 hPa l/s | 0.97 Torr l/s | 1.3 mbar l/s |
| Interfaces | RS-485, Remote |
| Mounting orientation | in any orientation |
| Operating voltage | 24 (± 5 %) V DC |
| Permissible magnetic field max. | 3.3 mT |
| Protection category | IP 54 |
| Pumping speed for Ar | 66 l/s |
| Pumping speed for H2 | 48 l/s |
| Pumping speed for He | 58 l/s |
| Pumping speed for N2 | 67 l/s |
| Rotation speed ± 2 % | 90,000 min-1 |
| Rotation speed variable | 50-100 % |
| Run-up time | 1.7 min |
| Sound pressure level | ≤ 48 dB (A) |
| Ultimate pressure according to PNEUROP | < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar |
| Venting connection | G 1/8" |
| Weight | 2.4 kg | 5.29 lb |

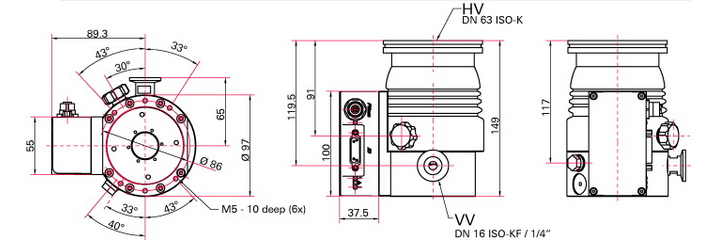

Dimensions
