Hover over image to zoom
Description

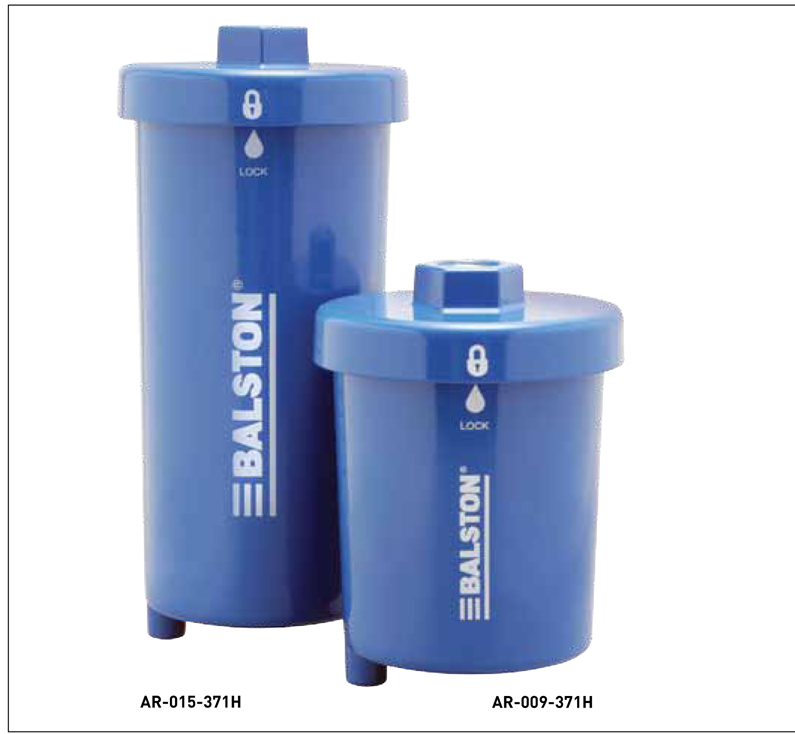

Balston Vacuum Pump Exhaust Filters remove 99.9% of 0.1 micron oil mist and smoke particles even when it is saturated with oil. The high efficiency filter cartridge continuously drains the collected liquid, allowing the user to recover expensive lubricating fluid. Filters are available for pumps with flow rates of 9 or 15 cfm
Features
- Eliminate 99.9% oil mist and smoke from vacuum pump exhaust
- Prevent oil accumulation in ductwork
- Protect vacuum pumps and reduce costly maintenance
- Flow rates of 9 cfm and 15 cfm
- Recover expensive lubricating oils, and automatically return filtered oil to pump
- Replaceable filter cartridges
- Easy to install and maintain
- Reduces vacuum pump noise output
Specs
| Principle Specifications | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | Port Size | Max. Flow Rate | Materials of Construction | Max. Temp | Max. Pressure | Shipping Weight | Dimensions | |||
| Head | Bowl | Internals | Seals | |||||||
| AR-009-371H | 3/4" NPT | 9 cfm | Alum. | Alum. | Alum./SS/Nylon | Viton | 300 °F (149 °C) | 15 PSIG | 1.0 lbs. (0.45 kg) | 3.95" Dia. x 5.13" H |
| AR-015-371H | 3/4" NPT | 15 cfm | Alum. | Alum. | Alum./SS/Nylon | Viton | 300 °F (149 °C) | 15 PSIG | 1.25 lbs. (0.57 kg) | 3.95" Dia. x 8.13" H |
| Part No. | Description | Quantity In Stock |
UOM | Price | Order |
|---|---|---|---|---|---|
| Filter | |||||
| AR009371H | Balston Vac Pump Exhaust Filter 9 CFM flow rate, 3/4in NPT port | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | EA | $361.50 | |
| AR015371H | Balston Exhaust Filter 15 cfm | DISCONTINUED | EA | --- | --- |
| Replacement Filter Cartridges | |||||
| BE200168371H | BALSTON FILTER CARTRIDGES FOR AR009-371H. BOX OF 10 | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | PK | $975.00 | |
| BE200248371H | MISSING PART NUMBER | CALL | |||
|
* Standard lead-time for non-stock items is approximately two weeks depending on the item. † Call for availability. | |||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
|||||
