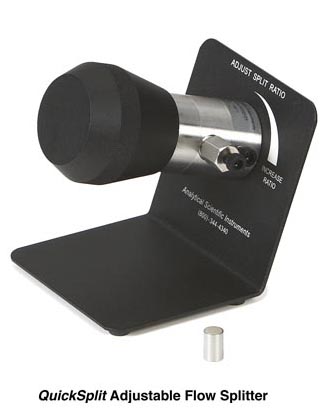

ASI QuickSplit™ Pre-Column Adjustable Flow Splitters
Hover over image to zoom

Description

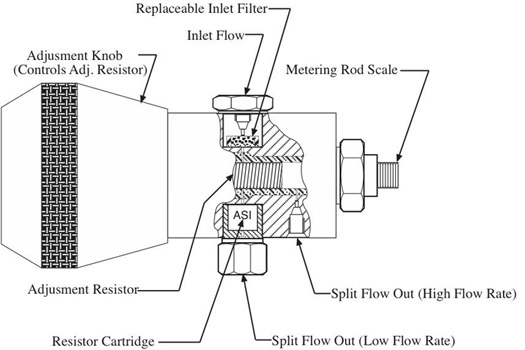

Unlike conventional splitters that use long lengths of capillary tubing, the ASI QuickSplit Adjustable Flow Splitter uses fluid resistors to achieve a wide range of split ratios. The flow path of the QuickSplit Adjustable Flow Splitter contains two fluid resistors that form a parallel flow path. The low flow rate stream passes through a fixed resistor cartridge, while the high flow rate stream passes through an adjustable fluid resistor (metering valve). The ratio of these two resistors creates the split flow ratio. The compact fluid resistor elements are designed as cartridges for easy replacement with resistance values (L2) rated in PSI/mL/min. Because of the extremely low internal volume of the fluid resistors, the solvent composition in both resistors at any instant in time is the same,and therefore viscosity changes associated with gradient runs do not impact the split ratio. Due to the rugged design, the split ratio repeatability is +/- 1 % of setting, and unlike alternative splitter valves or tees, will not be affected by actions that effect input flow such as turning the pump off and on, or pressure spikes. Because the QuickSplit Adjustable FlowSplitter incorporates a metering valve, split ratios can be changed frequently with flow changes that are stable and reproducible. The QuickSplit Adjustable Flow Splitter will create split ratios that are not affected by changes in solvent viscosity or pressure and provides direct real time control over split ratio optimization.

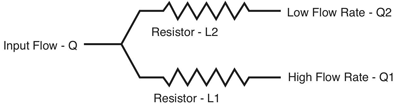

Schematic flow diagram of the QuickSplit™ Adjustable Flow Splitter
L1=Adjustable fluid resistor (metering valve)
L2=Fixed fluid resistor (resistance value varies depending on cartridge rating)
R=Split ration = Q1/Q2=Resistance ration =L2/L1

Since the flow rate is indirectly proportional to resistance, changing the resistance in either flow path results in a change to the split ratio. Changing resistance is accomplished by adjusting the metering valve on the high flow rate channel or exchanging the fixed fluid resistor cartridge in the low flow rate channel with a resistor cartridge which has a different resistance rating. Adjusting the metering valve is analogous to changing the capillary tubing length or diameter on conventional tee type flow splitters. The QuickSplit Adjustable Flow Splitter has a convenient mounting bracket and hand adjustment knob to control the split ratio. The split ratio is adjusted by turning the adjustment knob. Split ratios are increased by turning the adjustment knob clockwise, and decreased by turning the knob counter-clockwise. Split ratios are not affected by changes in solvent viscosities or pressure, which makes this product suitable for gradient applications as well as isocratic. The QuickSplit Adjustable Flow Splitter is shipped configured for either post-column or pre-column applications.

Pre-Column Details

Pre-column splitting is used for micro, capillary, and nano HPLC applications, where the flow from the pump is split from analytical flow rates down to microliter or nanoliter flows. It is important to note that even though the split ratio created by the splitter valve will remain constant, the split ratio will change when a HPLC column is installed. This is factored in to make sure the fluid resistor selected for the flow splitter provides the correct split ratio. When ordering a pre-column flow splitter, please provide the column flow rate and back pressure. If the inlet flow rate or column pressure specification is not provided, the pre-column flow splitters will be configured assuming a 0.5 mL/min. inlet flow rate and a pressure drop across the column of 1,500 psi.

Analytical range, 0.1 mL/min. to 1 mL/min. input flow
Part No. Description PRE-COLUMN RATIO Quantity
In Stock
UOM Price Order
Analytical Splitters
600PR1001 50:1 TO 1,000:1 SPLIT RATIO, ANALYTICAL PRE-COLUMN ADJUSTABLE FLOW SPLITTER, COMPLETE; ASSEMBLY DISCONTINUEDEA------
600PR1003 15:1 TO 300:1 SPLIT RATIO , ANALYTICAL PRE-COLUMN ADJUSTABLE FLOW SPLITTER, COMPLETE; ASSEMBLY DISCONTINUEDEA------
600PR1004 5:1 TO 100:1 SPLIT RATIO, ANALYTICAL PRE-COLUMN ADJUSTABLE FLOW SPLITTER, COMPLETE; ASSEMBLY DISCONTINUEDEA------
600PR1006 1:1 TO 20:1 SPLIT RATIO, ANALYTICAL PRE-COLUMN ADJUSTABLE FLOW SPLITTER, COMPLETE; ASSEMBLY DISCONTINUEDEA------
600PR10CS CUSTOM SPLIT RATIO, ANALYTICAL PRE-COLUMN ADJUSTABLE FLOW SPLITTER, COMPLETE; ASSEMBLY DISCONTINUEDEA------
Analytical Replacement Resistor Cartridges
600PR0001 FS CARTRIDGE. ANALYTICAL ADJUSTABLE FLOW SPLITTER RESISTOR CARTRIDGE,000 : 1 ; 50 : 1 TO 1 DISCONTINUEDEA------
600PR0003 FS CARTRIDGE. ANALYTICAL ADJUSTABLE FLOW SPLITTER RESISTOR CARTRIDGE ; 15 : 1 TO 250 : 1 DISCONTINUEDEA------
600PR0004 FS CARTRIDGE. ANALYTICAL ADJUSTABLE FLOW SPLITTER RESISTOR CARTRIDGE ; 5 : 1 TO 100 : 1 DISCONTINUEDEA------
600PR0006 FS CARTRIDGE. ANALYTICAL ADJUSTABLE FLOW SPLITTER RESISTOR CARTRIDGE ; 1 : 1 TO 20 : 1 DISCONTINUEDEA------
600PR00CS FS CARTRIDGE. ANALYTICAL ADJUSTABLE FLOW SPLITTER RESISTOR CARTRIDGE ; CUSTOM DISCONTINUEDEA------
Replacement Inlet Filters
60000632 ANALYTICAL POST/PRE-COLUMN ADJUSTABLE FLOW SPLITTER INLET FILTERS, 2 MICRON; X 0.063IN DIA., PKG 5 DISCONTINUEDPK------
600012510 SEMI-PREP AND PREP ADJUSTABLE FLOW SPLITTER INLET FILTERS, 10 MICRON X 0.125IN DIA.; , PKG 5 DISCONTINUEDPK------
60002820 PREP 600-PO60 ADJUSTABLE FLOW SPLITTER INLET FILTERS, STRAIGHT THRU HOLE, NO FILTER, PKG; 5 DISCONTINUEDPK------
Capillary Resistor
600PR00CP FS ACCESSORIES. ADJUSTABLE FLOW SPLITTER CAPILLARY RESISTOR, CUSTOM DISCONTINUEDEA------
Flow Measurement Kits
6000010S FS ACCESSORIES. FLOW MEASUREMENT KIT, RANGE 50 NL/MIN. TO 5 UL/MIN. DISCONTINUEDEA------
6000025S FS ACCESSORIES. FLOW MEASUREMENT KIT, RANGE 5 UL/MIN. TO 25 UL/MIN. DISCONTINUEDEA------
6000100S FS ACCESSORIES. FLOW MEASUREMENT KIT, RANGE 10 UL/MIN. TO 100 UL/MIN. DISCONTINUEDEA------
6000250S FS ACCESSORIES. FLOW MEASUREMENT KIT, RANGE 25 UL/MIN. TO 500 UL/MIN. DISCONTINUEDEA------
