Description

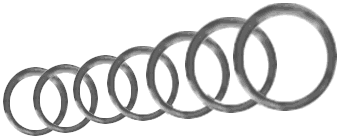

Scientific Instrument Services supplies all types and sizes of O-Rings. Listed below are the Viton® O-Rings used on the Finnigan mass spectrometers. For additional types and sizes, see the O-Ring pages in this catalog.
All dimensions in inches unless otherwise noted.
| Part No. | Material | Nominal ID (in) | Nominal Width (in) | Actual ID (in) | Actual Width (in) | VG # | pkg of | width (mm) | ID (mm) | Quantity In Stock |
UOM | Price | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V010 | O-Ring | |||||||||||||
| Viton(R) | 1/4 | 1/16 | 0.239 | 0.07 | --- | --- | --- | --- | 111 | EA | $0.43‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V011 | O-Ring | |||||||||||||
| Viton(R) | 5/16 | 1/16 | 0.301 | 0.07 | 5711018 | --- | --- | --- | 31 | EA | $0.45‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V012 | O-Ring | |||||||||||||
| Viton(R) | 3/8 | 1/16 | 0.364 | 0.07 | --- | --- | --- | --- | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | EA | $0.48‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V014 | O-Ring | |||||||||||||
| Viton(R) | 1/2 | 1/16 | 0.489 | 0.07 | 5711031 | --- | --- | --- | 11 | EA | $0.54‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V016 | O-Ring | |||||||||||||
| Viton(R) | 5/8 | 1/16 | 0.614 | 0.07 | --- | --- | --- | --- | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | EA | $0.58‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V017 | O-Ring | |||||||||||||
| Viton(R) | 11/16 | 1/16 | 0.676 | 0.07 | --- | --- | --- | --- | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | EA | $0.61‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V020 | O-Ring | |||||||||||||
| Viton(R) | 7/8 | 1/16 | 0.864 | 0.07 | --- | --- | --- | --- | DISCONTINUED | EA | --- | --- | ||
| V028 | O-Ring | |||||||||||||
| Viton(R) | 1 3/8 | 1/16 | 1.364 | 0.07 | --- | --- | --- | --- | 8 | EA | $1.41‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V035 | O-Ring | |||||||||||||
| Viton(R) | 2 1/4 | 1/16 | 2.239 | 0.07 | --- | --- | --- | --- | DISCONTINUED | EA | --- | --- | ||
| V111 | O-Ring | |||||||||||||
| Viton(R) | 7/16 | 3/32 | 0.424 | 0.103 | --- | --- | --- | --- | 9 | EA | $0.59‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V112 | O-Ring | |||||||||||||
| Viton(R) | 1/2 | 3/32 | 0.487 | 0.103 | 5711016 | --- | --- | --- | 13 | EA | $0.75‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V114 | O-Ring | |||||||||||||
| Viton(R) | 5/8 | 3/32 | 0.612 | 0.103 | --- | --- | --- | --- | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | EA | $0.79‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V115 | O-Ring | |||||||||||||
| Viton(R) | 11/16 | 3/32 | 0.674 | 0.103 | --- | --- | --- | --- | 8 | EA | $0.84‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V116 | O-Ring | |||||||||||||
| Viton(R) | 3/4 | 3/32 | 0.737 | 0.103 | --- | --- | --- | --- | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | EA | $0.84‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V119 | O-Ring | |||||||||||||
| Viton(R) | 15/16 | 3/32 | 0.924 | 0.103 | 5711009 | --- | --- | --- | DISCONTINUED | EA | --- | --- | ||
| V120 | O-Ring | |||||||||||||
| Viton(R) | 1 | 3/32 | 0.987 | 0.103 | --- | --- | --- | --- | 3 | EA | $1.21‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V121 | O-Ring | |||||||||||||
| Viton(R) | 1 1/16 | 3/32 | 1.049 | 0.103 | --- | --- | --- | --- | 4 | EA | $1.25‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V122 | O-Ring | |||||||||||||
| Viton(R) | 1 1/8 | 3/32 | 1.112 | 0.103 | --- | --- | --- | --- | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | EA | $1.34‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V130 | O-Ring | |||||||||||||
| Viton(R) | 1 5/8 | 3/32 | 1.612 | 0.103 | --- | --- | --- | --- | DISCONTINUED | EA | --- | --- | ||
| V206 | O-Ring | |||||||||||||
| Viton(R) | 1/2 | 1/8 | 0.484 | 0.139 | --- | --- | --- | --- | DISCONTINUED | EA | --- | --- | ||
| V214 | O-Ring | |||||||||||||
| Viton(R) | 1 | 1/8 | 0.984 | 0.139 | --- | --- | --- | --- | 7 | EA | $1.80‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V215 | O-Ring | |||||||||||||
| Viton(R) | 1 1/16 | 1/8 | 1.046 | 0.139 | 5711043 | --- | --- | --- | DISCONTINUED | EA | --- | --- | ||
| V236 | O-Ring | |||||||||||||
| Viton(R) | 3 1/4 | 1/8 | 3.324 | 0.139 | 5711027 | --- | --- | --- | 385 | EA | $5.09‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V237 | O-Ring | |||||||||||||
| Viton(R) | 3 3/8 | 1/8 | 3.359 | 0.139 | --- | --- | --- | --- | 51 | EA | $5.12‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V238 | O-Ring | |||||||||||||
| Viton(R) | 3 1/2 | 1/8 | 3.484 | 0.139 | --- | --- | --- | --- | 1 | EA | $5.17‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V155 | O-Ring | |||||||||||||
| Viton(R) | 4 | 3/32 | 3.987 | 0.103 | --- | --- | --- | --- | INACTIVE | EA | --- | --- | ||
| V157 | O-Ring | |||||||||||||
| Viton(R) | 4 1/2 | 3/32 | 4.487 | 0.103 | --- | --- | --- | --- | INACTIVE | EA | --- | --- | ||
| V244 | O-Ring | |||||||||||||
| Viton(R) | 4 1/4 | 1/8 | 4.234 | 0.139 | --- | --- | --- | --- | INACTIVE | EA | --- | --- | ||
| V246 | O-Ring | |||||||||||||
| Viton(R) | 4 1/2 | 1/8 | 4.484 | 0.139 | --- | --- | --- | --- | INACTIVE | EA | --- | --- | ||
| V258 | O-Ring | |||||||||||||
| Viton(R) | 6 | 1/8 | 5.984 | 0.139 | 5711004 | --- | --- | --- | DISCONTINUED | EA | --- | --- | ||
| V259 | O-Ring | |||||||||||||
| Viton(R) | 6 1/4 | 1/8 | 6.234 | 0.139 | --- | --- | --- | --- | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | EA | $7.62‡100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | |||
| V347 | O-Ring | |||||||||||||
| Viton(R) | 4 1/4 | 3/16 | 4.225 | 0.21 | --- | --- | --- | --- | DISCONTINUED | EA | --- | --- | ||
| VM323 | Metric Viton(R) O-Ring | |||||||||||||
| --- | --- | --- | --- | --- | --- | 10 | 3.0 | 32 | INACTIVE | PK | --- | --- | ||
| ‡ Quantity discount 100 or more: 20% off; 500 or more: 30% off; 1000 or more: 40% off. | ||||||||||||||
|
* Standard lead-time for non-stock items is approximately two weeks depending on the item. † Call for availability. | ||||||||||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||||||||||||
Viton® is a registered trademark of DuPont Dow Elastomers
Other sizes listed in the O Ring Section.
