Product ID : SIS20606

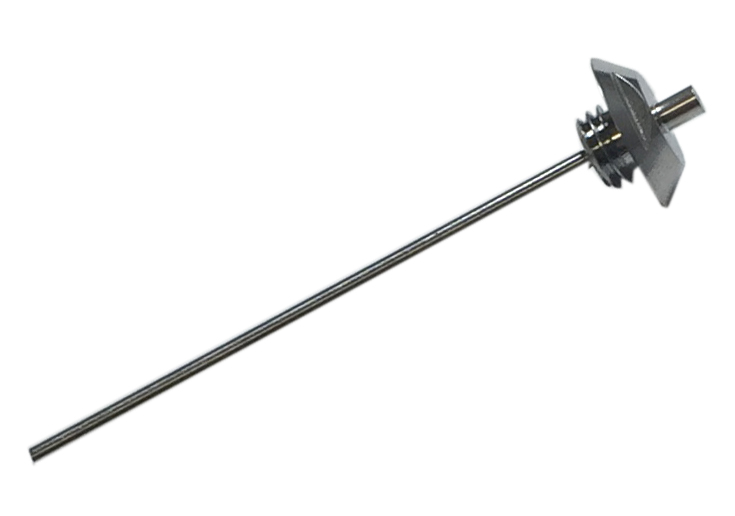

SIS20606 Options=Ion Transfer Tube Velos OEM=Thermo 7005-20606 SIS20606IS Options=Ion Transfer Tube Velos with 2 cm extension OEM=Thermo 7005-20606
- SIS #SIS20606 replaces Thermo p/n 70005-20606
used on the the LTQ Velos™, Velos Pro™, LTQ Orbitrap Velos™, Exactive Plus™, TSQ Endura™, and Orbitrap Fusion™.
- SIS #SIS20606IS includes an extended tubing for DART® and DESI applications (which have a 2-cm extended tubing).
- Additional tubing extension lengths are available - contact us for a quotation.
Cost savings alternative compared to OEM.

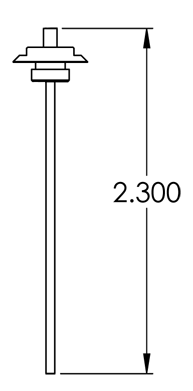

Drawings measured in inches.

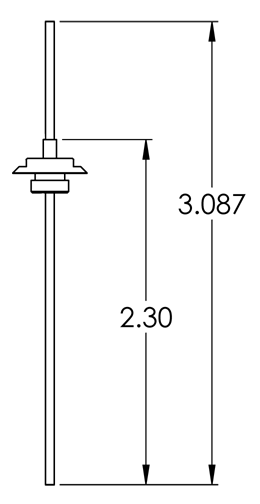

with 2 cm extended tubing
This is direct replacement for the ion transfer tube used on the Thermo "LTQ" line of mass spectrometers.
This is direct replacement for the ion transfer tube used on the Thermo TSQ Vantage line of mass spectrometers.
Nanospray / Electrospray tips available from Scientific Instrument Services, Inc.
