NE-1000 Single Syringe Pump

Home

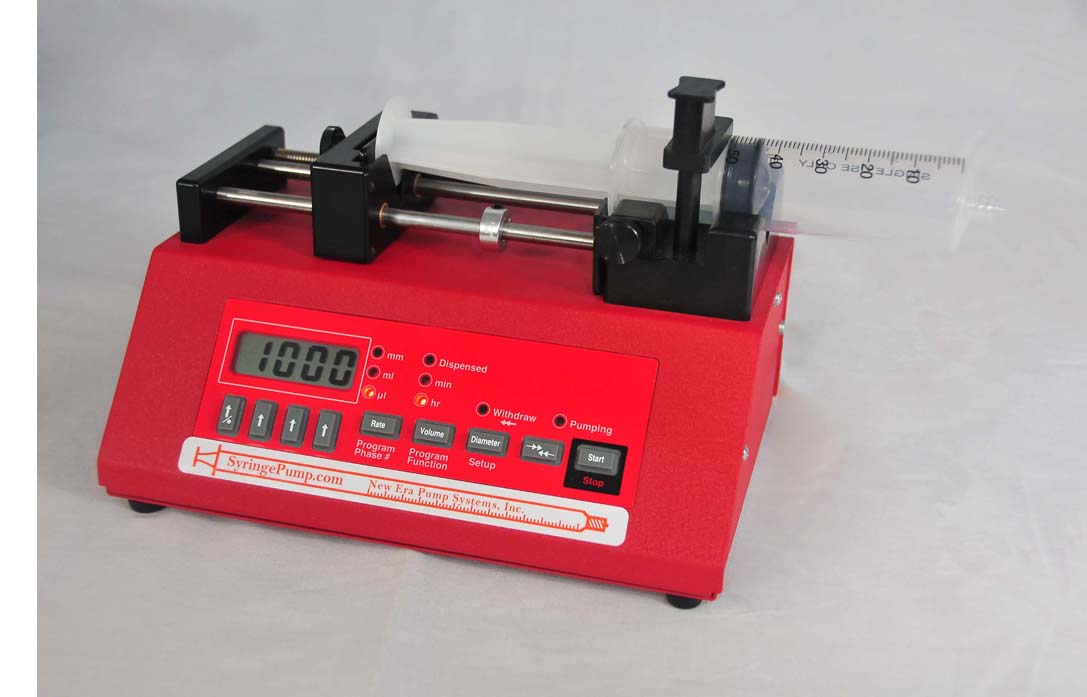

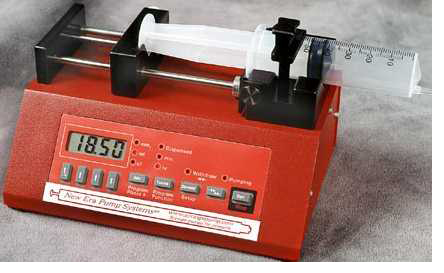

New Era NE-1000 Progammable Syringe Pump
Hover over image to zoom

Features

  • Fully programmable; automation capable
  • Holds 1 syringe up to 60 cc
  • Easy to use keypad interface
  • Space saving chassis: Foot print size of only 5 3/4" x 8 3/4"
    Won't take up unnecessary space on your laboratory or production bench
  • Operates stand-alone or from a computer
  • Infusion and withdrawal
  • Infusion rates from 0.73 uL/hr (1 cc syringe) to 2100 mL/hr (60 cc syringe)
  • Set a single pumping rate and/or dispensing volume
  • Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
  • Network, control, and monitor up to 100 pumps with one computer
  • Worldwide power supplies available
  • Motor stall detection
  • Dispensing accuracy of +/-1%
  • Unlimited lifetime technical support
  • Two year warranty
  • Detailed Features of the NE-1000 family
  • Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately

Options

Special Application: Continuous Infusion (Push-Pull) and Dual Syringe Pump
Using 2 NE-1000 pumps attached with a cable, one pump will infuse while the other pump refills or have simultaneous infusion

Model & Firmware Options:
  • Available in Higher Pressure (NE-1010), and Microfluidic (NE-1002X) and OEM (NE-500) versions
  • Firmware Upgrades available to enable Linear Pumping and to increase Pumping Program Memory
    • FW-1-X: X upgrade is Linear/Gradient flow rate ramping, and additional advanced programming possibilities
    • FW-1-X2: X2 upgrade includes all features of the X model plus increases the number of programmable phases from 41 to 340, and increases the max RS-232 baud rate to 38,400

Specs

Example Flow Rates (NE-1000)
Syringe Size (cc) Maximum Rate (mL/hr) Minimum Rate (µL/hr)
0.5 µL 25.49 0.001
1 mL 53.09 0.73
3 192.5 2.646
5 406.1 5.581
10 600 8.244
20 975.8 13.41
30 1282 17.63
60 2120 29.13

Model NE-1010 - Higher Pressure Variant (Motor Upgrade) Syringe Pump

Example Flow Rates (NE-1010)
Syringe Size (cc) Maximum Rate (mL/hr) Minimum Rate (µL/hr)
0.5 µL 91.83 0.001
1 mL 191.2 1.459
3 693.4 5.291
5 1462 11.17
10 2160 16.49
20 3514 26.82
30 4619 35.25
60 7635 58.26
Sample syringe configurations, can hold any size syringes below 60 cc. Maximum Syringe Size:

Although a minimum of a 60 cc syringe is specified, the pump can hold up to a 140 cc syringe but can only open up to about 120 cc lengthwise.

High Pressure Notes:

The NE-1000 produces about 15 lbs. of linear force at top speed and about 35lbs. at slow speeds. 10 mL/hr is an example of slow speed. The pressure that can be generated is relative to the syringe size. On a 60 mL syringe, this would roughly produce about 30 psi

The high pressure version, NE-1010, will approximately double the pumping force at the same speeds.

Part No. Description Power Supply Quantity
In Stock
Price
EA
Order
NE1000US One Channel Syringe Pump US 2$750.00
Qty
NE1000AS One Channel Syringe Pump Australian 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $750.00
Qty
NE1000BS One Channel Syringe Pump British img= 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $750.00
Qty
NE1000ES One Channel Syringe Pump European 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $750.00
Qty
NE1010US One Channel 100 lb Force Syringe Pump US 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $830.00
Qty
DUALNE1010AS Dual One Channel 100 lb Force Syringe Pump Australian 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $1670.00
Qty
DUALNE1010BS Dual One Channel 100 lb Force Syringe Pump British 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $1670.00
Qty
DUALNE1010ES Dual One Channel 100 lb Force Syringe Pump European 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $1670.00
Qty
DUALNE1010US Dual One Channel 100 lb Force Syringe Pump US 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $1670.00
Qty
NE1010AS One Channel 100 lb Force Syringe Pump Australian 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $830.00
Qty
NE1010BS One Channel 100 lb Force Syringe Pump British 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $830.00
Qty
NE1010ES One Channel 100 lb Force Syringe Pump European 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $830.00
Qty
NE1050US One Channel 80 cm/min Force Syringe Pump US 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $1125.00
Qty
NE1050AS One Channel 80 cm/min Force Syringe Pump Australian 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $1125.00
Qty
NE1050BS One Channel 80 cm/min Force Syringe Pump British 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $1125.00
Qty
NE1050ES One Channel 80 cm/min Force Syringe Pump European 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $1125.00
Qty
NE1060UP One Channel 173 cm/min Force Syringe Pump US 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $1275.00
Qty
NE1060AP One Channel 173 cm/min Force Syringe Pump Australian 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $1275.00
Qty
NE1060BP One Channel 173 cm/min Force Syringe Pump British 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $1275.00
Qty
NE1060EP One Channel 173 cm/min Force Syringe Pump European 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $1275.00
Qty
