KDS100Y Infusion Pump

KD Scientific KDS100Y Infusion Pump
Hover over image to zoom

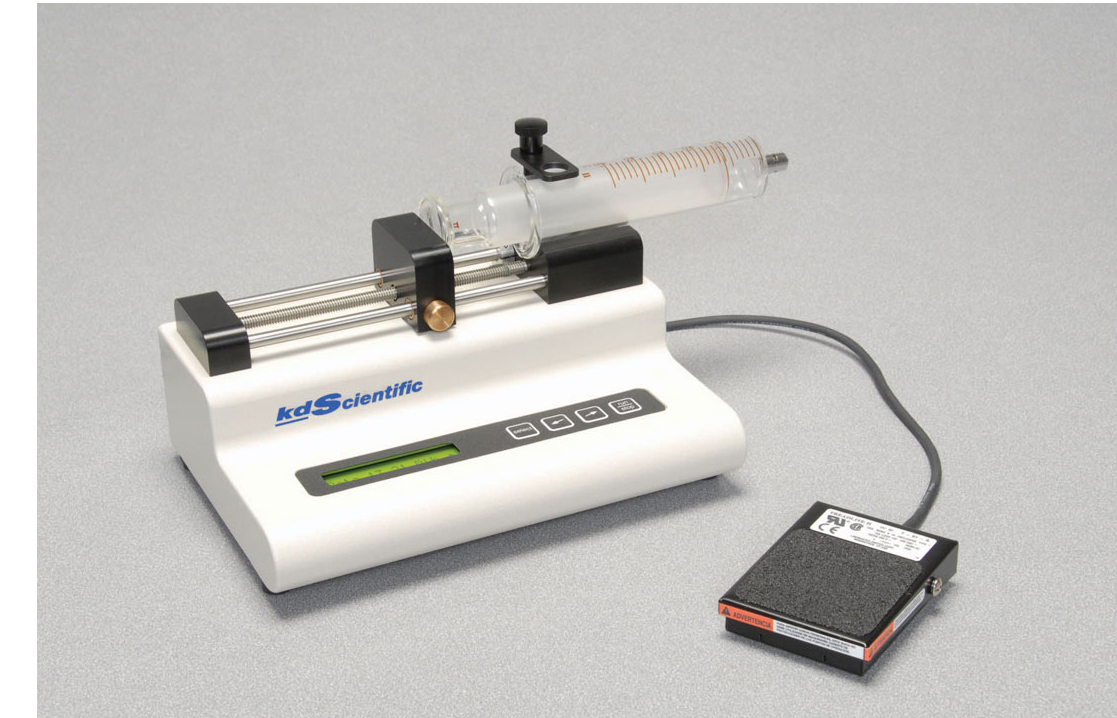

A new version of the rugged KDS 100 can now be remotely triggered with a footswitch or external switch. Starting and stopping dispense or infusion can be automated or remotely activated.

  • Single syringe 10 µl to 60 mL, any manufacturer
  • Simple menu-driven setup:
    • select syringe size from displayed table
    • set dispense volume
    • set dispense flow rate
  • Easy to read bright, backlight display
  • Dispense volume displayed and has automatic shutoff at completion
  • Volume and flow rate units (µl/hr or mL/hr) are selected automatically based on syringe size
  • Last settings stored in permanent memory
  • Button release of drive nut for easy syringe installation
  • Choice of run / stop after a power interruption


Pump Type Infusion
Maximum No. of Syringes One
Syringe Size 10 µl to 60 mL
  • 9" x 6" x 5"
  • 23 cm x 15 cm x 12 cm
Weight 4.5 lbs (2 kg)
Linear Force 20 lbs. (9 kg) min.
Advance Per Microstep 0.529 micron (1/2 step)
Max Step Rate (1/2 Step) 400 steps/sec
Min. Step Rate 1 step/30 sec.
Accuracy +/- < 1%
Reproducibilty +/- 0.1%
Audible Alarm (Optional)

Part No. Description Price
780100Y KDS 100Y with remote operation, KDS 100Y, 110V $1634.00
