Features
The standard Push-On Crimp Connector is made of beryllium copper and is a good general electrical connector for applications at up to 10 amps.
Electrical Connectors designed for use with thermocouples and are made with Chromel® or Alumel® metal for use with wires up to 0.050" dia.. They maybe used in most standard MIL-C-5015 connector plugs.
- Beryllium copper, Chromel or Alumel
- Operational to 400 °C in vacuum and 150 °C in air
- Max. current: 10 Amps

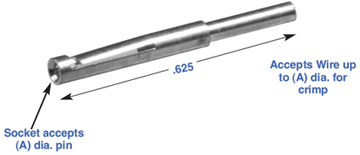

Dimensions
| PUSH ON CRIMP CONNECTOR | |||||
| Part No. | Material | Wire Size(A) | Quantity In Stock |
Price EA |
Order |
|---|---|---|---|---|---|
| A20442 | Beryllium Copper | .062" | 57 | $10.25†10 or more: 5% off; 50 or more: 10% off. | |
| B119112 | Beryllium Copper | .050" | DISCONTINUED | ---†10 or more: 5% off; 50 or more: 10% off. | --- |
| B112882 | Beryllium Copper | .032" | 107 | $10.75†10 or more: 5% off; 50 or more: 10% off. | |
| B112595 | Chromel Thermo | .050" | INACTIVE | ---†10 or more: 5% off; 50 or more: 10% off. | --- |
| B112596 | Alumel Thermo | .050" | INACTIVE | ---†10 or more: 5% off; 50 or more: 10% off. | --- |
| † Quantity discount 10 or more: 5% off; 50 or more: 10% off. | |||||
| * Call for availability. | |||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
|||||
