EXP®2 Hand-Tight Fitting with Ti-LOK™ Ferrule for PEEKsil™

Home
Optimize Technologies - EXP®2 Fitting Kit for PEEKsil™
Hover over image to zoom

Description

The EXP2 Fittings with Ti-LOK Ferrules offer UHPLC connection for 1/16" and 1/32" PEEKsil tubing that seal to 15,000+ psi - depending on the tubing I.D. For example, 50μm PEEKsil tubing can be hand tightened to over 20,000 psi. These fittings are ideal for making Nano HPLC and UHPLC connections and easily fit into tight spaces such as injection valves, column couplers, sample loops and column ovens.

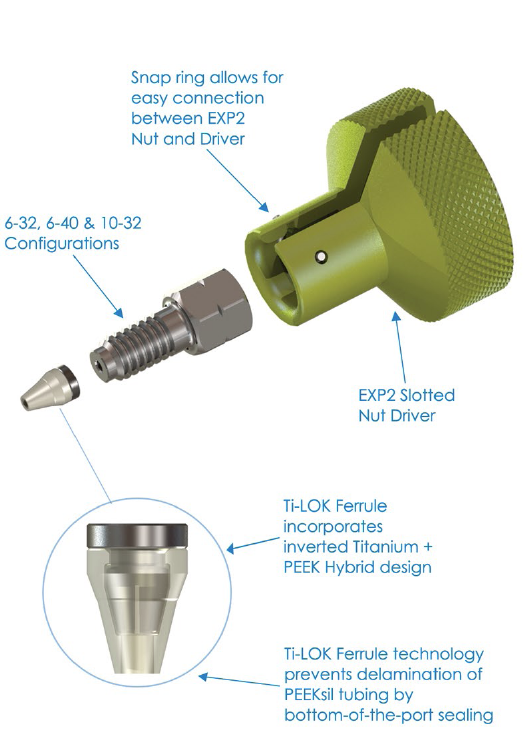

The EXP2 Titanium hybrid Ti-LOK ferrules combine the robustness of titanium and the sealing capability of PEEK. Utilizing a unique inverted geometric design, the ferrules firmly press the PEEKsil tubing against the tube stop of any instrument port, creating a zero dead volume (ZDV) connection. The titanium portion of the ferrule does not permanently swage to the tubing, allowing for many repeat connection and the ability to adjust the tubing to different port depths. Included with the Ti-LOK ferrules are the new EXP2 3/16" hex head nuts and EXP2 Driver is a small, easy to use knurled torque driver which snaps on to the nuts for hand-tightening and loosening. The XP2 Driver is slotted and can be removed from the nut and tubing after use. EXP2 Ti-LOK fittings are currently available as kits with EXP2 nuts, Ti-LOK ferrules and EXP2 Driver.

The combination of bottom-of-the-port sealing, Titanium Hybrid technology and precision manufacturing make the EXP2 Fittings an unbeatable choice for any standard or nano UHPLC and UHPLC/MS applications.

Features

  • Rated Hand-Tight to 20,000psi (1,400+ bar)
  • Auto-adjusting, zero-dead-volume connection
  • Extremely robust one-piece ferrule design
  • Intended for many repeat uses
  • Cost efficient with replaceable components
  • Perfect for standard or nano UHPLC and UHPLC/MS
  • Made in USA
Part No. Description Quantity
In Stock
UOM Price Order
2 packs
151904930 EXP2 6-32 FITTING KIT FOR 1/32IN OD PEEKSIL TUBING (2 TI-LOK FERRULES, 2 EXP2 NUTS & 1; EXP2 DRIVER) DISCONTINUEDEA------
151904931 EXP2 6-40 FITTING KIT FOR 1/32IN OD PEEKSIL TUBING (2 TI-LOK FERRULES, 2 EXP2 NUTS & 1; EXP2 DRIVER) DISCONTINUEDEA------
152004932 EXP2 10-32 FITTING KIT FOR 1/16IN OD PEEKSIL TUBING (2 TI-LOK FERRULES, 2 EXP2 NUTS & 1; EXP2 DRIVER) DISCONTINUEDEA------
152004933 EXP2 10-32 FITTING KIT FOR 1/16IN OD SS TUBING (2 TITANIUM HYBRID FERRULES, 2 EXP2 NUTS; & 1 EXP2 DRIVER) DISCONTINUEDPK------
151904961 EXP2 6-40 FITTING KIT FOR 1/32IN OD SS TUBING (2 TITANIUM HYBRID FERRULES, 2 EXP2 NUTS & 1; EXP2 DRIVER) DISCONTINUEDPK------
151904958 EXP2 6-32 FITTING KIT FOR 1/32IN OD SS TUBING (2 TITANIUM HYBRID FERRULES, 2 EXP2 NUTS & 1; EXP2 DRIVER) DISCONTINUEDPK------
10 packs
151904929 EXP2 6-32 FITTING KIT FOR 1/32IN OD PEEKSIL TUBING (10 TI-LOK FERRULES, 10 EXP2 NUTS & 1; EXP2 DRIVER) DISCONTINUEDEA------
151904927 EXP2 6-40 FITTING KIT FOR 1/32IN OD PEEKSIL TUBING (10 TI-LOK FERRULES, 10 EXP2 NUTS & 1; EXP2 DRIVER) DISCONTINUEDEA------
152004920 EXP2 10-32 FITTING KIT FOR 1/16IN OD PEEKSIL TUBING (10 TI-LOK FERRULES, 10 EXP2 NUTS &; 1 EXP2 DRIVER) DISCONTINUEDEA------
152004924 EXP2 10-32 FITTING KIT FOR 1/16IN OD SS TUBING (10 TITANIUM HYBRID FERRULES, 10 EXP2; NUTS & 1 EXP2 DRIVER) DISCONTINUEDPK------
151904962 EXP2 6-40 FITTING KIT FOR 1/32IN OD SS TUBING (10 TITANIUM HYBRID FERRULES, 10 EXP2 NUTS &; 1 EXP2 DRIVER) DISCONTINUEDPK------
151904959 EXP2 6-32 FITTING KIT FOR 1/32IN OD SS TUBING (10 TITANIUM HYBRID FERRULES, 10 EXP2 NUTS &; 1 EXP2 DRIVER) DISCONTINUEDPK------
