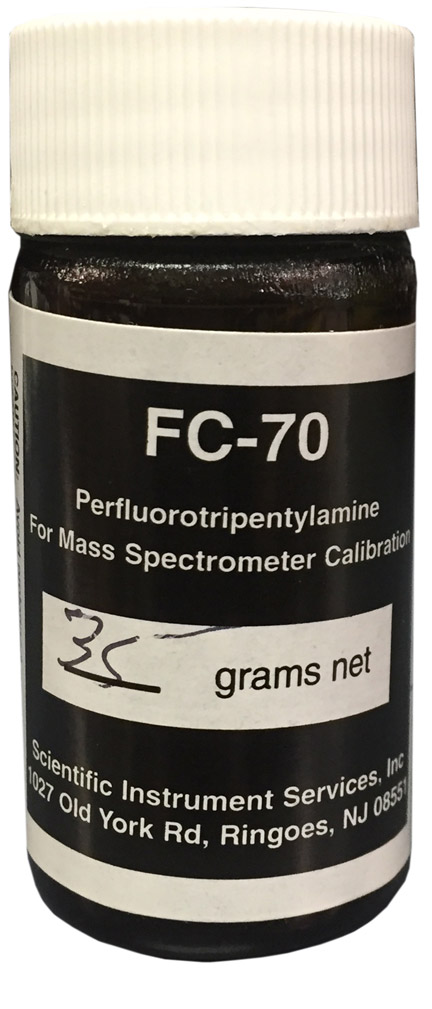

FC-70 (Perfluorotripentylamine) Calibration Compound

Home
FC-70 (Perfluorotripentylamine) Calibration Compound
Hover over image to zoom
Price: 71
Product ID : FC7035
FC7035 Bottle Size=35 grams Bottle of FC-70 FC70100 Bottle Size=100 grams Bottle of FC-70

This new calibration compound is an ideal supplement to FC-43 and will be extremely useful for calibration in the 500 to 600 mass range. FC-70 is a liquid at room temperature and can be used in the same manner as FC-43. FC-70 is available in bottles of 35 and 100 grams.

Specifications

FC-70 Perfluorotripentylamine
Molecular Weight 821
Formula(CF3(CF2)4)3N
Boiling Point 215 degrees C
Density 25 degrees C - 1.94

Spectra

Mass Spec Calibration Spectra for FC-70

EI Positive Ion Spectra for FC-70

m/z  Rel. Abundance        m/z   Rel. Abundance
---  --------------        ---   --------------
 50        0.8             181       14.0
 69      100.0             182        0.6
 70        1.2             219        0.8
 93        1.1             231        0.8
100        9.1             269       19.8
114        3.5             270        1.1
119       10.9             314        3.3
120        0.6             364        0.2
131       14.0             514        0.8
132        0.4             526        0.4
151        1.2             564        0.8
169        3.3             602        0.4
Methane Negative Ion CI Spectra for FC-70
m/z  Rel. Abundance        m/z   Rel. Abundance
---  --------------        ---   --------------
219      1.97              552       100.00
281      1.50              553        11.99
314      1.99              564         4.04
333      4.92              576         1.48
352      4.96              583         1.84
383      1.49              602         3.37
395      1.36              614         7.08
412      1.50              626         2.23
414      1.95              633         1.47
433      4.06              664         4.51
450      1.17              676         1.31
452      3.39              683         1.18
464      1.50              733         1.54
476      1.87              745         4.54
483      1.90              783        14.47
502      3.20              784         2.37
514     12.87              833         1.40
515      1.66               -            -
526      1.30
533      4.45

SDS

Click here to view SDS
