Description
A line of Hudson Surface Technology cost-effective, high-performance tools for MALDI-TOF (Matrix Assisted Laser Desorption Ionization - Time of Flight) Mass Spectrometry and proteomics. Get better results, in less time, at less cost and greater convenience with HST products.
μFocus technology is at the heart of HST's product line for MALDI-TOF MS. Unique, proprietary technology produces thin, disposable, single-use stainless steel targets with hydrophilic islands (μFocus spots) on a hydrophobic surface. The results is precise, concentrated, deposition of sample in precise, well-formed spots.
μFocus targets give you a precisely formed dried droplet spot of predetermined size. You can work with larger (1700-2000 μm) spots and use standard spotting techniques. You can also work with much smaller spots (700-900 μm) that allow you to reduce the amount of matrix used, to maintain optimum matrix to analyte ratio with less concentrated or smaller analyte samples. Many users report 5-10x increases in sensitivity. Because μFocus spots are uniform, you also see improvements in spot-to-spot reproducibility, making quantitative analysis and fingerprint assays more reliable.
Features
µFocus® MALDI Targets
Patterned hydrophobic and hydrophilic surfaces focus sample deposits to predefined spots with predefined sizes.Controlled size deposits reduce matrix demand, increasing ana-alyte/matrix ratios.
- Sensitivity
- Productivity
- Economy
- High Throughout
- Imaging
You Get: increased signal/noise and greater instrument sensitivity.
Low-cost manufacturing on thin stainless steel plates translates into high-performance in a economical, single-use target.
You Get: Saving and productivity - more experiments in progress, less time spent cleaning plates, reduced costs for heavy sample traffic.
µFocus MALDI Sample Plates
Hydrophobic & Hydrophilic Patterning
Small, Uniform Matrix Deposition
Reduced Matrix - Increased Analyte Concentration
Single use Pricing - No Ghosting, No Clean up
Part No. | Series | Type | Dim | Spot Size | Thickness | pkg of | Picture | Quantity In Stock |
UOM | Price | Order | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
µFocus | ||||||||||||
PFS2407000 | MALDI-TOF Supplies | |||||||||||
Bruker Shimadzu Jeol | 384 circles | 114.5x77mm | 700μm | 0.3t | 10 | ![]() |
DISCONTINUED | PK | --- | --- | ||
PFS2409000 | MALDI-TOF Supplies | |||||||||||

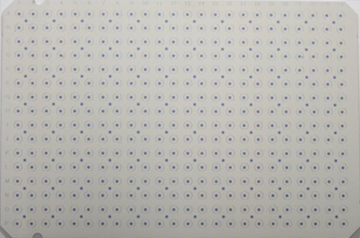

Bruker Shimadzu Jeol | 384 circles | 114.5x77mm | 900μm | 0.3t | 10 | ![]() |
DISCONTINUED | PK | --- | --- | ||
PFS2420000 | MALDI-TOF Supplies | |||||||||||
Bruker Shimadzu Jeol | 384 circles | 114.5x77mm | 2000μm | 0.3t | 10 | ![]() |
DISCONTINUED | PK | --- | --- | ||
PFB1107000 | MALDI PLATES BRUKER MICROFLEX 96 CIRCLES 700UM 53.8X40.8MM; 10/PK | |||||||||||
--- | --- | --- | --- | --- | --- | DISCONTINUED | PK | --- | --- | |||
PFB1124000 | MALDI PLATES 10/PK BRUKER MICROFLEX 96 CIRCLES 2400UM; 53.8X40.8MM | |||||||||||
--- | --- | --- | --- | --- | --- | DISCONTINUED | PK | --- | --- | |||
Accessories | ||||||||||||
HMB0101000 | MALDI-TOF Supplies | |||||||||||
Bruker Shimadzu Jeol | Bruker Magnetic Holder (6 magnet) | 124.8x83mm | 100μm | 3.0t | 1 | ![]() |
DISCONTINUED | EA | --- | --- | ||
HMB0201000 | MALDI-TOF Supplies | |||||||||||
Bruker Shimadzu Jeol | Bruker Magnetic Holder (9 magnet) | 124.8x83mm | 100μm | 3.0t | 1 | ![]() |
DISCONTINUED | EA | --- | --- | ||
HMS0101000 | MALDI-TOF Supplies | |||||||||||

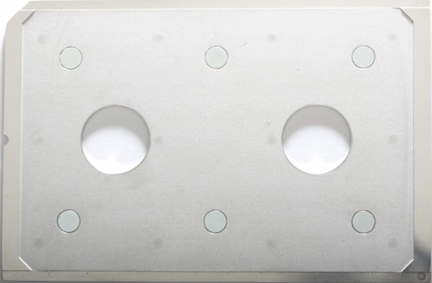

Bruker Shimadzu Jeol | Shimadzu Magnetic Holder | 126x78.2mm | 2.0t | 1 | ![]() |
DISCONTINUED | EA | --- | --- | |||
HMJ0101000 | MALDI-TOF Supplies | |||||||||||

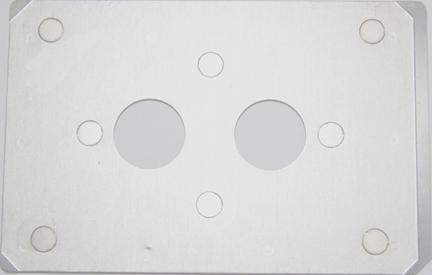

Bruker Shimadzu Jeol | JEOL Magnetic Holder | 1 | ![]() |
DISCONTINUED | EA | --- | --- | |||||
* Call for availability. | ||||||||||||
![]() |
