Description

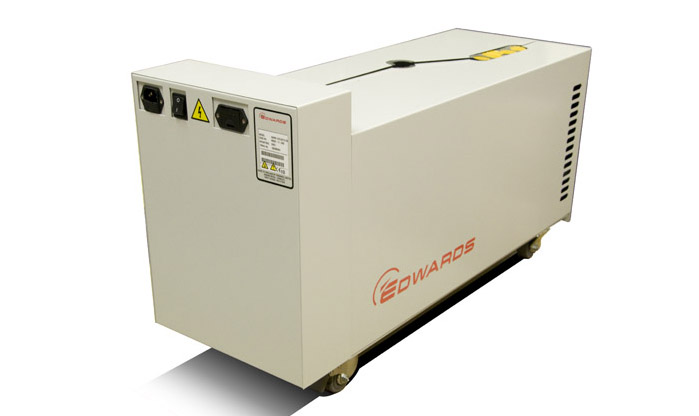

Designed for use in a laboratory or an industrial environment, Edwards new acoustic enclosure is compatible with all EM and RV pumps ranging up to the E2M28 series. The acoustic enclosure reduces the noise level by up to 7dBA and incorporates internal fans to ensure adequate air cooling is provided to the pump.
The design of the enclosure allows for it to b easily assembled or disassembled without tooling. A removable front panel also allows for quick access to the oil sight glass. If required a side panel can be removed allowing access to the oil filler cap. The enclosure is powered via a power cable fitting into an IEC 320 socket.
Features
- Simple slot together assembly means no tools are required
- Removable panels for access to oil sight glass and oil filler cap for easy maintenance
- Designed to attenuate the noise of an E2M28 by 7dBA
- Oil can be drained without removing the pump
- Integrated cooling fans to maintain optimum pump running temperature
- Castor wheels with brakes for easy maneuverability
- Fully compatible with Edwards inlet traps and exhaust mist filters with extension spools (available separately)
- Over temperature buzzer alarm with battery backup
Specs
| Technical Data | ||
|---|---|---|
| Mass | 22.5 kg | |
| Electrical supply for cooling fans | ||
| Voltage | 100 - 120V / 200 - 240V | |
| Fuse Rating | 2.5A Type T 20mm | |
| Connector | IEC320 socket | |
| Part No. | Description | Quantity In Stock |
Price EA |
Order |
|---|---|---|---|---|
| NRD317000 | ENCLOSURE RV/E2M28 115V | DISCONTINUED | --- | --- |
| NRD318000 | ENCLOSURE RV/E2M28 240V | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $3122.00 | |
| A50505000 | UK 3 PIN PUMP CORD | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $53.20 | |
| A50506000 | NORTHERN EUROPE PLUG | DISCONTINUED | --- | --- |
| A50507000 | N AMERICAN/JAPAN CORD | 1 | $39.41 | |
| A50508000 | UNIVERSAL POWER CORD INTL | DISCONTINUED | --- | --- |
|
* Call for availability. † Standard lead-time for non-stock items is approximately two weeks depending on the item. | ||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||
