Price: 53.55
Product ID : KA1

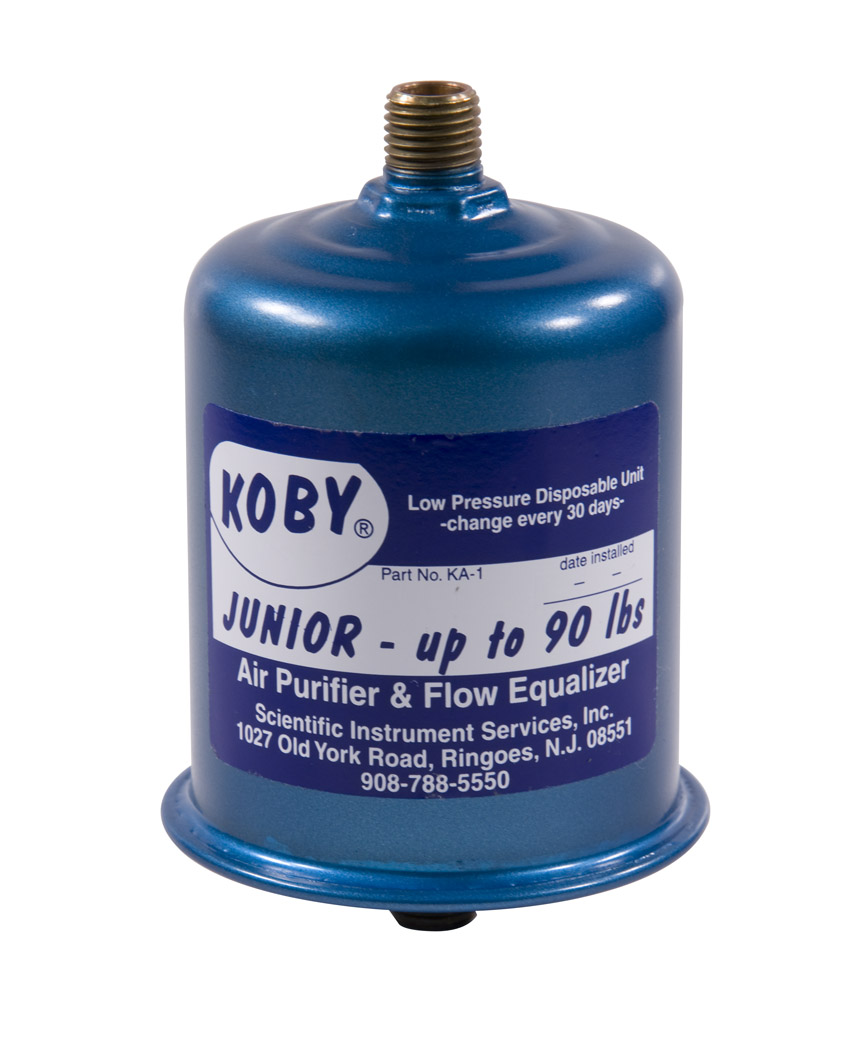

KA1 Koby Vacuum Pump Air Filter, Replacement
Applications
Unit provides high efficiency filtration at low operating pressures with minimal pressure drop. Highly recommended for the removal of low concentrations of vapors and aerosols. Commonly used in conjunction with spray guns, halogen lead detectors, portable compressors, CO2 lasers, pneumatic calibrators, air breathing apparatus, precision instruments, vacuum pumps, air motors, beverage dispensing equipment, oil change arts, and similar equipment.
Model available with impregnated carbon for removal of arsine, hydrogen sulfide, boron, phosphorous, chlorine, acids, and other harmful contaminants not removed by standard activated carbon. Specify model JRCEIC.
Features
- Ideal for portable equipment & instruments
- Completely disposable
- Maintenance free
- Made with adsorbent activated charcoal
- Particle filtration to 0.5 microns
Specs
| Technical Specifications | ||
|---|---|---|
| Air Filter Model | Maximum Oil Adsorption Capacity | Air Flow 90 psig @ 2 psid (SCFM) |
| Junior | 1.5 oz. | 15.5 |
| JRCIEC | 1.8 oz. | 14.8 |
1/4" Pipe to 1/2" Hose Fitting 1/4" Pipe to 1/2" Hose Fitting
1/4" Pipe to 3/4" Hose Fitting Standard fillings on filters are 1/4" NPT.
1/4" Pipe to 1" Hose Fitting Standard fillings on filters are 1/4" NPT.
1/4" NPT, 304 Stainless Steel Koby Fitting in Stainless Steal
