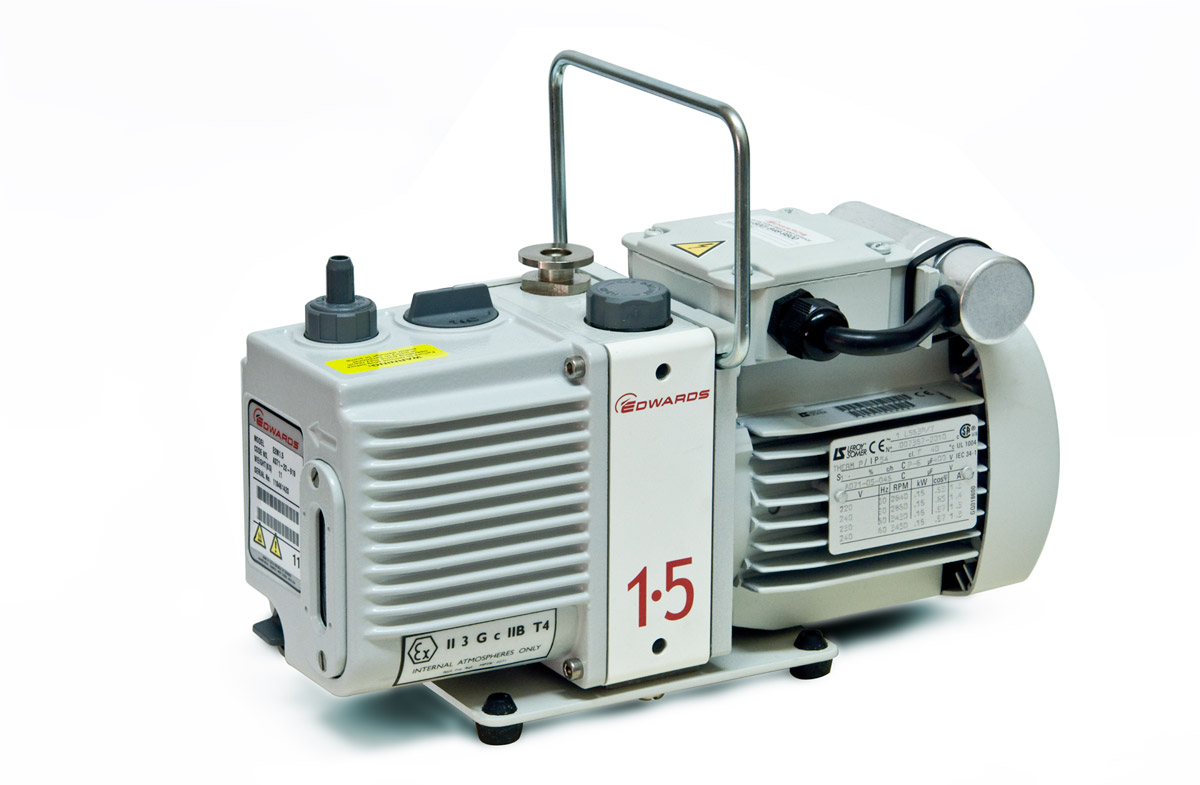

This miniature two stage pump features an alternative inlet connection position at the side of the pump so that overall installation height can be reduced to a minimum when required. The interstage version features an additional pumping port to provide a rough vacuum for auxiliary duties. This pump is widely used on mass spectrometers including the Agilent/HP 5971, 5972, 5973, 5975, and 5977.
|Number of Stages||2|
|Displacement (swept volume) 60 Hz||1.3 ft 3min-1 (2.2 m3h-1)|
|Speed (Pneurop 6602) 60 Hz||1.2 ft 3min-1 (2.0 m3h-1)|
|Ultimate vacuum (total pressure)
-gas ballast closed
-with gas ballast
1.1x 10-3 torr (2.5 x 10-3mbar)
1.9 x 10-2 torr (2.5 x 10-2mbar)
|Inlet connection||NW10 flange|
|Outlet connection||Nozzle 11 mm external diameter removable from hole tapped 3/8" BSP|
|Maximum allowed pressure at outlet||7 psig (0.5 bar gauge)|
|Maximum inlet pressure for water vapor||11 torr (15 mbar)|
|Maximum water vapor pumping rate||0.16 kgh -1|
|Motor power 60 Hz||1/4 hp (0.16 kW)|
|Oil Capacity – maximum
| 0.28 liter |
|Weight||22 lbs (10 kg)|
