- Identify unknown compounds from EI (GC/MS) and MS/MS spectra, using library searching.
- Hundreds of thousands of EI MS spectra, MS/MS spectra, GC data & retention indices, and/or chemical names/structures.
- World's most widely used and trusted mass spectral reference library.
- Search software included. Supports most MS software systems (Agilent ChemStation/MassHunter, Thermo Xcalibur, Shimadzu GCMS Solutions, Waters MassLynx, Thermo Xcalibur, PE TurboMass, etc.).
The NIST 17 mass spectral library, the successor to the NIST 14, is a fully evaluated collection of electron ionization (EI) and MS/MS mass spectra, with chemical and GC data, plus search software to identify your own unknown spectra. It is a product of a more than three decade, comprehensive evaluation and expansion of the world's most widely used mass spectral reference library by a team of experienced mass spectrometrists at the National Institute of Standards and Technology (NIST) in which each spectrum was examined for correctness.
NIST 17 Components
NIST 17 is not just a mass spectral library. It contains these components:
- Electron ionization (EI) mass spectral library - 306,622 carefully evaluated spectra of 267,376 unique compounds, with identifications, nearly all with chemical structures. You may search names of NIST compounds online.
- MS/MS library - 652,475 spectra: 176,594 ion trap spectra for 120,346 different ions of 14,351 compounds, and 475,881 collision cell spectra (qtof and tandem quad) spectra for 39,158 different ions of 14,073 compounds. (Also available separately as the NIST MS/MS Database.)
- Gas Chromatography (GC) data library - 404,045 retention index values (Kovats/Lee) for 99,400 compounds (72,361 in the EI library), covering both polar and non-polar columns. Includes retention indices with GC column conditions and literature citations. (Also available separately as the NIST GC Database.)
- NIST MS Search software - software for searching (identifying) compounds from their mass spectra and for browsing mass spectral libraries. Also includes MS interpretation programs for analyzing mass spectra on the basis of chemical structure, molecular formula, isotopic patterns, and more.
- AMDIS software - software for deconvoluting gas/liquid chromatograms
- Documentation - Approximately 50 page printed and electronic manual on setup and basic usage. Additional information is in the help files.
Libraries are formatted the binary format suitable for use alone or by the NIST MS Search software (and AMDIS). Additional instrument-specific formats (e.g. Agilent ChemStation and MassHunter) are available separately to permit library searching directly within your GC/MS or LC/MS data system.
With each purchase, we ship a DVD (installs software, libraries, and documentation) and a printed manual. If you don't have a DVD drive, you can electronic download using the web address and license number on the DVD label.
Online Search (NIST)
To check for compounds in the NIST library, you may search names of compounds online.
Statistics for NIST versions are given below.
|NIST 17||NIST 14||NIST 11||NIST 08||NIST 05||NIST 02|
|EI Spectral Library:
Number of EI Spectra
(with separable collection of 717 spectra of 672 salts)
|Number of Unique Compounds||267,376||242,466||212,961||192,108||163,198||147,198|
|Retention Index (Kovats/Lee)||404,045 index values for 99,400 compounds (72,361 in the EI library)||387,463 index values for 82,868 compounds (56,216 in the EI library)||346,757 index values for 70,838 compounds (38,648 in the EI library)||224,038 index values for 44,008 compounds (21,847 in the EI library), now on both polar and non-polar columns.||121,112 index values for 25,893 compounds (12,452 in the EI Library), on only non-polar columns.||NONE|
|MS/MS Library||652,475 spectra: 176,594 ion trap spectra for 120,346 different ions of 14,351 compounds, and 475,881 collision cell spectra (qtof and tandem quad) for 39,158 different ions of 14,073 compounds.||234,284 spectra: 51,216 ion trap spectra for 42,126 different ions of 8,171 compounds, and 183,068 collision cell spectra (qtof and tandem quad) spectra for 14,835 different ions of 7,692 compounds.||95,409 spectra (10,065 ion trap spectra of 9,194 different ions of 4,628 compounds; 85,344 collision cell spectra (qtof and tandem quad) of 7,172 different ions of 3,877 compounds)[#] (121,586 spectra in 2012 update)||14,802 spectra of 5,308 precursor ions (3,898 cations and 1,410 anions).||5,191 spectra of 1,943 different ions (1,671 positive and 341 negative)||NONE|
|NIST MS Search software||v. 2.3 (2017-06)||v. 2.2 (2014-04)||v. 2.0g (2011-05)||v. 2.0f (2008-08)||v. 2.0d (2005-04)||v. 2.0a (2002-07)|
|AMDIS software||v. 2.73 (2017-06)||v. 2.72 (2014-04)||v. 2.70 (2011-05)||v. 2.65 (2006-12)||v. 2.62 (2005-03)||v. 2.1 (2002-07)|
|Release Date||June 2017||July 2014||June 2011||August 2008||June 2005||July 2002|
(*) plus quality improvements
See also What's New in NIST 17.
Electron Ionization (EI) mass spectral library
This is a "fully evaluated" collection of electron ionization (EI) mass spectra. It is the product of a more than three decade, comprehensive evaluation and expansion of the world's most widely used mass spectral reference library by a team of experienced mass spectrometrists in which each spectrum was examined for correctness. Each spectrum has been carefully evaluated, and all decisions regarding selection or deletion were made only after agreement of two experienced mass spectral evaluators, as described in presentations at major conferences. While computer methods assisted in finding chemical identification errors and inconsistencies, and revealed certain varieties of mass spectral errors, manual interpretation was the principal basis for this evaluation effort.
The Electron Ionization (EI) mass spectral library consists of 276,248 spectra of 242,466 unique compounds. Besides spectra, typical data include name, formula, molecular structure (.mol), molecular weight, CAS number, contributor name, list of peaks, synonyms, and estimated and/or measured retention index.

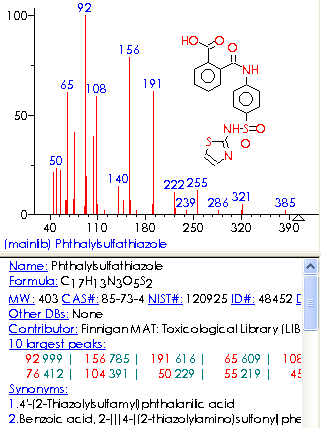

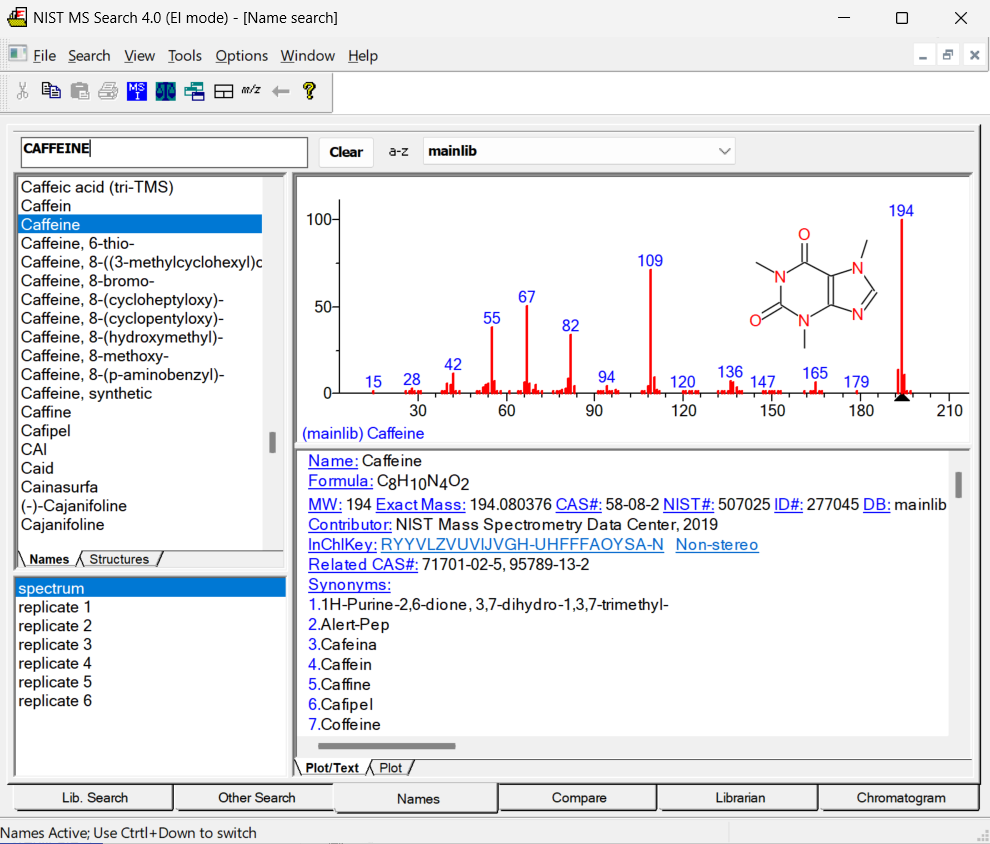

Figure: NIST MS Search software showing EI mass spectrum and compound information.
Name: 1-Decanol Formula: C10H22O MW: 158 Exact Mass: 158.167066 CAS#: 112-30-1 NIST#: 374910 ID#: 37364 DB: mainlib Other DBs: Fine, TSCA, RTECS, HODOC, NIH, EINECS, IRDB Contributor: NIST Mass Spectrometry Data Center, 2010 InChIKey: MWKFXSUHUHTGQN-UHFFFAOYSA-N 10 largest peaks: 70 999 | 55 987 | 56 859 | 69 823 | 43 732 | 41 727 | 83 724 | 84 476 | 57 452 | 97 389 | Synonyms: 1.Decyl alcohol; 2.n-Decan-1-ol; 3.n-Decanol; 4.n-Decyl alcohol; 5.Alcohol C10; 6.Alfol 10; 7.Capric alcohol; 8.Caprinic alcohol; 9.Decanol; 10.Nonylcarbinol; 11.Sipol L10; 12.T-148; 13.Decylic Alcohol; 14.Decan-1-ol; 15.Decanol-(1); 16.Agent 504; 17.Antak; 18.Dytol S-91; 19.Decyl, n- alcohol; 20.Lorol 22; 21.Primary decyl alcohol; 22.Royaltac; 23.C 10 alcohol; 24.Epal 10; 25.Royaltac-85; 26.Royaltac M-2; 27.Lorol C10; 28.Nonylcacarbinol; 29.1-Hydroxydecane; 30.Conol 10N; 31.Kalcohl 10H; 32.NSC 406313; 33.Nacol 10-99
The NIST EI Library focuses on:
- Drugs, metabolites, and poisons,
- Pesticides and fungicides,
- Organics present in soil, water and air,
- Aminoacids, di- & tri-peptides,
- Common sample contaminants,
- Common analytical derivatives of the above

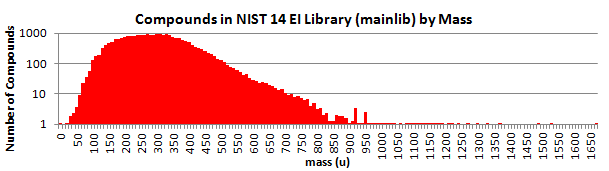

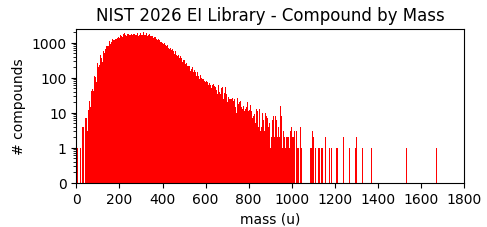

Here is a breakdown by mass:
The best quality spectra are placed in the Main Library; and good-quality, alternate spectra are provided in the Selected Replicates Library.

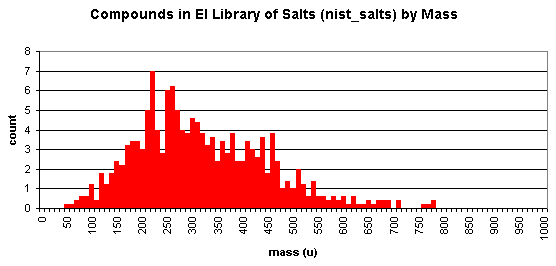

NIST includes a collection salts and low-volatile substances not expected to be measurable by GC/MS. Here's a breakdown by mass (data from 2008 version, of 717 spectra of 672 compounds):
To check whether certain compounds or classes of compounds exist within the NIST database, you may do an online search of compounds in the NIST MS database.
NIST spectra have been obtained from thousands of sources. Major sources include
# Spectra, Name (data from 2014 version) 44447 V.G.Zaikin,R.S.Borisov, Topchiev Inst. Petrochem. Synth (TIPS RAS), Moscow 30498 A.A.Kutin, Moscow, Russia 29729 Chemical Concepts 22527 NIST Mass Spectrometry Data Center 31(2014), 199(2013), 1347(2012), 270(2011), 4034(2010), 1126(2009), 60(2008), 237(2007), 1335(1998), 48(1995), 2775(1994), 211(1992), 2183(1990), 8672(other) 16737 Japan AIST/NIMC Database: 9026(MS-NW-X), 7711(MS-IW-X) 11135 L.N.Kulikova,R.S.Borisov,V.G.Zaikin, Peoples' Friendship University of Russia, Moscow 9136 J. Little, Eastman chemical company,Kingsport,TN 7895 Div. of Experiment Therapeutics WRAIR, WRAMC, Washington DC 20307 4794 V.A.Korolev, Moscow, Russia 4581 A.T.Lebedev, Moscow State University, Russia 3760 LAC, NIDDK, NIH, Bethesda, MD 20892 2836 D.HENNEBERG, MAX-PLANCK INSTITUTE, MULHEIM, WEST GERMANY 2807 ASES Database, Dalian Institute, P.R. China 2735 CARL DJERASSI DEPT OF CHEM STANFORD UNIV STANFORD CALIF 94305 2308 Asinex Ltd, Moscow, Russia 1886 Institute of Organic Chemistry, USSR: 1988,1990 1862 A.Mazepa, Phys.-Chem.Institute, Odessa, Ukraine 1728 RADIAN CORP 1683 Humboldt-Universitat zu Berlin, Department of Chemistry, Analytical Group 1666 A.Pleshkova, Nesmeyanov Inst.Org.Elem.Cpds, Moscow 1662 Chuck Anderson, Aldrich Chemical Co. 1279 Drug Lab 1105 TNO Volatile Compounds in Food - Chemical Concepts 1093 Organic Synthesis Lab, MSU, Moscow 1045 William W. Christie, Mylnefield Lipid Analysis, Invergowrie, Dundee, Scotland, UK 995 John Halket,Royal Holloway, University of London, UK 898 A. Brossi, LC, NIDDK, NIH, Bethesda, MD 20892 812 Patti Price, Georgia Bureau of Investigation, Decatur, Georgia 797 V.A.KOPTYUG, ATLAS OF MASS SPECTRA OF ORGANIC COMPOUNDS 787 H. Fales, LC, NHLBI, NIH, Bethesda, MD 20892 704 Tox21 Consortium/NIST Mass Spectrometry Data Center, 2012 702 J.E. WILKINSON S-CUBED, SAN DIEGO, CA. 600 Dr. Jiri Zamecnik, DCIEM, North York, Canada, GP Library 566 R.T.HOLMAN,UNIVERSITY OF MINNESOTA 549 Philip Morris R&D 542 AAFS Toxicology Section MS DB Committee, U. Alberta, Canada 522 A.S.Moskovkin,I.M.Karnaukh, Russian Center on Disaster Medicine 495 Finnigan MAT: Toxicological Library (LIBR-TX) 492 B. Derendyaev, Novosibirsk Institute of Organic Chemistry 406 P.A. Leclercq, Lab. Instrum. Anal., Eindhoven Univ. Technol., Netherlands 396 Leung Pu, NIH, Bethesda, Maryland, U.S. 395 A. Lebedev, Chemistry Department, Moscow State University 384 J. Klune, Insect Chem. Ecol. Lab., USDA, Beltsville, MD 20705 354 Insect Chem. Ecol. Lab., USDA, Beltsville, MD 20705 374 G.S. KING, CHEM. PATHOL. DEP., QUEEN CHARLOTTE'S HOSP., LONDON 364 R RYHAGE MS-LAB KAROLINSKA INSTITUTET STOCKHOLM SWEDEN 352 L. Cohen, LC, NIDDK, NIH, Bethesda, MD 20892 343 Darrick Lee, Cayman Chemical, Ann Arbor, MI 333 J.M. Halket, Trace Anal. Unit (TAU), London, UK 332 HD Science, UK 326 N.D.Kagramanov, Moscow, Russia 317 W.Jennings, T.Shibamoto 310 F. TURECEK,HEYROVSKY INST PHYS CHEM & ELECTROCHEM,PRAGUE,CZECH 308 A. Mujsce, AT&T Bell Labs., Murray Hill, N.J., USA 296 O A MAMER, MCGILL UNIVERSITY, MONTRE 295 G. Lange, Inst. Org. Chem., Univ. Wurzburg, Germany 279 TAT 272 K. Kirk, LC, NIDDK, NIH, Bethesda, MD 20892 144 K. Kirk, LBC, NIDDK, NIH, Bethesda, MD 20892 272 Richard Turcotte. Direction des laboratoires d'expertises et d'analyses alimentaires, Quebec, Canada. 262 K. Jacobson, LBC, NIDDK, NIH, Bethesda, MD 20892 259 A.Pleshkova, Moscow,Russia 255 A.Pleshkova, Inst. Org. Elem. Cpds, Moscow 251 Dmitri Zagorevskii, Scientific Instruments & Applications 251 MASS SPECTROMETRY CENTER, UNIV. OF UTAH; ALDRICH 242 J. Daly, M. Garraffo, T. Spande, LBC-NIDDK-NIH, Bethesda, MD 241 S. MARKEY UNIV. OF COLO. MED. CTR., DENVER, COLORADO, USA 235 Dennis Rohrbaugh, CBDCOM/ERDEC, Edgewood, MD 231 H. Luftmann, Org. Chem. Inst., Westfalisch-Wilhelms Univ., Munster, Germany 230 CONTINENTAL OIL CO., PONCA CITY, OKLA, USA 217 N.Klyuev, Institute of Ecology & Evolution, RAS, Moscow 212 S.M. Lee, CA Export Lab. Services, CA, USA 211 J. SHAW, BORRISTON RESEARCH, ROCKVILLE, MD, USA 198 D.G.Hayward MS, Center for Food Safety and Applied Nutrition, FDA, College Park MD. 194 J.VOTH UNIV. OF CALIFORNIA, DAVIS, CALIFORNIA, 95616, USA 192 BAY 189 P. VAINIOTALO, DEPT. CHEM., UNIV. JOENSUU, JOENSUU, FINLAND 188 Susan Richardson 179 ATLAS OF MASS SPECTRA OF ORGANIC COMPOUNDS, V. A. KOPTYUG, ED. 175 V.A. KOPTYUG, ATLAS OF MS OF ORG. CMPDS., ED. 2 173 Dr. P.K. Shah, NYC Police Laboratory, NY 166 W.T.RAINEY OAK RIDGE NATIONAL LABORATORY,OAK RIDGE,TN.USA 162 A.I. Gren, Phys.-Chem. Inst., Acad. Sci. Ukraine, Odessa, Ukraine 162 Dmitri Zagorevskii, University of Missouri-Columbia, Columbia, MO 162 G. Lange, Inst. Org. Chem., Univ. Wurzburg, Wurzburg, Germany 161 A. Brossi, LAC, NIDDK, NIH, Bethesda, MD 20892 160 R.E.Ardrey ET AL.Pharmaceutical Mass Spectra,L.,1985 157 Association of Official Racing Chemists 157 N.W. Davies, Centr. Sci. Lab., Univ. Tasmania, Hobart, Australia 156 Institute of Chemistry, SAS, Bratislava, Slovakia 151 S.A. Rang et al., IR & MS of Unsatd. Hydrocarbons, 1977 149 ChemBridge Corp. 145 MASS SPECTROMETRY CENTER, UNIV. OF UTAH EPA-PTSEL 144 CATALOGUE OF MASS SPECTRA OF PESTICIDES, APRIL, 1975; J. FREUDENTHAL & L. G. GRAMBERG, NAT'L INST. OF PUBLIC HEALTH, THE NETHERLANDS 142 VERIFIN - Methodology 141 Mark Whitten, Florida Museum of Natural History, U. of Florida 139 FOOD RESEARCH REPORT 1XX, K.E. MURRAY & COLLEAGUES, DIV. OF FOOD RESEARCH, CSIRO, AUSTRALIA 137 VERIFINN 135 B.R. PETTIT, QUEEN CHARLOTTE'S MAT. HOSP., LONDON, U.K. 134 J.T. CLERC, ORGANIC CHEM. LAB., ETH, ZURICH, SWITZ. 132 R. P. Adams and V. Dev, Synthesis and GCMS analysis of angelates and tiglates as an aid to identification of these components in essential oils, Flavour and Fragrance Journal, 25, 71, 2010 129 Virginia Division of Forensic Science 127 E. Zissis, LC, NIDDK, NIH, Bethesda, MD 20892 126 Frank Antolasic, RMIT Applied Chemistry Department, Victoria Australia 3001 123 S K.-T. Yu et al. RI and mass spectra of PFP and HFB esters of carboxylic acid, Nat Inst for Petroleum and Energy Research, 1990 122 R. C. DOUGHERTY 119 H. ALDERCREUTZ, UNIVERSITY OF HELSINKI, HELSINKI, FINLAND 117 M.G.HORNING,INST.FOR LIPID RES,BAYLOR COLL.OF MED,HOUSTON,TEX 115 H.LAATSCH,INST. ORG. CHEM.,GEORG-AUGUST-UNIV. GOTTINGEN,W.GER. 111 Pu Leung, NIH, Bethesda, MD 110 D.J.HARVEY UNIV. DEPT. OF PHARMACOLOGY, OXFORD, UK 110 T.A.BLAZER, DU PONT, GIBBSTOWN, N.J., USA 107 OGDEN BioServices Corp., NCI, Rockville, MD 20852 104 USAF ACADEMY, COLORADO SPRINGS, COLORADO 80840; J LLOYD PFLUG 102 J.M. MILLER,BROCK UNIVERSITY,ONTARIO,CANADA 102 L. Tsai, LB, NHLBI, NIH, Bethesda, MD 20892 102 P. BRUCK, MAGYAR TUDOMANYOS AKADEMIA, HUNGARY 101 CSV Ltd., Moscow, Russia 101 FDA, Los Angeles District Laboratory 101 R.W.A.OLIVER UNIV. OF SALFORD, SALFORD, LANCASHIRE, UK ...and thousands of other sources...
This release contains two MS/MS libraries (nist_msms and nist_msms2), one for small molecules, di and tri peptides and the other for commercially available peptides. It has 652,475 spectra of 123,881 ions of 15,243 different compounds including 1,436 biologically-relevant peptides. See NIST MS/MS for details on the MS/MS library.
Most of the MS/MS spectra have been measured on ion trap and collision cell (qTOF, QQQ, and HCD) instruments using electrospray ionization, although spectra from a number of other instrument types and ionization methods are represented.
The MS/MS Library can optionally be purchased separately at a lower price (with a complete copy of the MS Search software), if you are not interested in the other data in NIST.
Tip: Even though MS/MS and EI spectra differ and MS/MS spectra are therefore only directly library searched against the MS/MS library, there are still ways to utilize the EI library for MS/MS interpretation. See the article Structural Identification of Unknowns from Spectra Obtained Using LC/MS and CAD Techniques and EI Mass Spectral Database.

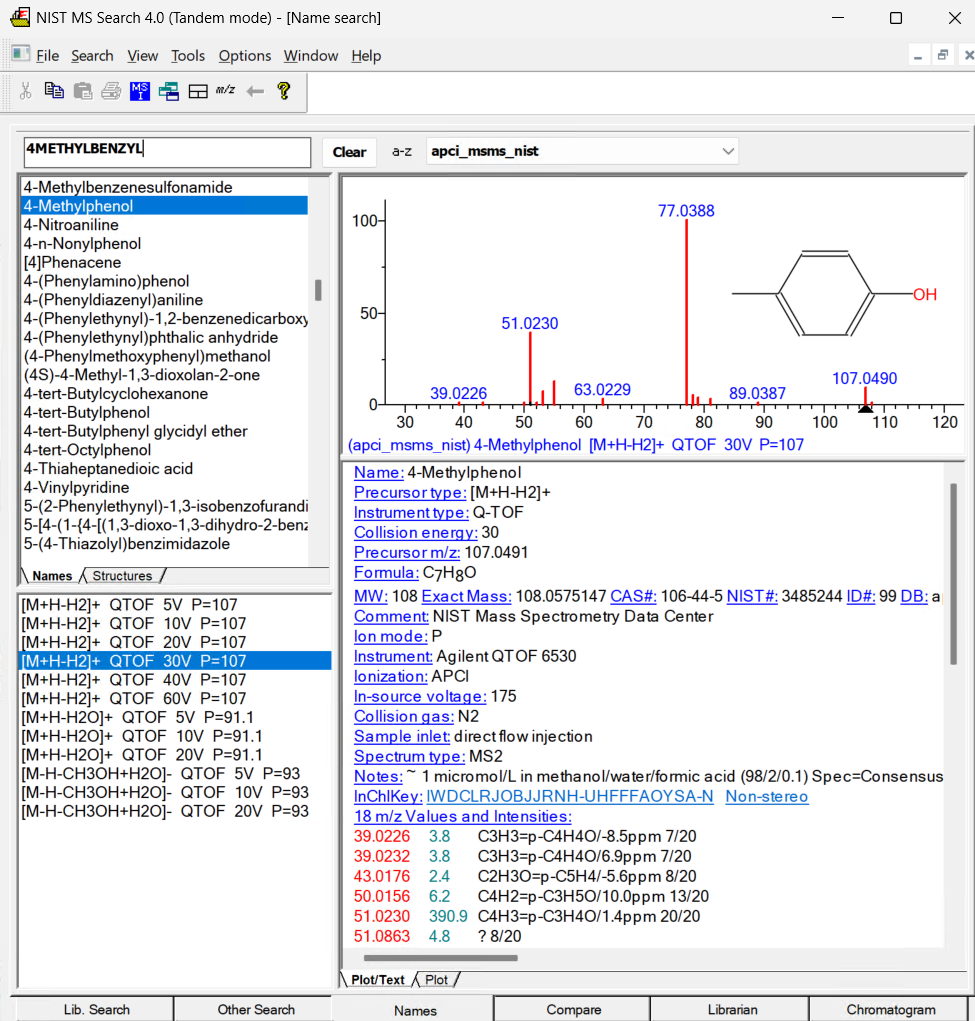

Figure: MS/MS search tab in NIST14. Spectra organized by positive/negative charge, mass, formula, compound name, and acquisition energy/conditions.
Gas Chromatography (GC) Data Library
Gas phase retention data for compounds common to the EI and NIST Retention Data collection are provided with links to the EI library. This involves 387,463 Kovacs retention indices and corresponding GC methods, column conditions and literature citations for 82,868 compounds. Data include both non-polar and polar columns. Most values were abstracted from the open literature and then compared to replicate values and estimates to find and remove errors. We also continue to provide estimates of retention indices for most compounds in the library using an extension of a method developed earlier for boiling points [2-3].
GC data includes
- GC column info: column type (Capillary or Packed), column class (Semi-standard non-polar, Standard non-polar, or Standard polar), column diameter (e.g. 0.25 mm), column length (e.g. 30 m), active phase (e.g. DB-5), substrate (e.g. Chromosorb W), phase thickness (e.g. 0.25 um), and carrier gas (e.g. N2/Helium/H2/etc.).
- GC method: description, program type (Ramp, Complex, or Isothermal), Start Temp, End Temp, Start Time, End Time, and Heat Rate
- Retention index data: Retention index type (Normal alkane RI, Linear RI, Kovats RI, Lee RI, Normal alkane RI value specified by scale definition, Lee RI value specified by scale definition) and retention index (e.g. 514).
- Compound identification: Name (e.g. Limonene), Formula (e.g. C10H16), Synonyms (e.g. Cyclohexene, 1-methyl-4-(1-methylethenyl)-), INCHIKEY (e.g. XMGQYMWWDOXHJM-UHFFFAOYSA-N) (lookup), ID (e.g. 33687), CAS Number (e.g. 138-86-3), and NIST NIST Number (e.g. 79639).
Typical GC data for a compound (decanol) is below:
Experimental RI median±deviation (#data) Semi-standard non-polar: 1273±2 (69) Standard non-polar: 1257±3 (73) Polar: 1760±9 (70) Estimated non-polar retention index (n-alkane scale): Value: 1258 iu Confidence interval (Alcohols): 41(50%) 176(95%) iu Retention index. 1. Value: 1256 iu Column Type: Capillary Column Class: Standard non-polar Active Phase: CP-Sil PONA GB Column Length: 100 m Carrier Gas: He Column Diameter: 0.25 mm Phase Thickness: 0.25 um Data Type: Linear RI Program Type: Ramp Start T: 140 C End T: 230 C Heat Rate: 5 K/min Start Time: 10 min End Time: 25 min Source: Cunicao, M.M.; Lopes, A.R.; Cocco, L.C.; Yamamoto, C.I.; Plocharski, R.C.B.; Miguel, M.D.; Junior, A.G.; Auer, C.G.; Miguel, O.G., Phytochemical and antibacterial evaluation of essential oils from Ottonia Martiana Miq. (Piperaceae), J. Braz. Chem. Soc., 18(1), 2007, 184-188. 2. Value: 1255.2 iu Column Type: Capillary Column Class: Standard non-polar Active Phase: DB-1 Column Length: 30 m Carrier Gas: He Column Diameter: 0.25 mm Phase Thickness: 0.25 um Data Type: Linear RI Program Type: Ramp Start T: 40 C End T: 325 C Heat Rate: 3 K/min Source: Sun, G.; Stremple, P., Retention index characterization of flavor, fragrance, and many other compounds on DB-1 and DB-XLB, 2003. ...214 more GC records (omitted from this display)...
The GC data is useful not only for the GC retention index values but also for the GC column conditions and cited literature that goes with it.

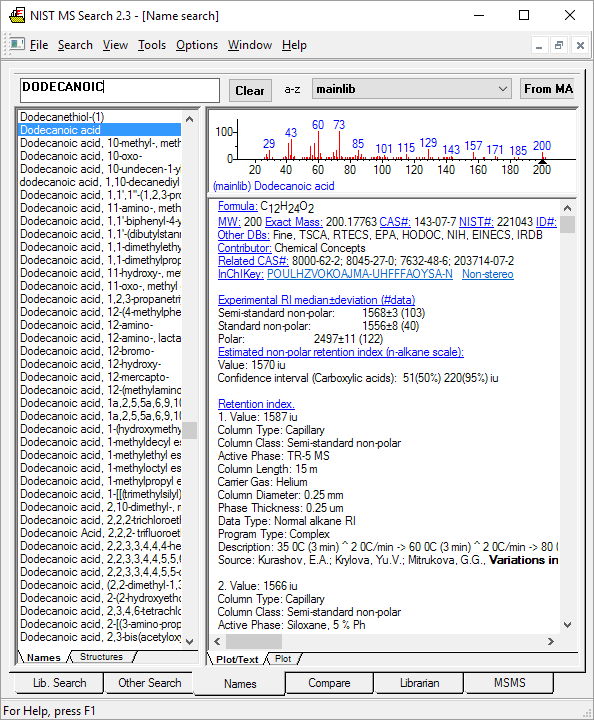

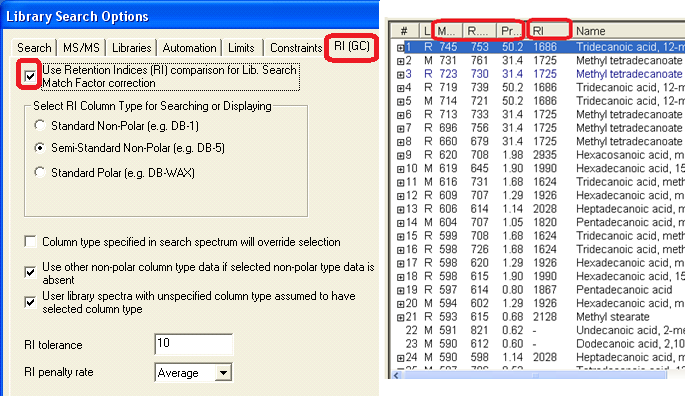

Figure: NIST MS Search software showing GC method and retention index data for a compound with an EI mass spectrum.
See NIST GC/RI for details on this library.
. Babushok, V.I., Linstrom, P.J., Reed, J.J., Zenkevich, I.G., Brown, R.L., Mallard, W.G., Stein, S.E., Development of a database of gas chromatographic retention properties of organic compounds. J.Chromatog. A, 2007, 1157, 414-421.
. Stein, S.E., Brown, R.L. Estimation of normal boiling points from group contributions. J.Chem.Inform.Comput.Sci., 1994, 34, 581-587.
. Stein, S.E., Babushok, V.I., Brown, R.L., Linstrom, P.J., Estimation of Kovats retention indices using group contributions. J.Chem.Inf.Modeling, 2007, 47, 975-980.
NIST MS Search Software
(Note: See What's New in NIST 17 for more recent changes.)
Figure: NIST MS Search software
The updated, full-featured NIST MS Search Program for Windows has a full range of integrated tools. The new updated version of this widely used, full-featured software is designed for identifying compounds from their mass spectra and for exploring mass spectral libraries. It also contains tools for deconvoluting gas/liquid chromatograms and interpreting mass spectra.
- Library Searching via Multiple Search Modes
- Chemical Identity
- Structure Similarity
- Impurity Reduction
- Neutral Loss
- Four Peak Types
- Library Building
- GC/MS Deconvolution
- MS Interpretation

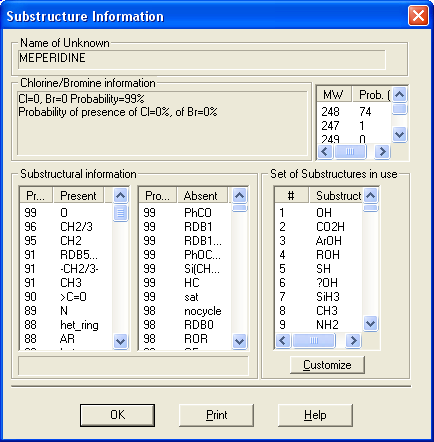

- Chemical Substructure Analysis
- Chemical Substructure Identification
- Molecular Weight Estimation
- Chlorine/Bromine Analysis
- Isotope/Formula Generator
- Integration with multiple Instrument Data Systems
This software provides a flexible means of accessing data in the NIST and User libraries including:
- chemical identification by optimized, documented spectrum-matching methods,
- analyzing mass spectra of compounds not in the library using library data,
- finding spectra with pre-selected characteristics,
- viewing spectra by name, formula, CAS registry number, molecular weight, or ID number,
- User library building and maintenance, and
- integration with a number of commercial GC/MS data systems and spectral analysis tools.
When the program is first started, seven tiled windows appear on the screen (the Desktop), each with its own data and behavior. The behavior of any Window may be modified by making it active (clicking on it) and then pressing the AdjustWin button at the bottom of the Desktop. As you become familiar with program operation, you may wish to change the dimensions of some Windows or even close some of them to create a custom Desktop. When the program is restarted, it will begin with the most recent Desktop. To save a window-arrangement Desktop for future use, select Desktop from the Menu Bar and then Save As from the resulting Menu. Prior Desktops may be restored using one of the predefined names or your own name. Such arrangements describe the geometry and type of information shown in each Window, not the actual data contained in it. To restore a previous hit list, select it from the list at the top of the Hit List Window.
Library Searching - Identify unknown compounds and substructures using fully documented and optimized procedures, or search by a wide range of compound and spectral properties.
Library Building - Maintain your own libraries, add your own chemical structures and search using the same optimized procedures developed for NIST.
Flexible User Interface - Set multiple Desktop configurations with up to seven independently configured windows to examine search results and match your needs.
Use with Your Instrument Data Systems - Direct transfer between a number of commercial data systems and the NIST Search Program.

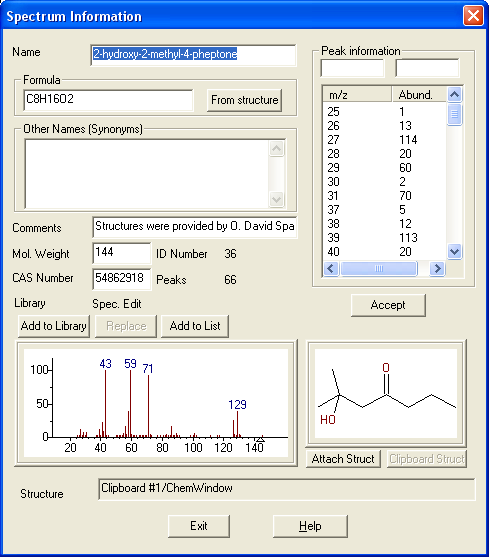

Adding User-Drawn Structures
Users may import their own chemical structures with selected user spectra. This is done in the Tools/Librarian section of the program by connecting a user-drawn structure in standard MOL-file format with a user spectrum. Such structure-drawing programs are widely available (for example, ISIS/Draw may be freely downloaded from http://www.mdli.com/prod/freesw.html). As before, if a user spectrum is given its CAS registry number and the Main Library has a structure for it, this structure will automatically be shown with user spectra unless the user has attached an imported structure to the spectrum.
Aids for Automation and Reporting
A variety of methods for automated searching and reporting of results are available. From the File menu selection, if Print automation is on, printing will follow each library search. A set of print options is also available from the "User Search Options" Window (select Search, then User spectrum). This is of particular use when using this NIST Program with other data acquisition programs.
What's New in NIST17
New features of the NIST 17 program and database are:
- EI Library Expansion: Significant expansion of coverage of metabolites and designer drugs in the EI library, as well as the application of new computer-assisted evaluation methods for removal of low quality spectra.
- MS/MS Library Expansion: Greatly expanded NIST 17 MS/MS Library. Spectra include metabolites, peptides (biologically active peptides and all di-peptides and tryptic tri-peptides), contaminants, metabolites, lipids and more.

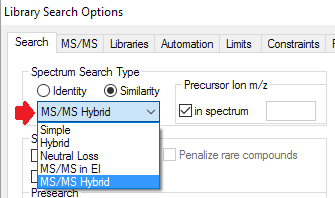

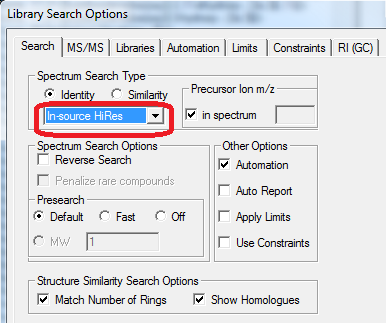

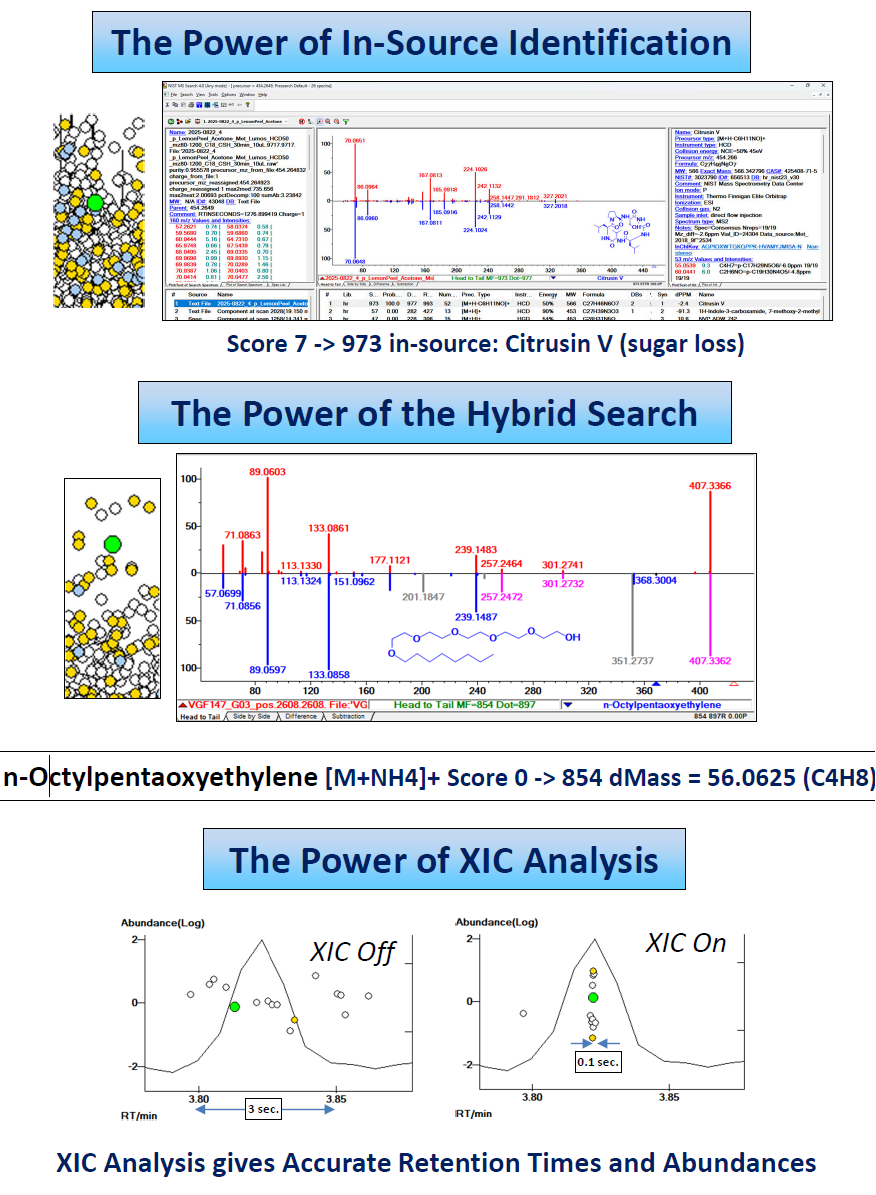

- New 'Hybrid Search' search type for all spectrum types, enable finding many more similar compounds in the hit list. It requires a precursor mass.
- New neutral loss search is available that eliminates restrictions on the maximum loss considered.
- Improved algorithms for scoring high mass accuracy searches that account for sparse spectra.
- Peaks shifted in the 'Hybrid Search' are shown before and after shifting.
- Searching by exact precursor m/z.
For Electron Ionization Mass Spectra (Low Resolution)

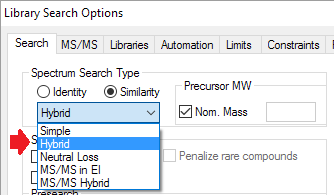

- A new EI Hybrid Search (Similarity/Hybrid).
Hybrid searching uses both the logic of normal searching plus the logic of neutral loss searching. It uses the same algorithm as MS/MS Hybrid search with unit charges and Nominal MW instead of Precursor m/z.
- Presearch for EI Similarity/Neutral Loss search

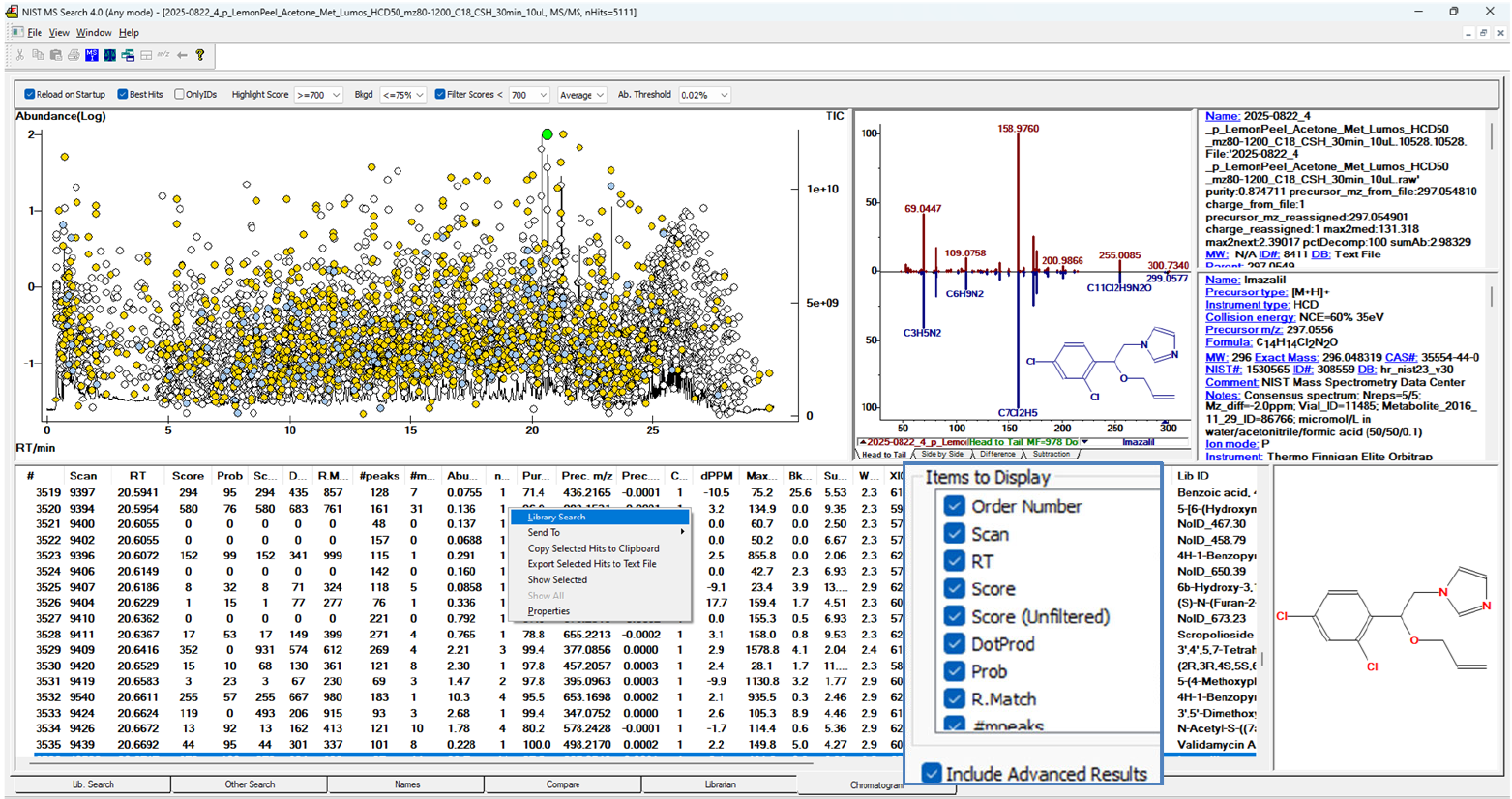

For Tandem (MS/MS) and High Resolution Mass Spectra
- HiRes MS/MS Hybrid Search
Search for an MS/MS spectrum in a library of MS/MS spectra. Uses the logic of normal searching and the logic of neutral loss searching. Only library spectra with the same precursor charge as that of the search spectrum are considered. If a search spectrum precursor charge is missing, it is set to +1. If "Peptide" check box in MS/MS tab of Library Search Options is selected, product ion charges from library spectrum peak annotations are used. Otherwise, all product ion charges are set to 1 or 2 in case precursor charge is 2 or greater. Neutral loss searching is done after changing library spectrum peaks' m/z values so that they have the same neutral losses with respect to the search spectrum precursor as they had with respect to the library spectrum precursor in the original library spectrum. This changed spectrum is compared to the search spectrum; found peak matches are included in the dot product. If a library spectrum peak matches different search spectrum peaks in both direct and neutral loss searches, its intensity is split between these two matches to maximize the dot product and keep total library spectrum intensity unchanged.
The changed library spectrum product ions' m/z are calculated by adding (MS - ML)CM/CP, where M is precursor m/z, C is charge, subscripts are: S - in search spectrum, L - in library spectrum, M - in both precursors, P - in product ion.

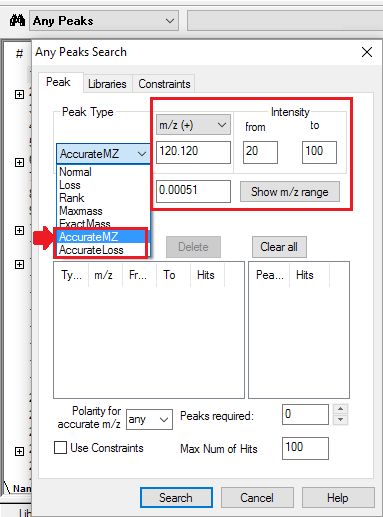

- Types of Any Peak search: HiRes peak and HiRes loss

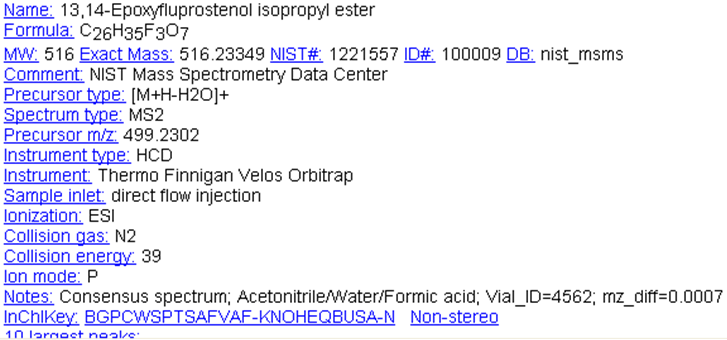

- Display additional MS/MS information in hit lists

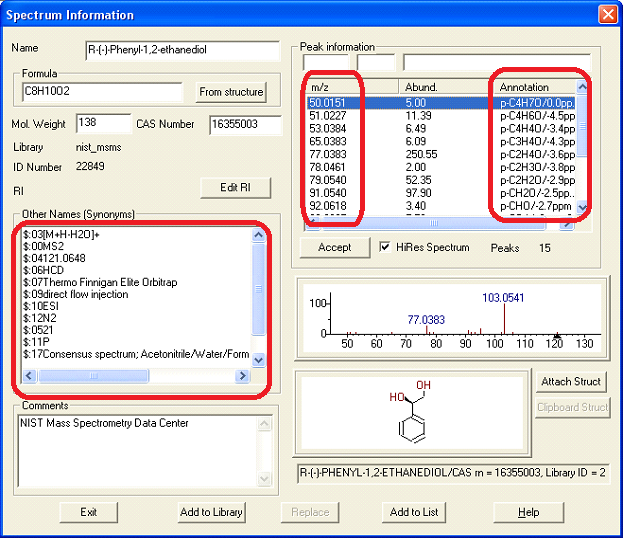

- Edit accurate peak m/z, intensities and peak annotations in the built-in mass spectrum editor
- MS/MS Precursor m/z search

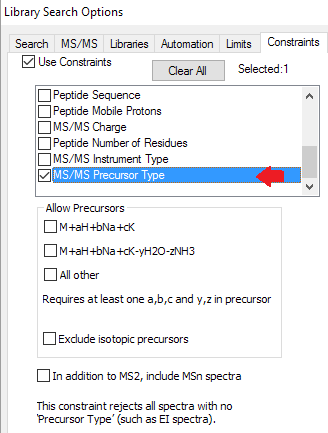

- Precursor type constraint.
Restrict MS/MS spectra in search results to specific precursor types, exclude isotopic precursors, display MS3 and higher spectra in addition to MS2. Works with NIST 17 nist_msms library. Rejects spectra which do not have correct Precursor type syntax.
This is in addition to other filters for MS/MS spectra to limit hits by charge,
precursor type, instrument, msn, and mass accuracy.

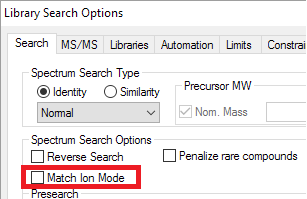

- Spectrum polarity filter
For all Mass Spectra

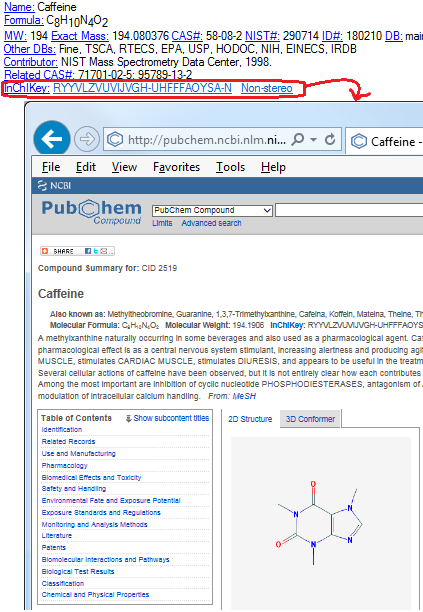

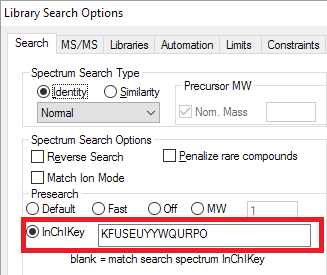

An 'InChIKey' presearch for all Library spectrum searches.
Finds all spectra which have the same first InChIKey segment as the search spectrum, and compares them to the search spectrum.
InChIKey - Restrict search to only molecules with the first segment of InChIKey being the same as that of the search spectrum or a user supplied InChIKey. Use this presearch when the chemical structure or InChIKey of the search spectrum is known. To use this presearch, a library must be indexed by InChIKey. An older library may be indexed by selecting (Re)Index InChIKey from Tools menu. The search and found compounds do not have to have mass spectral peaks: hits with score=0 are included in the hit list. This allows to search nist_ri library. To retain all hits (up to 400) use Identity Normal, Quick, or Similarity Simple search. Other searches impose certain conditions on the library spectra thus excluding hits.

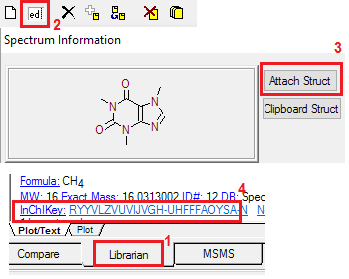

- When a spectrum is associated with a structure in the Spectrum Information dialog box of the Librarian tab view, the InChI Key is automatically associated with the spectrum.

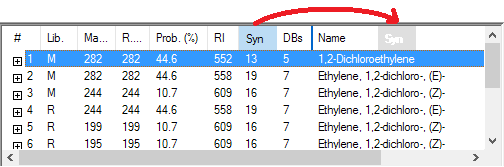

- Columns in any Hit List can be positioned as desired.
- Update list of libraries may be performed without exiting MS Search.
- Indexing old libraries for EI Hybrid, EI Loss, HiRes Any-peaks Peak and Loss searches, and InChI presearch. This includes third party libraries like the Wiley Registry.
- Structure Search Database Builder updates user library structure indexation.
- (Re)Index Exact Mass creates index files for Exact Mass Search
- (Re) Index Accurate m/z creates index for Any Peaks Accurate m/z and Accurate Loss peak types
- (Re)Index EI Hybrid Search create index for EI Hybrid Search presearch and EI Neutral Loss search presearch
- (Re)Index InChIKey creates index for InChIKey presearch

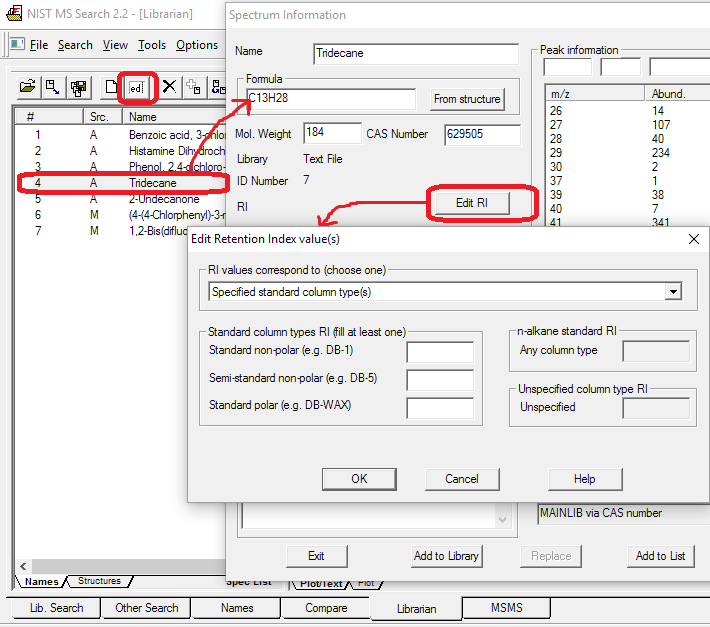

- (Re)Index RI creates a file for using RI with a library.
- A new version of MS Interpreter allowing for high accuracy mass spectra and exact masses for fragment ions.

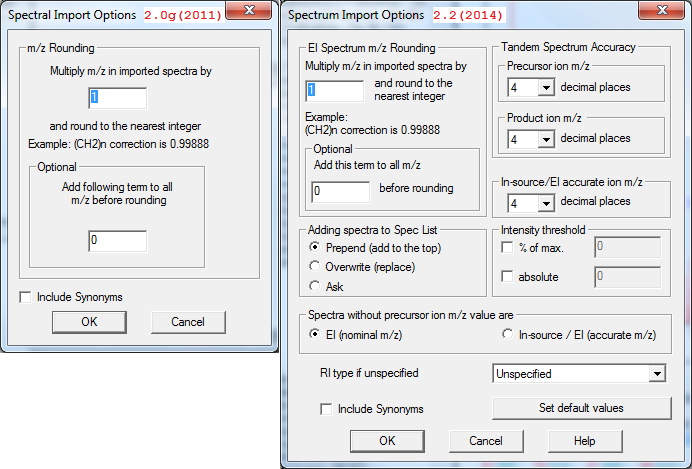

- High Mass Accuracy Spectrum Import and Display
- Zoom Control [keyboard shortcuts]
- Manual fragment selection
Some other noteworthy features that are not new but you might not be aware of:
- MS/MS browsing window and MS/MS library
- New type of mass spectrum search: MS/MS Identity search for searching for MS/MS spectra in MS/MS libraries. The updated Lib2NIST converter is a tool for creating MS/MS libraries. To create a MS/MS library, run Lib2NIST and check "MS/MS spectra only" option. For this search to work, the MS/MS spectra must contain precursor m/z values.

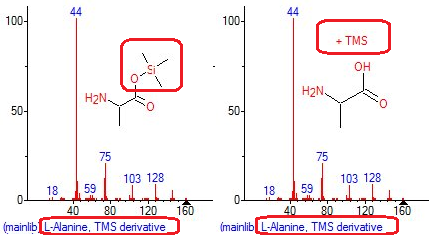

- Derivatives for GC/MS can be represented as their precursor molecules using a large number of derivative types.
- Retention indexes in some of Main and Replicates libraries spectra. Automatic Retention Index estimation from chemical structure (right-click spectrum text window, select Properties, Retention Indices). Polar columns were new to the 2008 release.
- Structural replicates display (in addition to usual CAS number matching) in Main and Replicate libraries, including a new feature: displaying derivatives and a wider range of tautomers. Select matching method in Options, Replicates.
- Structure searching - the program will find all chemical structures similar to the structure of the search spectrum. The searching can be done using structural data from the NIST MS database, from the user database or from a structure drawn in most chemical drawing packages. A structure may be exported to chemical drawing software. The Structure similarity search algorithm has been changed: now it includes homologue recognition that generates a match factor of 1000 for homologs. You will need to rebuild structure search databases in user libraries (as you usually need to do after editing a user library containing structures.)

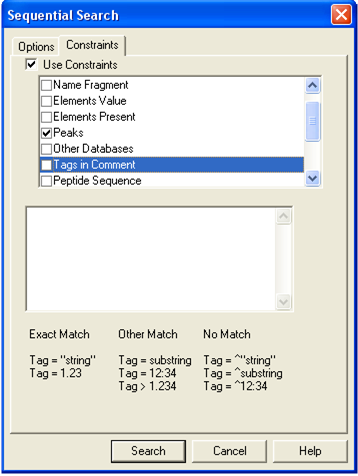

- Searching in the Contributor/Comment spectral records and extracting tagged fields into the displayed spectrum text information.
- Drag and Drop - Data can be dragged and dropped between windows. Point mouse to the name of the compound in the spectrum plot window, press and hold the left mouse button, drag the spectrum and drop it into Spec List or Compare Window.
- User Library Structures - This feature has been present for some time, but many are unaware of it.
- Compare Views - There are a number of different ways for you to visually compare two spectra.
- Direct interaction with a number of chemical drawing packages - the clipboard can be used with some of them, most can be used by use of intermediate files.
- The NIST MS Search program takes advantages of many normal Windows conventions. Look at the context sensitive options on the right mouse button click and on buttons at the top of the window.
- Thermodynamics-based MS Interpreter program version 3.0. This program now works for both low and high mass accuracy spectra and permits using a mouse to select parts of a chemical structure for mass and formula determination and analysis.

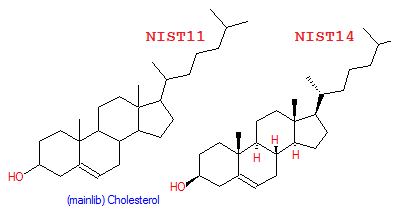

New in NIST 14

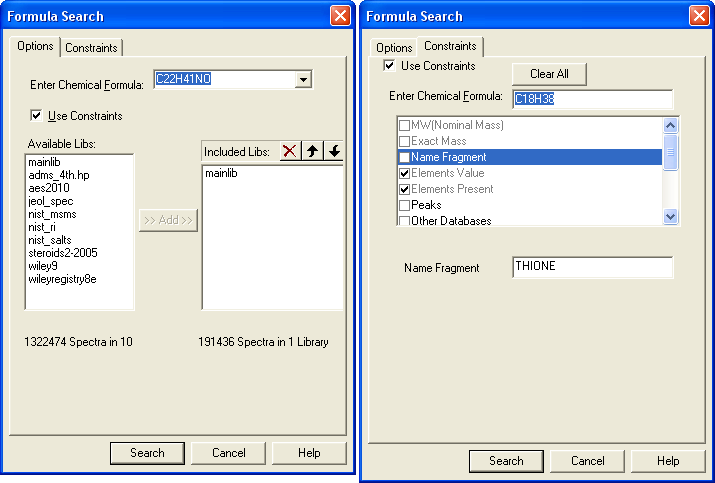

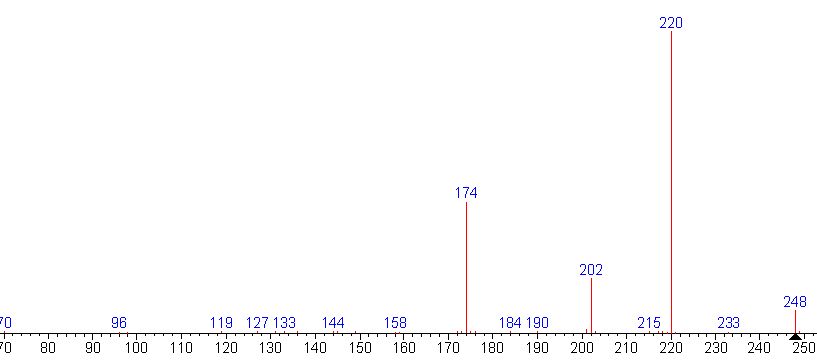

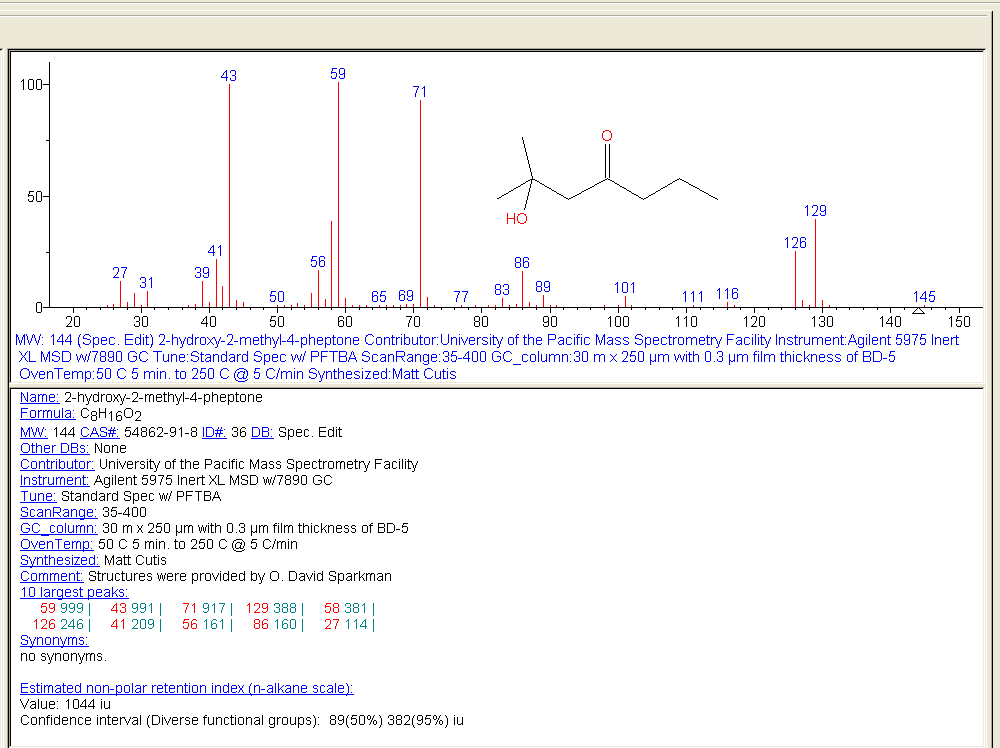

New in NIST 11
New in NIST 08
New in NIST 05
New in NIST 02 and previous versions

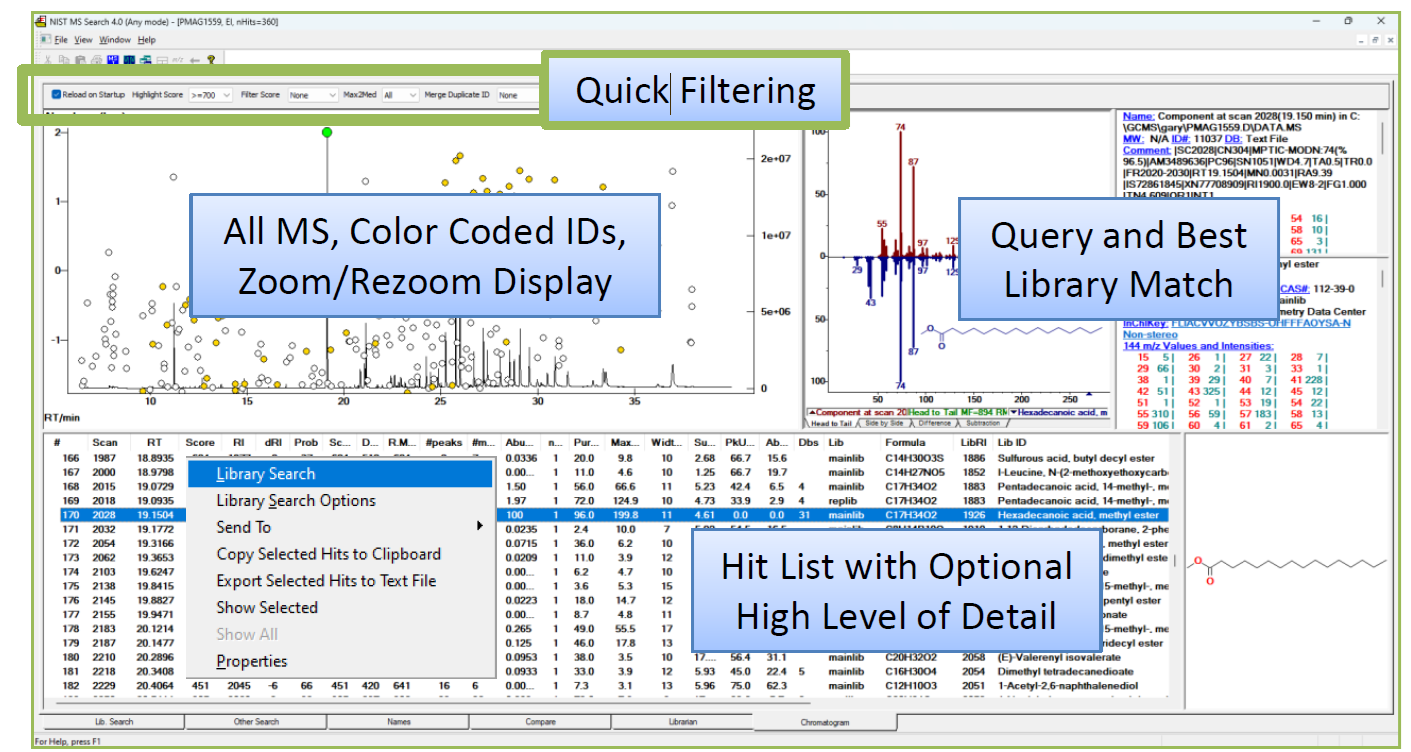

Automated Mass Spectrometry Deconvolution and Identification System (AMDIS)

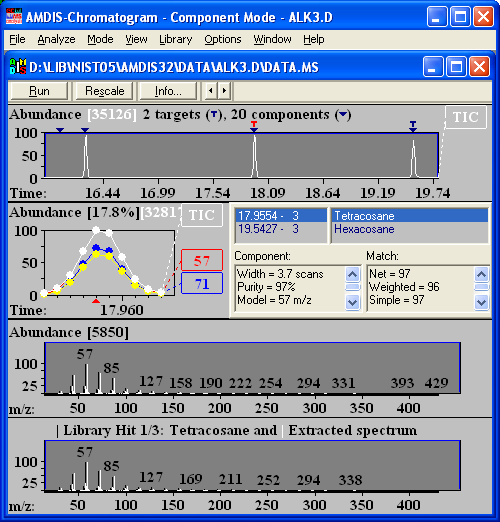

The AMDIS software extracts pure component spectra from complex GC/MS or LC/MS data files and searches against specialized libraries or the NIST library. This module was developed at the National Institute of Standards and Technology (NIST) for the critical task of verifying a major international treaty, the Chemical Weapons Convention. After two years of development and extensive testing it is now being made available to the general analytical chemistry community. AMDIS can operate as a "black box" chemical identifier, displaying all identifications that meet a user-selectable degree of confidence. Identification can be aided by internal standards and retention times. Libraries can be built directly from analyzed data files or from spectra in the NIST/EPS/NIH Database. AMDIS can also serve as a preprocessing tool for the GC/MS data files, automatically performing noise reduction for all components. It permits traditional library searching for any selected component. A flexible interface is provided to assist the analysis of complex matrices.
Included as a separate utility, AMDIS attempts to reconstruct original mass spectra for individual components in arbitrarily complex GC/MS and LC/MS reconstructed total ion current (RTIC) chromatograms; and, if a target library is provided, can directly identify target compounds. AMDIS is especially useful when an RTIC chromatographic peak represents multiple components. Regardless of each component's concentration, pure mass spectra are deconvoluted for analyses. AMDIS was developed by NIST for the Defense Weapons Agency (Department of Defense) for verifying compliance with a major international treaty (Chemical Weapons Convention) ratified by the United States Senate in 1997. In order to meet the rigorous requirements for this purpose, AMDIS was tested against more than 30,000 GC/MS data files accumulated by the EPA Contract Laboratory Program without a single false-positive for the target set of known chemical warfare agents. While this level of reliability may not be required for all laboratories, this shows the degree to which the algorithms have been tested.
AMDIS has been designed to reconstruct "pure component" spectra from complex RTIC chromatograms even when components are present at trace levels. For this purpose, observed chromatographic behavior is used along with a range of noise-reduction methods. AMDIS is distributed with specialized libraries (environmental, flavor and fragrance, and drugs and toxins), that were derived from the NIST Library. AMDIS has a range of other features, including the ability to search the entire NIST Library with any of the spectra extracted from the original data file. It can also employ retention index windows when identifying target compounds and can make use of internal and external standards maintained in separate libraries. A history list of selected performance standards is also maintained.
As of version 2.73, AMDIS reads data files in the following formats:
- Agilent ChemStation (*.D)
- Agilent MS Engine (*.MS)
- Bruker (.MSF)
- Finnigan GCQ (*.MS)
- Finnigan INCON (*.MI)
- Finnigan ITDS (*.DAT)
- HP ChemStation (*.D)
- HP MS Engine (*.MS)
- INFICON GCMS (*.acq)
- JEOL/Shrader (*.lrp)
- Kratos Mach3 (*.run)
- MassLynx NT (*.*)
- Micromass (*.)
- mzXML/mzData (*.*) (new in NIST11)
- NetCDF (*.CDF)
- PE Turbo Mass (*.raw)
- Shimadzu MS (*.R##)
- Shrader/GCMate (*.lrp)
- Varian MS (*.MS)
- Varian SMS (*.sms)
- Varian XMS (*.xms)
- Xcalibur Raw (*.raw) - requires Xcalibur be installed
AMDIS may also be downloaded separately.

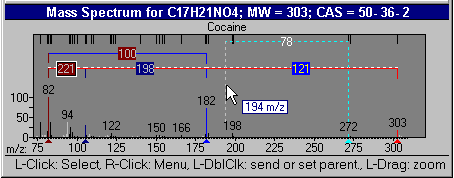

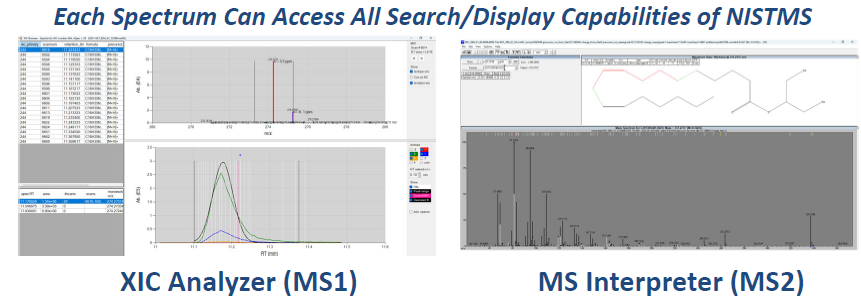

Additional NIST MS Tools: Mass Spec Interpreter

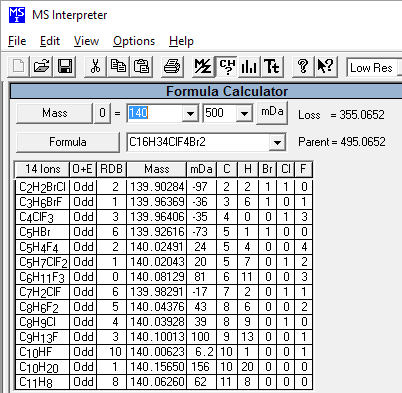

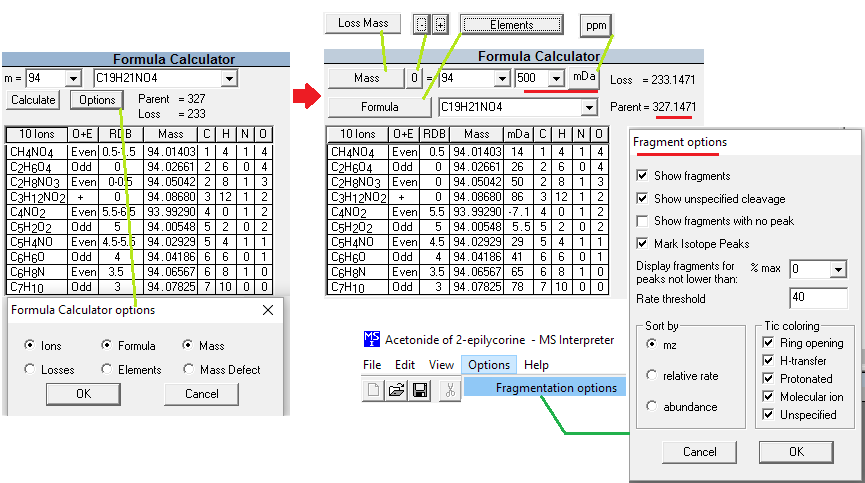

Figure: NIST MS interpreter

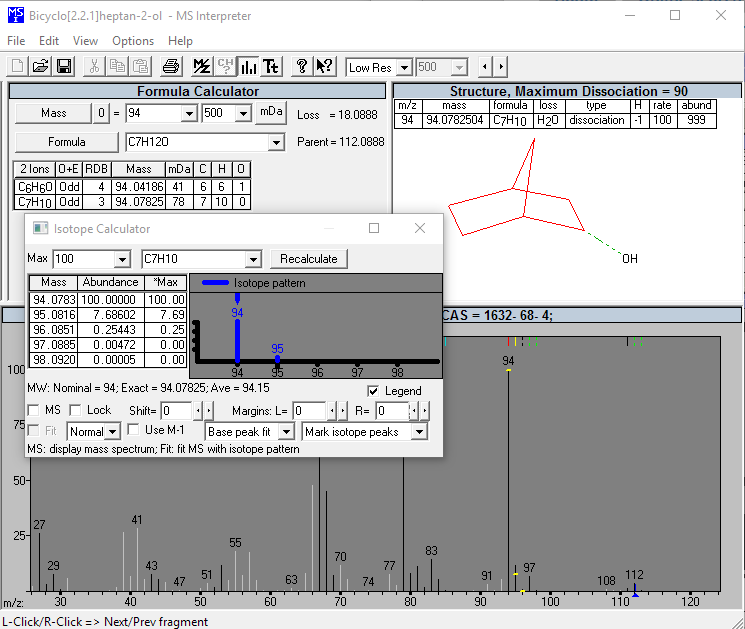

This utility enables the user to examine neutral losses, isotope patterns and possible chemical formulas along with computer assisted chemical structure/spectral analysis. Starting with Version 1.5, the program has offered a unique means of interpreting spectra of compounds not identified in the Library by the User spectrum search. This is most useful when no acceptable matching spectra are found in a User spectrum search of the NIST Library. At this point, by selecting Substructure Information from the Tools menu, the current hit list is analyzed and statistical information on the composition of the unknown is derived from the hit list. For instance, the probability that any of a range of substructures are present or absent are listed (phenyl, acid, ester group, double bond, heteroatom, etc.) along with an estimate of the molecular weight and chlorine/bromine content (the latter is based only on the spectrum itself).
This tool was developed to aid NIST evaluators in their analysis of mass spectra. In one integrated program, it permits a wide range of calculations on a mass spectrum using--if available--a proposed chemical structure. Spectra and structures are associated in the library facility of the Windows Search Program discussed above, and the program is activated from the Tools menu. Peaks in the spectrum originating as a logical fragment of the molecule are marked, and corresponding fragments may be highlighted. It also allows the analyst to keep track of important neutral losses, both from the parent or a derived ion, and to readily compute possible formulas for any peak or neutral loss and isotopic patterns as desired. Observed isotopic clusters can be compared to theoretical predictions subject to a number of user-specified constraints.

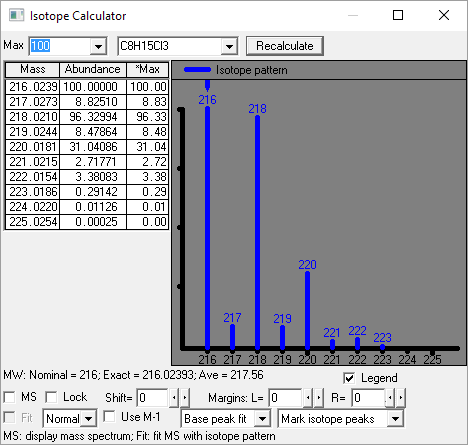

Figure: NIST Formula and Isotopic Pattern Generator
Operating system requirements (NIST 17):
- Windows 10, 8.1, 8, 7, Visa, XP (both 32 and 64-bit editions) are fully supported.
- Windows 2000 is not compatible with NIST 17 MS Search (NIST 14 MS Search does work). ChemStation .L format will work.
- Windows NT 4 is partly compatible with NIST14/11
- Windows NT 3.x, Me, 98, 95, 3.x are not compatible with NIST14/11 MS Search. ChemStation .L format might work.
Complete installation (libraries, NIST MS Search program, and AMDIS) requires about 3 GB of free hard disk space..
Mass Spec Data System Compatibility
Instructions by MS manufacturer:
- Agilent ChemStation (or MassHunter) - The Agilent version of NIST is recommended for GC/MS ChemStation or MassHunter, as this provides the most seamless integration with Agilent data systems. This version includes a copy of the NIST library formatted in the Agilent library format (*.L) with structures, for searching by Agilent's PBM library search routines. Also, Agilent ChemStation (*.D) and MS Engine (*.MS) can be imported into AMDIS using the standard version of NIST. For LC/MS ChemStations (which don't use the .L library format), the standard version of NIST will work just as well.
- Thermo (Finnigan) - The standard version of NIST can be used with Xcalibur, which integrates directly with the Xcalibur data system. Also, Xcalibur Raw (*.raw), Finnigan GCQ (*.MS), INCOS (*.MI), ITDS (*.DAT) can be imported into AMDIS using the standard version of NIST. The NIST library in the Thermo Spectral ID is available in the multiformat version of NIST.
- Varian Saturn - The standard version of NIST can be used. Also, Varian (*.MS), SMS (*.sms), and XMS (*.xms) can be imported into AMDIS using the standard version of NIST.
- Waters MassLynx - The standard version of NIST is recommended, at least for MassLynx versions > 4.0. On search, the spectra is automatically transferred into the NIST MS Search window for library searching. (Older MassLynx versions only support the native MassLynx library format, which is available in the multiformat version of NIST and Agilent/Other version. In fact, newer MassLynx versions continue to support this method as well, but the information displayed has been reported to be more limited than with NIST MS Search--e.g. in terms of information displayed, search time, and 8-digit CAS number limit.) MassLynx NT (*.) can also be imported into AMDIS using the standard version of NIST.
- Waters Empower - Contact us for details. Please tell us what version of Waters Empower you are using.
- Shimadzu: NIST in the native Shimadzu GCMSSolution library format is available in the multiformat version of NIST, allowing searching (.qgd) directly from the Shimadzu software. The native Shimadzu library format has only been tested on recent 2.x versions of GCMSSolution software. Chemical structure diagrams are not included in the native Shimadzu format itself, though you can still browse structures in the NIST MS Search software. Alternately, using only the standard (or any other) version of NIST, it is possible to import old Shimadzu QP5000/QP5050 "CLASS-5000" software MS (*.R*) files into NIST AMDIS, for searching instead from the NIST MS Search software, but this approach does not work with the newer .qgd files without first converting the .qgd to .cdf (e.g. using MASSTransit).
- PE TurboMass (*.raw) files can be imported into NIST MS Search via AMDIS using the standard version of NIST. NIST MS Search may also be directly integrated with the PE TurboMass software with the standard version (but call us for instructions). Also, NIST in TurboMass library format (.IDI/.IDB/.PDB/.PDI), where TurboMass will do the library searching without MS Search, is included the multiformat version of NIST.
- Bruker .MSF files can be imported into AMDIS using the standard version of NIST.
- INFICON GCMS (*.acq) can be imported into AMDIS using the standard version of NIST. PC software for Hapsite® supports NIST and AMDIS.
- JEOL/Shrader/GCMate (*.lrp) can be imported into AMDIS using the standard version of NIST. Shrader also has direct interfaces into the standard version of NIST. Contact us for details.
- Kratos Mach3 (*.run) can be imported into AMDIS using the standard version of NIST.
- Micromass (*.) can be imported into AMDIS using the standard version of NIST.
- Others/NetCDF (*.cdf) can be imported into AMDIS using the standard version of NIST. NetCDF is a vendor-neutral format supported by a number of data systems and GC/MS format conversion software (e.g. GC/MS File Translator and MASSTransit).
(The above list is somewhat of a moving target. Please drop us an e-mail if anything here is incomplete.)
- NIST User Manual
- Further information is in the NIST Help file (Help menu).
- "NIST 11: What's New and What Value Does it Offer?"
by O. David Sparkman, Separation Science, sepscience.com, 2011.
- Part 1 - The history and current status of NIST 11 and its value to analytical scientists.
- Part 2 - The history and current status of NIST 11 and its value to analytical scientists (more).
- Part 3 - The use of searches in the Other Search tab view is examined. These searches can be beneficial for identification of compounds from mass spectra obtained by ionization techniques other than EI and from data that provides a higher accuracy of the measure m/z value than is usually available for EI data.
- Part 4 - Discusses Incremental Name Search, replicate spectra, and the NIST GC Methods, and Retention Index Database.
- Part 5 - Shows how how spectra obtained by MS/MS methods from various soft ionization techniques, including those used with LC/MS can be searched against NIST MS and the results used to facilitate a structure determination.
- Separation Science MS Solutions also has additional AMDIS related articles
- A "Little" Mass Spec and Sailing blog - various resources and tips on NIST by James Little / Eastman Chemical Co: NIST searching at Eastman | identifying known unknowns | CID libraries | identification of surfactants
- MS Calc Pro - simple molecular structure drawing, fragmentation, MS digitization, and isotope calculation tool, with integration with NIST MS Search
- software: Tal-Aviv Molecule Identifier (TAMI) - The TAMI software automatically analyzes your measured mass spectra, based on the analysis of the measured isotopic pattern of the molecular ion (Isotope Abundance Analysis – IAA), and links with NIST's MS Library to confirm or reject its identification results. This significantly enhancing the confidence level in the NIST library identification. In addition, TAMI independently provides the sample elemental formula in case it is not in the library.
- MolView - free web-based ".MOL" file (molecular structure) editor. ".MOL" files can be imported/exported from NIST MS Search.
Download NIST 17 Demo. The demo differs from the full version of NIST mainly in that it contains a very small subset of the EI database and a slightly older version of the software (about 2300 spectra). Also, this is a demo does not contain the Agilent integration (ChemStation/MassHunter macros nor NIST in the ChemStation .L format), although you can load Agilent .D files into the included NIST AMDIS program, which in turn integrates with NIST MS Search. The demo also does not contain MS/MS spectra, although there is a separate peptide demo available for that (NIST MS/MS peptide demo).
Note: For some MS data systems that search for the NIST MS Search program location in the "c:\windows\win.ini" (or "c:\winnt\win.ini") file, you might need to edit that file in a text editor to change the line "[NISTMSDEMO]" to "[NISTMS]" like the real version of NIST.
Download AMDIS 2.71 (July 2012) (free) (AMDIS is included in NIST 17 demo and need not be downloaded separately)
- 2011-12-28 - An updated ChemStation macro (NISTSrch.mac) is available to avoid interference in situations where both ChemStation and another search system (e.g. Xcalibur or Masslynx) are used simultaneously on the same computer (by reusing the autoimp.msd file). [download ZIP] (contains NISTSrch.mac and install instructions).
|NIST 17 - New Licenses|
|941010||NIST 17 Standard Version||2||$2645.00†3 or more: 5% off; 10 or more: 7% off.|
|941010HP||NIST 17 Agilent Format Version||3||$2945.00†3 or more: 5% off; 10 or more: 7% off.|
|941010MF||NIST 17 Multiformat Version (available soon)||0*Lead time for this non-stock item is approximately 7 days.||CALL|
|NIST 17 - Upgrades|
|941010UG||NIST 17 Standard Version, UPGRADE||3||$1525.00†3 or more: 5% off; 10 or more: 7% off.|
|941010HPUG||NIST 17 Agilent Format Version, UPGRADE||1||$1757.00†3 or more: 5% off; 10 or more: 7% off.|
|941010MFUG||NIST 17 Multiformat Version, UPGRADE (available soon)||0*Lead time for this non-stock item is approximately 7 days.||CALL|
|DOWNLOAD||Electronic Download - add this option to receive an e-mail with electronic download details IN ADDITION to physical shipment of manual and DVD media. Download is large - 2 GB||4||$2.00|
|Older Multiformat Versions|
|841010MF||NIST 14 MULTIFORMAT||0*Lead time for this non-stock item is approximately 7 days.||$3950.00|
|841010MFUG||NIST 14 with Shimadzu/Multiformat||0*Lead time for this non-stock item is approximately 7 days.||$2960.00|
|† Quantity discount 3 or more: 5% off; 10 or more: 7% off.|
|* Lead time for this non-stock item is approximately 7 days.|
|Ordering information. International (non-US) prices available through your local dealer.|
Which version to buy? Call or e-mail us if you have any questions about which version to buy. In summary:
- The standard version of NIST (941010) is recommended for most users (except for Agilent ChemStation/MassHunter and Shimadzu GC/MS Solutions). It includes the NIST library formatted in NIST format, which is the native format understood by the NIST MS Search program, which integrates with a number of data systems (e.g. Varian Saturn, Thermo Xcalibur, Waters MassLynx version >= 4.0). GC/MS, LC/MS, and MS spectra from many data systems can also be imported indirectly into AMDIS (see above) and then library searched via the AMDIS-NIST MS Search program integration.
- The Agilent format version of NIST (941010HP) is recommended primarily for most Agilent ChemStation/MassHunter users. It includes everything in the standard version plus the NIST EI library formatted in the Agilent .L library format for library searching directly from Agilent software (e.g. Data Analysis PBM search).
- The Multiformat version of NIST (941010MF) is recommended for Shimadzu GCMSsolution users in particular. It includes everything in the standard and Agilent versions of NIST plus the following additional native formats: Shimadzu GCMSsolution, Waters MassLynx, and Thermo Spectral ID.
- Other formats may be available upon request. Further details are in the System Requirements tab above.
Other databases available: The NIST mass spectral database is a strongly validated and extensively used MS library of general compounds recommended for most all users. Users looking for a larger library or libraries dedicated to certain classes of specialty compounds may wish to augment their NIST database with one of the Wiley MS libraries.
(Previous names: NIST 2014/NIST14/NIST 2011/NIST11/NIST 2008/NIST08)
(Older part numbers for NIST 14: 841010, 841010HP, 841010MF, 841010UG, 841010HPUG, 841010MFUG)
- Search Names in Database Check whether a certain compound or class of compound exists within the NIST 14 or Wiley databases.
- Article By O. David Sparkman Evaluated and Expanded for Quality Figure 1. The NIST Mass Spectral Search Program with all seven of its Windows displayed. Added Features for Quality Prior to 1998, it had been six years since NIST released its last version of the NIST/EPA/NIH Mass Spectral Library. During that period, NIST has completed a ten-year project to completely evaluate the Library. As this process progressed, NIST was able to generate a number of spectra and acquire several important collections o...
- Update Registion NIST current version: The current version of NIST MS is 2014. Notifications on future NIST versions: New versions of the NIST MS database come out roughly every three years (e.g. 1998, 2002, 2005, 2008, 2011, 2014), with upgrades available for purchase. If you wish to be notified upon availability of new versions of the NIST database and upgrade offers, please fill out the form below. Details will also be announced on our NIST web page, at the ASMS meeting, and in our general mail list. Wiley M...
- A few features of NIST08 MS Search that you might not know about.
