Hover over image to zoom
Price: 8653
Product ID : A37317984

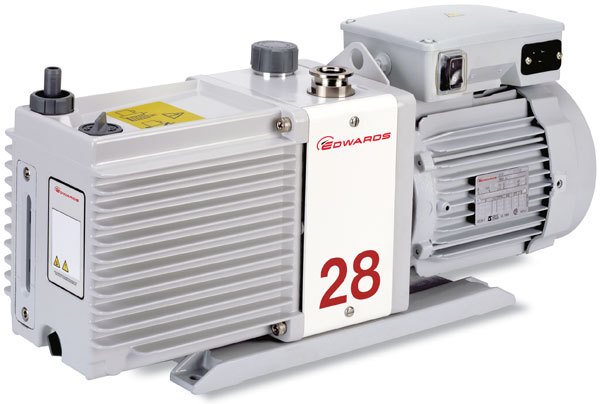

A37317984 EDWARDS E2M28 115/230V UNIVERSAL MOTOR
Spec
| Technical Data | |
|---|---|
| Displacement (swept volume) 50 Hz | 19 ft3 min-1 (32.2 m3 h-1) |
| Displacement (swept volume) 60 Hz | 22.3 ft3 min-1 (38.9 m3 h-1) |
| Speed (Pneurop) 50 Hz | 16.2 ft3 min-1 (27.5 m3 h-1) |
| Speed (Pneurop) 60 Hz | 19.5 ft3 min-1 (33.0 m3 h-1) |
| Ultimate vacuum (partial pressure) without gas ballast | 7.5 x 10-5 torr (10-4 mbar) |
| Ultimate vacuum (partial pressure) with gas ballast | 3.4 x 10-3 torr (5 x 10-3 mbar) |
| Inlet connection | NW25 |
| Outlet connection | Nozzle 15 mm external diameter removable from hole tapped 3/4 inch BSP |
| Maximum permitted pressure at outlet | 7 psig (0.5 bar gauge) |
| Maximum inlet pressure for water vapor | 23 torr (30 mbar) |
| Maximum water vapor pumping rate | 0.7 kgh-1 |
| Weight | 40 kg |
| Motor power 50 Hz | 0.75 kW |
| Motor power 60 Hz | 0.90 kW |
| Oil Capacity maximum | 1.5 liter |
| Oil Capacity minimum | 1.2 liter |
| Part No. | OEM | Part Type | Description | Pump Models | Quantity In Stock |
Price EA |
Order | |
|---|---|---|---|---|---|---|---|---|
| A37317984 | EDWARDS E2M28 115/230V UNIVERSAL MOTOR | |||||||
| 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $8653.00 | |||||||
| Accessories | ||||||||
| 46233000 | ||||||||
| Edwards | Filters | MF30 Outlet Mist Filter Fits E2M28 | MF30 | 1 | $1069.00 | |||
| A50420000 | OIL RETURN KIT EDWARDS E2M18 & E2M28/30 | |||||||
| --- | --- | --- | --- | 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. | $160.00 | |||
| * Standard lead-time for non-stock items is approximately two weeks depending on the item. | ||||||||
