Hover over image to zoom
Price: 0
Product ID : A36317984

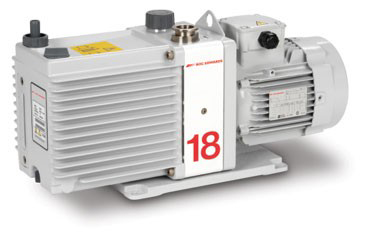

A36317984 E2M18 Pump with 110/220 Universal Motor
Specs
| Technical Data | |
|---|---|
| Displacement (swept volume) 50 Hz | 12.1 ft3 min-1 (20.5 m3 h-1) |
| Displacement (swept volume) 60 Hz | 14.7 ft3 min-1 (25.0 m3 h-1) |
| Speed (Pneurop) 50 Hz | 10 ft3 min-1 (17.0 m3 h-1) |
| Speed (Pneurop) 60 Hz | 12 ft3 min-1 (20.4 m3 h-1) |
| Ultimate vacuum (partial pressure) without gas ballast | 7.6 x 10-5 torr (10-4 mbar) |
| Ultimate vacuum (partial pressure) with gas ballast | 3.8 x 10-3 torr (5 x 10-3 mbar) |
| Inlet connection | NW25 |
| Outlet connection | Nozzle 15 mm external diameter removable from hole tapped 3/4 inch BSP |
| Maximum permitted pressure at outlet | 7 psig (0.5 bar gauge) |
| Maximum inlet pressure forwater vapor | 15 torr (20 mbar) |
| Maximum water vapor pumping rate | 0.30 kg h-1 |
| Weight | 79 lbs (36 kg) |
| Motor power 50 Hz | 0.55 kW |
| Motor power 60 Hz | 0.75 kW |
| Oil Capacity maximum | 1.05 liter |
| Oil Capacity minimum | 0.75 liter |
| Part No. | OEM | Part Type | Description | Pump Models | Quantity In Stock |
Price EA |
Order | |
|---|---|---|---|---|---|---|---|---|
| A36317984 | E2M18 Pump with 110/220 Universal Motor | |||||||
| DISCONTINUED | --- | --- | ||||||
| Accessories | ||||||||
| 46229000 | ||||||||
| Edwards | Filters | EMF20 Oil Mist Filter NW25 | EMF20 | DISCONTINUED | --- | --- | ||
| A50507003 | POWER CORD SET-E1M18-2M18 | |||||||
| --- | --- | --- | --- | DISCONTINUED | --- | --- | ||
| A50420000 | OIL RETURN KIT EDWARDS E2M18 & E2M28/30 | |||||||
| --- | --- | --- | --- | 0†Standard lead-time for non-stock items is approximately two weeks depending on the item. | $160.00 | |||
|
* Call for availability. † Standard lead-time for non-stock items is approximately two weeks depending on the item. | ||||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||||||
