SGE GC Capillary Columns

Since the early 1970's, SGE has been recognized as a pioneer in the development of capillary columns for gas chromatography with an extensive team of polymer chemists, glass technicians and chromatography specialists working on new techniques. SGE was the first to develop and offer several new classes of stationary phases including the sol-gel range of columns.
  • BP1BP1
    Capillary Columns - Dimethyl Polysiloxane technology.
  • BPX1BPX1
    A 100% polydimethylsiloxane non-polar column for Simulated Distillation in the petroleum industry.
  • BPX5BPX5
    An MS-Premium, low bleed column with a maximum temperature up to 370 °C.
  • BP5BP5
    A general purpose phase with excellent high temperature characteristics.
  • HT5HT5
    Unique high temperature phase suited for simulated distillation and other petroleum applications.
  • HT8HT8
    Unique high temperature phase suited for the analysis of PolyChlorinated Biphenyl (PCB) congeners.
  • BP10BP10
    This phase has been selected with a polarity suited for the separation of organochlorine pesticides listed in the EPA 608 and 8081 methods.
  • BPX35BPX35
    An MS-Premium, low bleed column with a maximum temperature up to 370 °C.
  • BPX50BPX50
    An MS-Premium, low bleed column with a maximum temperature up to 370 °C.
  • BP20 (WAX)BP20
    (WAX)
    A very polar phase suited to the analysis of alcohols, ketones and aldehydes.
  • BP21BP21
    A very polar phase suited to the analysis of free fatty acids.
  • BPX70BPX70
    A MS-Premium, low bleed column with a maximum temperature up to 260 °C.
  • BPX90BPX90
    Forte BPX90 is the latest development in high performance GC Capillary Columns from SGE.
  • BPX608BPX608
    35% Phenyl Polysilphenylene-siloxane
  • BP624BP624
    A polar phase used for EPA volatile organics analysis
  • BP1-PONABP1-PONA
    Columns designed for the analysis of petroleum products
  • SolGel-1ms™SolGel-1ms™
    A new robust, high temperature column for mass spectrometers.
  • SolGel-WAX™SolGel-WAX™
    The world's highest temperature WAX capillary column (300 °C)
  • CYDEX-BCYDEX-B
    Permethylated Beta Cyclodextrin (Chiral)

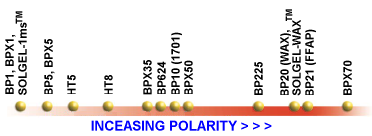

Phase Description Phase Attribute Polarity Operation Temp.
BP1 100% Dimethyl polysiloxane General-purpose column; low bleed Non-polar 0.1-1.0um -60C to 340/360C; 1.5-5.0um -60C to 280/300C
BPX1 100% dimensionally stabilized methylpolysiloxane Ideal for simulated distillations (e.g. ASTM D2887 in the petroleum industry) Non-polar 0.1um film to 430C; 0.9um film to 400C; 2.65um film to 370C
BPX5 5% Phenyl polysilphenylene-siloxane Ideal for GC-MS, ECD; Ultra low bleed Non-polar -40C to 360/370C
BP5 5% Phenyl 95% Dimethyl polysiloxane General purpose column; Low bleed Non-polar 0.25-1.5um 340/350C; >=1.5um 280/300C
HT5 5% Phenyl polysiloxane-carborane High temperature; Well suited to the petroleum; C5-C120 anaylsis Non-polar Polyimide Clad 0.1-1.0um 10C to 380/400C; Aluminum Clad 0.1-0.5um 10C to 460/480C
HT8 8% Phenyl polysiloxane-carborane Ideal for PCB analysis; Low bleed Non-polar 0.1-1.0um -20C to 360/370C
BP10 14% Cyanopropylphenyl Used in environmental analysis; Low bleed Moderately polar -20C to 280/300C
BPX35 35% Phenyl polysilphenylene-siloxane Ultra low bleed; Ideal for pesticides/herbicides Moderately polar 0.1-1.0um 0C to 360/370C
BPX50 50% Phenyl polysilphenylene-siloxane Ultra low bleed; Ideal for pharmaceuticals Moderately polar 0.1-1.0um 0C to 360/370C
BP20 (WAX) Polyethylene glycol Suitable for use in GC-MS systems; alcohols/free acids Polar 0.1-<1.0um 20C to 260/280C; >=1.0um 240/260C
BP21 Polyethylene glycol (TPA treated) Bonded FFAP; alcohols/free acids Polar 0.1-1.0m 35C to 240/260C
BPX70 70% Cyanopropyl polysilphenylene-siloxane Optimized for FAME; Low bleed Highly polar 0.1-1.0um 50C to 250/260C
BPX608 35% Phenyl polysilphenylene-siloxane Optimized for separation of EPA 608 Organics Chlorinated Pesticides Moderately polar 0C to 360/370C
BP624 Cyanopropylphenyl Dimethyl polysiloxane Optimized for analysis of EPA drinking water target components Slightly polar 1.4um - 0C to 230/240C; 1.8um - 0C to 230/240C; 3.0um - 0C to 230/240C
BP1-PONA 100% Dimethyl polysiloxane Optimized for the analysis of gasoline hydrocarbons Non-polar -60C to 280/300C
SolGel-1ms™ 100% Dimethyl polysiloxane in a Sol-Gel matrix High temperature inert GC-MS column Non-polar 0C to 380C
SolGel-WAX™ Polyethylene glycol in a Sol-Gel matrix High temperature inert column Ideal for GC-MS Polar 30C to 300C
CYDEX-B Permethylated Beta-cyclodextrin in OV1701 Chiral separations --- 30C to 220/240C

Column Selection

Stationary Phase

  • Choose the least polar phase that will perform the separation you require.
  • Choose SOLGEL-WAX™ to separate compounds such as alcohols, ketones, aldehydes and esters.
  • The 5% phenyl columns (BPX5) can be used in 90% of all separations.

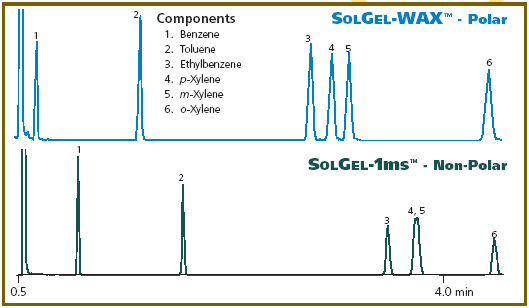

Effect of stationary phase. BTEX analysis on two phases of columns. 30m x 0.25mm ID x 0.25um film (SGE).

Internal Diameter

  • The smaller the diameter, the faster the analysis.
  • 0.25mm ID columns are suitable for most applications, especially GC-MS.

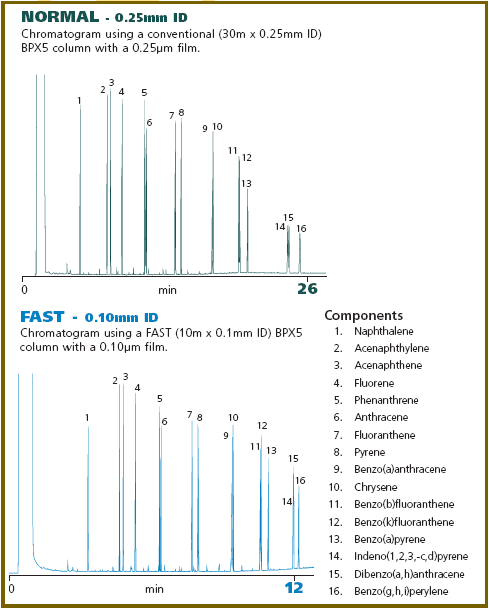

Effect of internal diameter. Polynuclear Aromatic Hydrocarbon (PAH) analysis (SGE).

Film Thickness

  • 0.25um films are standard.
  • Use >= 0.5um films for volatile compounds.
  • Thicker film columns will result in longer run times but better resolution.

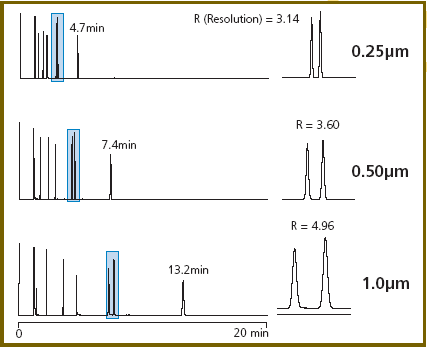

Effect of film thickness (SGE).

Length

  • Doubling the column length improves resolution by 40%.
  • 30 meter columns are standard.
  • Choose short columns for active compounds.

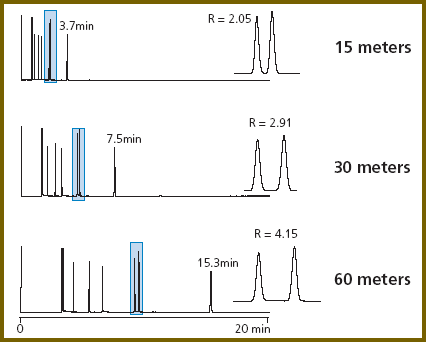

Effect of length (SGE).
