Alcatel "I" Series Rotary Vane Two Stage Vacuum Pumps

"I" series rotary vane pumps incorporate all the Alcatel expertise in product design; they address all major requirements of the most sensitive applications of analytical instruments.

High Performance

The forced lubrication system which includes a built-in oil vane pump, enables high performance from atmosphere to the 10^-4 mbar range. Low backstreaming rate, pumping stability even for light gases are the results of the advanced engineering design of the "I" series pumps.

Low Noise Level

Specific work on both the pump and the motor design has reduced noise levels and irritating frequencies. A noise level of 49 dBA is a typical value for "I" series rotary vane pumps.

Easy to Use

In order to facilitate maintenance actons or routine inspections, all controls and service access are located on the front of the oil casing.

Compact Design

Reduced dimensions, retractable handle, combined with the choice of horizontal or vertical positioning of inlet and exhaust ports allow easy integration in space-limited areas.

Optimized Tightness

Efficient and reliable anti-suckback system is activated by the oil pump. For all static components attached to the oil-casing or central housing, sealing is secured by O-rings. External shaft sealing arrangement can be renewed easily, without dismantling the pump, using the specific shaft seal kit.

Universal Single-Phase Motor

In order to meet one of the major requirements of international OEM's, "I" series pumps feature a unique single-phase motor covering all world-wide electrical supplies. In addition, this motor complies with all major electrical standards: UL/CSA/CE.

• Voltage Ranges
  • High Voltage: 180V to 254V 50/60 Hz
  • Low Voltage: 90V to 132V 50/60Hz
• Voltage range is determined by the position of a simple rocker switch, enabling the pump to be configured easily, without need for hard wiring.
• Indication of voltage range is visible through a window provided in the box cover.
• On/Off switch controls pump operation (optional)
• IEC socket allows flexibility for a wide choice of power lead terminations.
• Complies with major international electrical standards: UL/CSA/CE.
• Protection level: IP43 (TEFC type)
• Thermally protected. (automatic reset)

---

Alcatel "I" Series Vacuum Pump Specifications

Specific Dimensions
Model	L (mm)
2005	228
2010	245
2015	270
2021	291



Specifications
	Units	2005i	2010i	2015i	2021i
Nominal Pumping Speed - 50Hz (*)	m3/h	5.4	9.7	15	20.7
Nominal Pumping Speed - 60Hz (*)	cfm	3.8	6.8	10.6	14.6
Pneurop Pumping Speed - 50Hz (*)	m3/h	4.8	8.5	12.5	16.5
Pneurop Pumping Speed - 60Hz (*)	cfm	3.4	6	8.8	11.8
Ultimate Partial Pressure (*)	mbar	10-4	10-4	10-4	10-4
Ultimate Total Pressure (*) Closed Gas Ballast	mbar	2 x 10-3	2 x 10-3	2 x 10-3	2 x 10-3
Ultimate Total Pressure (*) Opened Gas Ballast	mbar	10-2	10-2	10-2	10-2
Water Vapor Capacity - 50/60Hz	g/h	120/110	125/100	110/100	90/90
Water Vapor Pressure - 50/60Hz	mbar	35/25	20/15	12/10	7/7
Noise Level - 50Hz (**)	dBA	48	49	50	50
Noise Level - 60Hz (**)	dBA	50	51	52	53
Weight	kg (lbs)	25 (55)	26 (57.2)	27 (59.4)	28 (61.6)
Maximum Nominal Power Rating - 50/60Hz	kW	0.45/0.55	0.45/0.55	0.45/0.55	0.45/0.55
Minimum Ambient Temperature	°C (°F)	12 (54)	12 (54)	12 (54)	12 (54)
Maximum Ambient Temperature	°C (°F)	45 (113)	45 (113)	45 (113)	45 (113)
Oil Capacity	l	0.83	0.95	0.95	0.98
Inlet/Exhaust Flanges	ISO-KF	DN25	DN25	DN25	DN25

(*) - According to Pneurop specifications; with Adixen mineral oil

(**) - typical values, according to Pneurop specifications

---

Accessory Supplies

• Pump Oils
• Maintenance Kits - Alcatel "I" Series
• Motors
• Temperature Indicators
• Rollerflex Vacuum Hose
• Wire Reinforced Vacuum Hose
• Filters
• Traps
  • Assimilation
  • Coaxial
  • Molecular Sieve
• Exhaust Filters

---

---

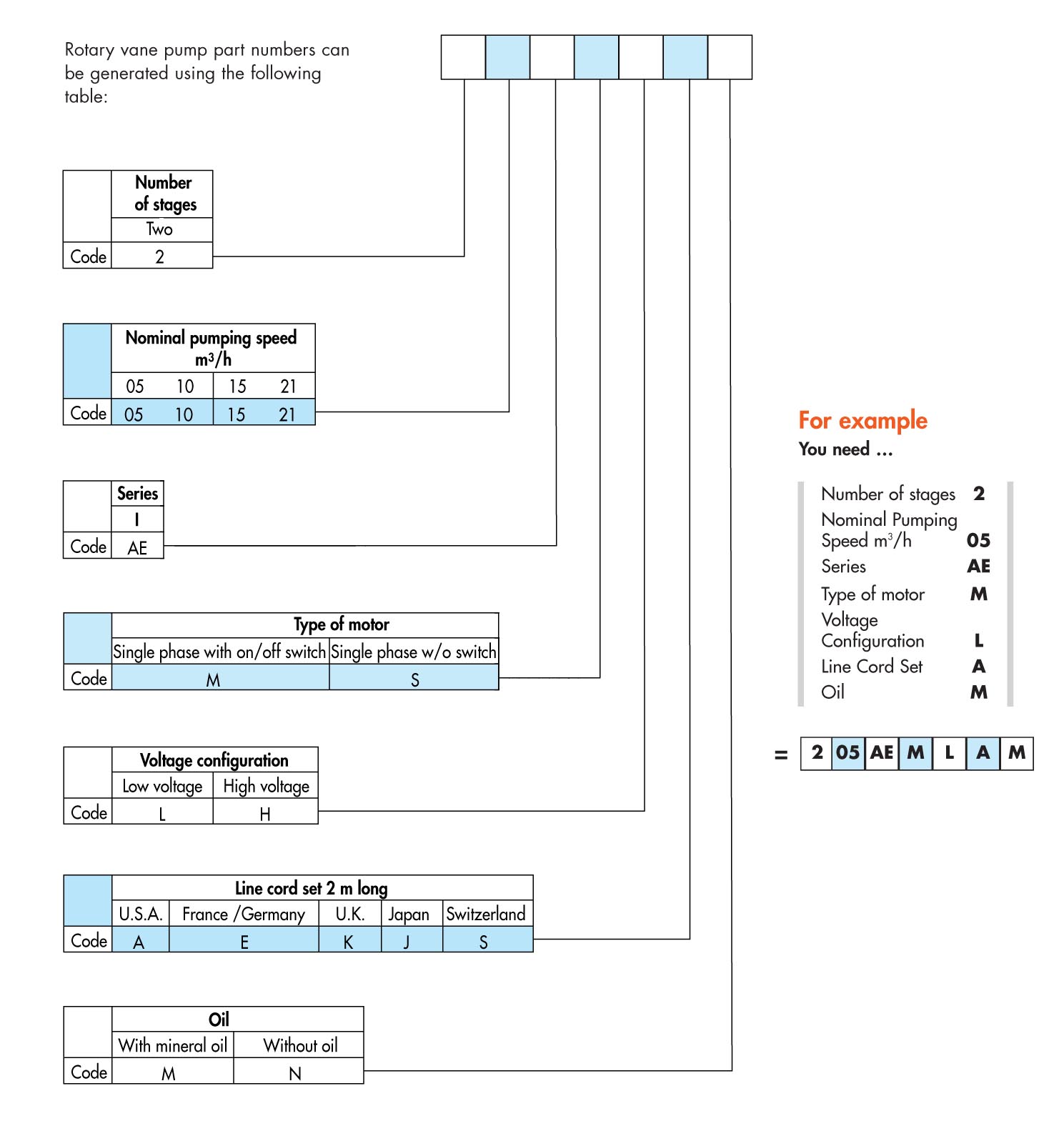

Ordering Information



---

2005 "I" Series Ordering Information

UOM=EA
Part No.	Description	est wt.	Quantity In Stock	Price	Quantity to order
205AEMLAM	2005I SERIES LOW VOLTAGE	0	0(#)	$2390.00	1
205AEMLAN	2005I SERIES LOW VOLTAGE	0	0(#)	$2390.00	1
205AEMLEM	2005I SERIES LOW VOLTAGE	0	0(#)	$2390.00	1
205AEMLEN	2005I SERIES LOW VOLTAGE	0	0(#)	$2390.00	1
205AEMLKM	2005I SERIES LOW VOLTAGE	0	0(#)	$2390.00	1
205AEMLKN	2005I SERIES LOW VOLTAGE	0	0(#)	$2390.00	1
205AEMLJM	2005I SERIES LOW VOLTAGE	0	0(#)	$2390.00	1
205AEMLJN	2005I SERIES LOW VOLTAGE	0	0(#)	$2390.00	1
205AEMHAM	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AEMHAN	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AEMHEM	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AEMHEN	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AEMHKM	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AEMHKN	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AEMHJM	2005ISERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AEMHJN	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AEMHSM	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AEMHSN	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AESLAM	2005I SERIES LOW VOLTAGE	0	0(#)	$2390.00	1
205AESLAN	2005I SERIES LOW VOLTAGE	0	0(#)	$2390.00	1
205AESLEM	2005I SERIES LOW VOLTAGE	0	0(#)	$2390.00	1
205AESLEN	2005I SERIES LOW VOLTAGE	0	0(#)	$2390.00	1
205AESLKM	2005I SERIES LOW VOLTAGE	0	0(#)	$2390.00	1
205AESLKN	2005I SERIES LOW VOLTAGE	0	0(#)	$2390.00	1
205AESLJM	2005I SERIES LOW VOLTAGE	0	0(#)	$2390.00	1
205AESLJN	2005I SERIES LOW VOLTAGE	0	0(#)	$2390.00	1
205AESHAM	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AESHAN	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AESHEM	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AESHEN	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AESHKM	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AESHKN	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AESHJM	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AESHJN	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AESHSM	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
205AESHSN	2005I SERIES HIGH VOLTAGE	0	0(#)	$2390.00	1
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

---

2010 "I" Series Ordering Information

UOM=EA
Part No.	Description	est wt.	Quantity In Stock	Price	Quantity to order
210AEMLAM	2010I SERIES LOW VOLTAGE	0	0(#)	$2690.00	1
210AEMLAN	2010I SERIES LOW VOLTAGE	0	0(#)	$2690.00	1
210AEMLEM	2010I SERIES LOW VOLTAGE	0	0(#)	$2690.00	1
210AEMLEN	2010I SERIES LOW VOLTAGE	0	0(#)	$2690.00	1
210AEMLKM	2010I SERIES LOW VOLTAGE	0	0(#)	$2690.00	1
210AEMLKN	2010I SERIES LOW VOLTAGE	0	0(#)	$2690.00	1
210AEMLJM	2010I SERIES LOW VOLTAGE	0	0(#)	$2690.00	1
210AEMLJN	2010I SERIES LOW VOLTAGE	0	0(#)	$2690.00	1
210AEMHAM	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AEMHAN	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AEMHEM	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AEMHEN	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AEMHKM	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AEMHKN	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AEMHJM	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AEMHJN	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AEMHSM	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AEMHSN	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AESLAM	2010I SERIES LOW VOLTAGE	0	0(#)	$2690.00	1
210AESLAN	2010I SERIES LOW VOLTAGE	0	0(#)	$2690.00	1
210AESLEM	2010I SERIES LOW VOLTAGE	0	0(#)	$2690.00	1
210AESLEN	2010I SERIES LOW VOLTAGE	0	0(#)	$2690.00	1
210AESLKM	2010I SERIES LOW VOLTAGE	0	0(#)	$2690.00	1
210AESLKN	2010I SERIES LOW VOLTAGE	0	0(#)	$2690.00	1
210AESLJM	2010I SERIES LOW VOLTAGE	0	0(#)	$2690.00	1
210AESLJN	2010I SERIES LOW VOLTAGE	0	0(#)	$2690.00	1
210AESHAM	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AESHAN	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AESHEM	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AESHEN	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AESHKM	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AESHKN	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AESHJM	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AESHJN	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AESHSM	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
210AESHSN	2010I SERIES HIGH VOLTAGE	0	0(#)	$2690.00	1
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

---

2015 "I" Series Ordering Information

UOM=EA
Part No.	Description	est wt.	Quantity In Stock	Price	Quantity to order
215AEMLAM	2015I SERIES LOW VOLTAGE	0	0(#)	$3180.00	1
215AEMLAN	2015I SERIES LOW VOLTAGE	0	0(#)	$3180.00	1
215AEMLEM	2015I SERIES LOW VOLTAGE	0	0(#)	$3180.00	1
215AEMLEN	2015I SERIES LOW VOLTAGE	0	0(#)	$3180.00	1
215AEMLKM	2015I SERIES LOW VOLTAGE	0	0(#)	$3180.00	1
215AEMLKN	2015I SERIES LOW VOLTAGE	0	0(#)	$3180.00	1
215AEMLJM	2015I SERIES LOW VOLTAGE	0	0(#)	$3180.00	1
215AEMLJN	2015I SERIES LOW VOLTAGE	0	0(#)	$3180.00	1
215AEMHAM	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AEMHAN	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AEMHEM	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AEMHEN	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AEMHKM	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AEMHKN	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AEMHJM	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AEMHJN	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AEMHSM	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AEMHSN	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AESLAM	2015I SERIES LOW VOLTAGE	0	0(#)	$3180.00	1
215AESLAN	2015I SERIES LOW VOLTAGE	0	0(#)	$3180.00	1
215AESLEM	2015I SERIES LOW VOLTAGE	0	0(#)	$3180.00	1
215AESLEN	2015I SERIES LOW VOLTAGE	0	0(#)	$3180.00	1
215AESLKM	2015I SERIES LOW VOLTAGE	0	0(#)	$3180.00	1
215AESLKN	2015I SERIES LOW VOLTAGE	0	0(#)	$3180.00	1
215AESLJM	2015I SERIES LOW VOLTAGE	0	0(#)	$3180.00	1
215AESLJN	2015I SERIES LOW VOLTAGE	0	0(#)	$3180.00	1
215AESHAM	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AESHAN	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AESHEM	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AESHEN	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AESHKM	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AESHKN	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AESHJM	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AESHJN	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AESHSM	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
215AESHSN	2015I SERIES HIGH VOLTAGE	0	0(#)	$3180.00	1
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

---

2021 "I" Series Ordering Information

UOM=EA
Part No.	Description	est wt.	Quantity In Stock	Price	Quantity to order
221AEMLAM	2021I SERIES LOW VOLTAGE	0	0(#)	$3810.00	1
221AEMLAN	2021I SERIES LOW VOLTAGE	0	0(#)	$3810.00	1
221AEMLEM	2021I SERIES LOW VOLTAGE	0	0(#)	$3810.00	1
221AEMLEN	2021I SERIES LOW VOLTAGE	0	0(#)	$3810.00	1
221AEMLKM	2021I SERIES LOW VOLTAGE	0	0(#)	$3810.00	1
221AEMLKN	2021I SERIES LOW VOLTAGE	0	0(#)	$3810.00	1
221AEMLJM	2021I SERIES LOW VOLTAGE	0	0(#)	$3810.00	1
221AEMLJN	2021I SERIES LOW VOLTAGE	0	0(#)	$3810.00	1
221AEMHAM	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AEMHAN	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AEMHEM	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AEMHEN	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AEMHKM	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AEMHKN	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AEMHJM	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AEMHJN	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AEMHSM	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AEMHSN	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AESLAM	2021I SERIES LOW VOLTAGE	0	0(#)	$3810.00	1
221AESLAN	2021I SERIES LOW VOLTAGE	0	0(#)	$3810.00	1
221AESLEM	2021I SERIES LOW VOLTAGE	0	0(#)	$3810.00	1
221AESLEN	2021I SERIES LOW VOLTAGE	0	0(#)	$3810.00	1
221AESLKM	2021I SERIES LOW VOLTAGE	0	0(#)	$3810.00	1
221AESLKN	2021I SERIES LOW VOLTAGE	0	0(#)	$3810.00	1
221AESLJM	2021I SERIES LOW VOLTAGE	0	0(#)	$3810.00	1
221AESLJN	2021I SERIES LOW VOLTAGE	0	0(#)	$3810.00	1
221AESHAM	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AESHAN	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AESHEM	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AESHEN	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AESHKM	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AESHKN	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AESHJM	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AESHJN	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AESHSM	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
221AESHSN	2021I SERIES HIGH VOLTAGE	0	0(#)	$3810.00	1
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.

Other pages linking here:
• Vacuum Pumps and Supplies from SIS
back to top
Send comments on this page

Contacting our Customer Service Department--comments, questions, or anything can't find?
Call, e-mail, FAX, or type your comments below:
Contact details (optional, but required for us to reply or quote):
Name:		Organization/Country:
Email:		Phone/fax:
Regular business hours - 8:00 AM to 5:30 PM EST, M-F. E-mail replies normally expected within one business day.
PHONE: (908)788-5550;   FAX: (908)806-6631;   E-MAIL:

WEB: www.sisweb.com
ADDRESS: Scientific Instrument Services, 1027 Old York Rd., Ringoes, NJ 08551-1054.
© 1996-2010 Scientific Instrument Services, Inc. [ Terms | Trademarks | Privacy ]
